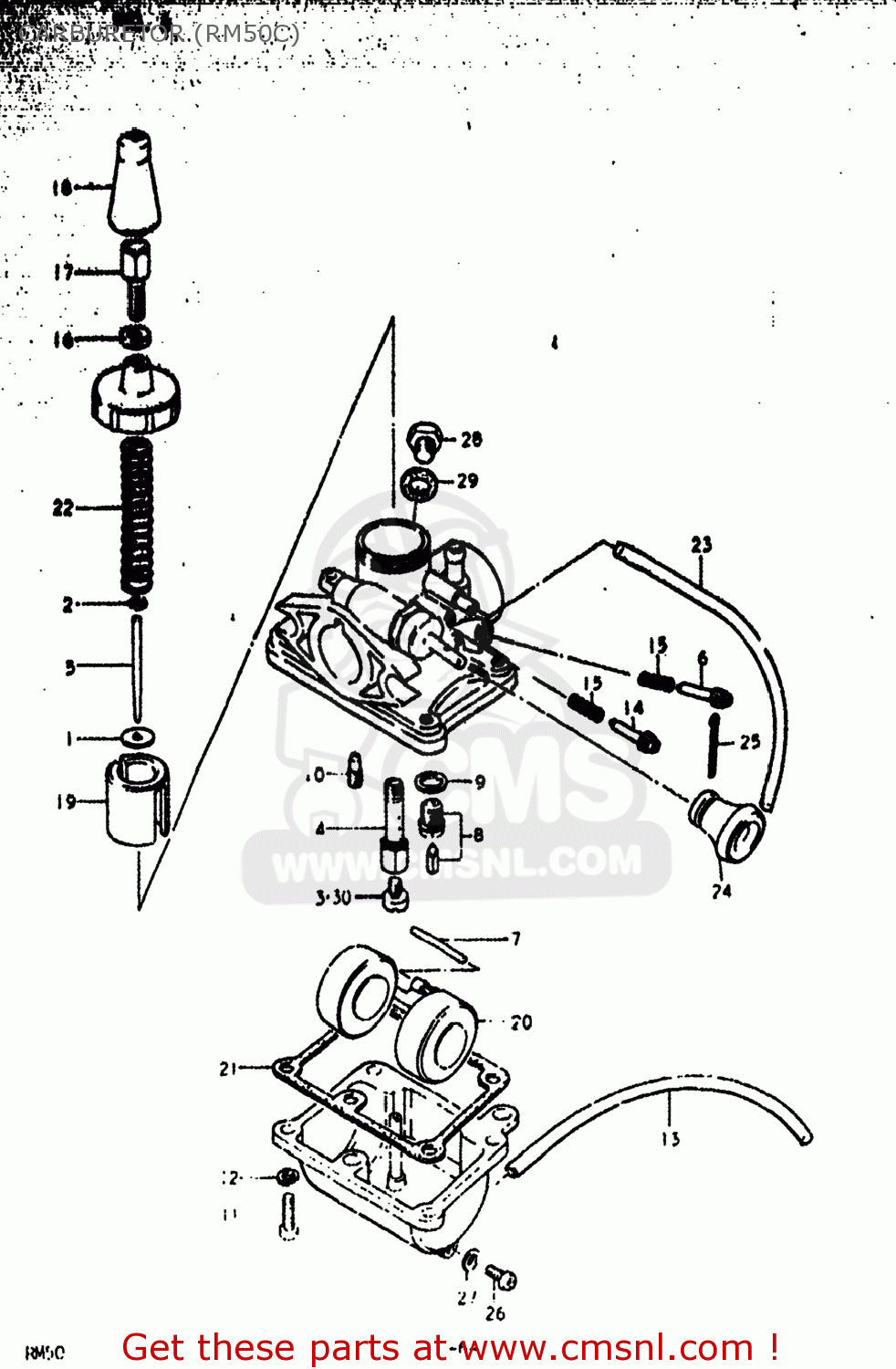

CARBURETOR (RM50C)

ref

part #

description

quantity

0

1320046610
ref: 0

CARBURETOR ASSEMBLY

€ 0.00

1

1358146110
ref: 1

PLATE,THROTTLE VALVE

€ 3.50

2

1339446110
ref: 2

CLIP,NEEDLE

€ 1.00

3

0949180008
ref: 3

JET,MAIN

€ 9.00

4

0949400131
ref: 4

JET,NEEDLE

€ 7.50

5

1338319011
ref: 5
13383-04110

NEEDLE JET

€ 22.50

6

1326904010
ref: 6

SCREW,AIR

€ 10.00

7

1325420010
ref: 7

PIN,FLOAT

€ 3.00

8

1337035620
ref: 8
13370-43011

VALVE ASSEMBLY,NEEDLE

€ 43.00

9

1339201010
ref: 9

GASKET,NEEDLE VALVE (NAS)

€ 2.50

10

0949220006
ref: 10

JET,PILOT

€ 9.00

11

0211204168
ref: 11
02112-0416A

SCREW

€ 1.00

12

0832121048
ref: 12
08321-0104A

LOCK WASHER

€ 2.00

13

1368430650
ref: 13
13684-40A00

HOSE

€ 7.50

14

1326701010
ref: 14

SCREW,THROTTLE STOP

€ 6.00

15

1326801010
ref: 15

SPRING

€ 3.50

16

1366116600
ref: 16

NUT

€ 5.00

17

1357703010
ref: 17
13577-48110

ADJUSTER,CABLE

€ 8.00

18

1368116601
ref: 18

CAP

€ 7.00

19

1355145110
ref: 19

VALVE,THROTTLE

€ 0.00

20

1325246110
ref: 20

FLOAT

€ 24.00

21

1325146110
ref: 21

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

22

1357346110
ref: 22

SPRING,THROTTLE VALVE

€ 3.50

23

1368346110
ref: 23
09352-30503-600

HOSE

€ 8.00

24

1341325710
ref: 24

LEVER

€ 8.50

25

0411116158
ref: 25
04111-1620A

COTTER PIN

€ 2.00

26

0211205088
ref: 26
02112-05087

SCREW

€ 2.00

27

1352346110
ref: 27

GASKET,DRAIN PLUG (NAS)

€ 3.00

28

1366418654
ref: 28

BOLT

€ 10.50

29

1366331010
ref: 29

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

30-1

0949182002
ref: 30-1
09491-82003

JET

€ 8.50

30-2

0949185004
ref: 30-2
09491-85008

JET

€ 8.50

30-3

0949187001
ref: 30-3
09491-87005

JET

€ 6.50

30-4

0949190003
ref: 30-4
09491-90007

JET

€ 10.50

30-5

0949197001
ref: 30-5
09491-97003

JET

€ 8.50

all assemblies
