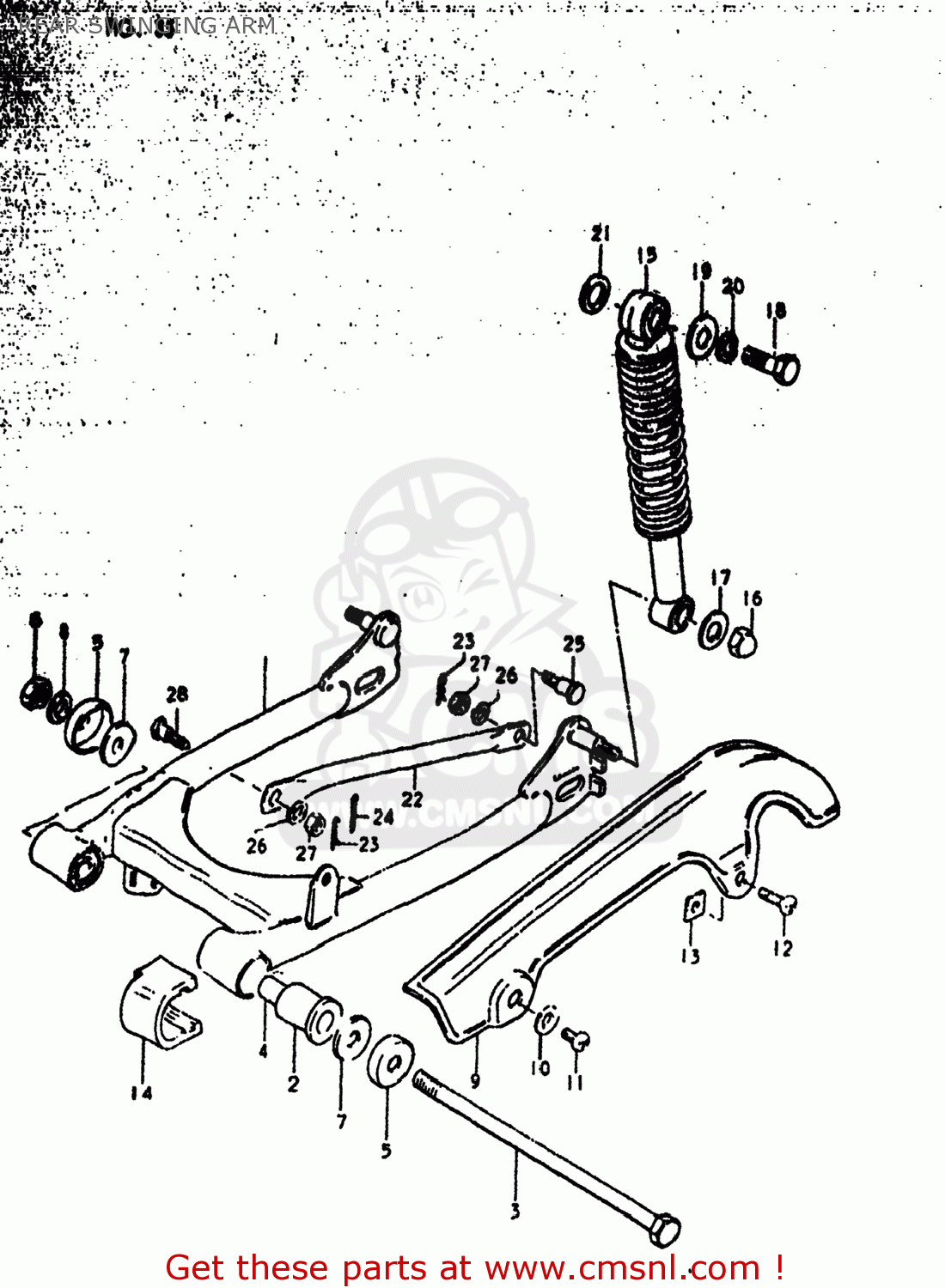

REAR SWINGING ARM

ref

part #

description

quantity

1-1

611014681008C
ref: 1-1
61101-46811-08C

SWING ARM ASSEMBLY,REAR

€ 179.50

1-2

611014681108C
ref: 1-2

SWING ARM ASSEMBLY,REAR

€ 179.50

2

0930718003
ref: 2

BUSHING

€ 9.50

3

6121125300
ref: 3

SHAFT, PIVOT

€ 6.00

4

6125146910
ref: 4

SPACER,RR SWGARM PIVOT

€ 14.00

5

6126246910
ref: 5

COVER,REAR SWING ARM DUST

€ 7.50

6

0831921108
ref: 6
09159-10027

NUT

€ 3.00

7

0916010052
ref: 7

WASHER (10.2X28X1.5)

€ 3.00

7

0916010052
ref: 7

WASHER (10.2X28X1.5)

€ 3.00

8

0832221108
ref: 8
08322-01107

WASHER

€ 2.50

9

6131146601019
ref: 9

CASE,CHAIN

€ 35.00

10

0916906010
ref: 10

WASHER

€ 3.00

11

0211206088
ref: 11
02112-06087

SCREW

€ 2.00

12

0211206128
ref: 12
02112-06127

SCREW 6X12

€ 2.00

13

6131643000
ref: 13

NUT,CHAIN CASE RR

€ 3.00

14

6127346630
ref: 14
61273-46631

BUFFER,CHAIN TOUCH DEFLECTOR

€ 5.00

15

6210046620
ref: 15
62100-46440

ABSORBER ASSEMBLY,REAR SHOCK

€ 0.00

16

0831311108
ref: 16
08313-10107

NUT, LOWER LH

€ 2.50

17

0916010001
ref: 17
09160-10093

WASHER

€ 2.00

18

0110706128
ref: 18
01500-06127

BOLT

€ 2.00

19

0916006004
ref: 19
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

20

0832121068
ref: 20
08321-01067

LOCK WASHER

€ 2.50

21

0916012006
ref: 21
09160-12089

WASHER

€ 2.00

22

6431146610
ref: 22
64311-46600-08C

TORQUE LINK,REAR

€ 5.00

23

0938510001
ref: 23
09385-10005

CLIP

€ 1.50

24

0411116158
ref: 24
04111-1620A

COTTER PIN

€ 2.00

25

0911108013
ref: 25

BOLT(8X26.5)

€ 3.00

26

0832121088
ref: 26
08321-01087

LOCK WASHER

€ 2.00

27

0914008008
ref: 27

NUT

€ 1.50

28

0911108015
ref: 28

BOLT(8X22)

€ 3.00
