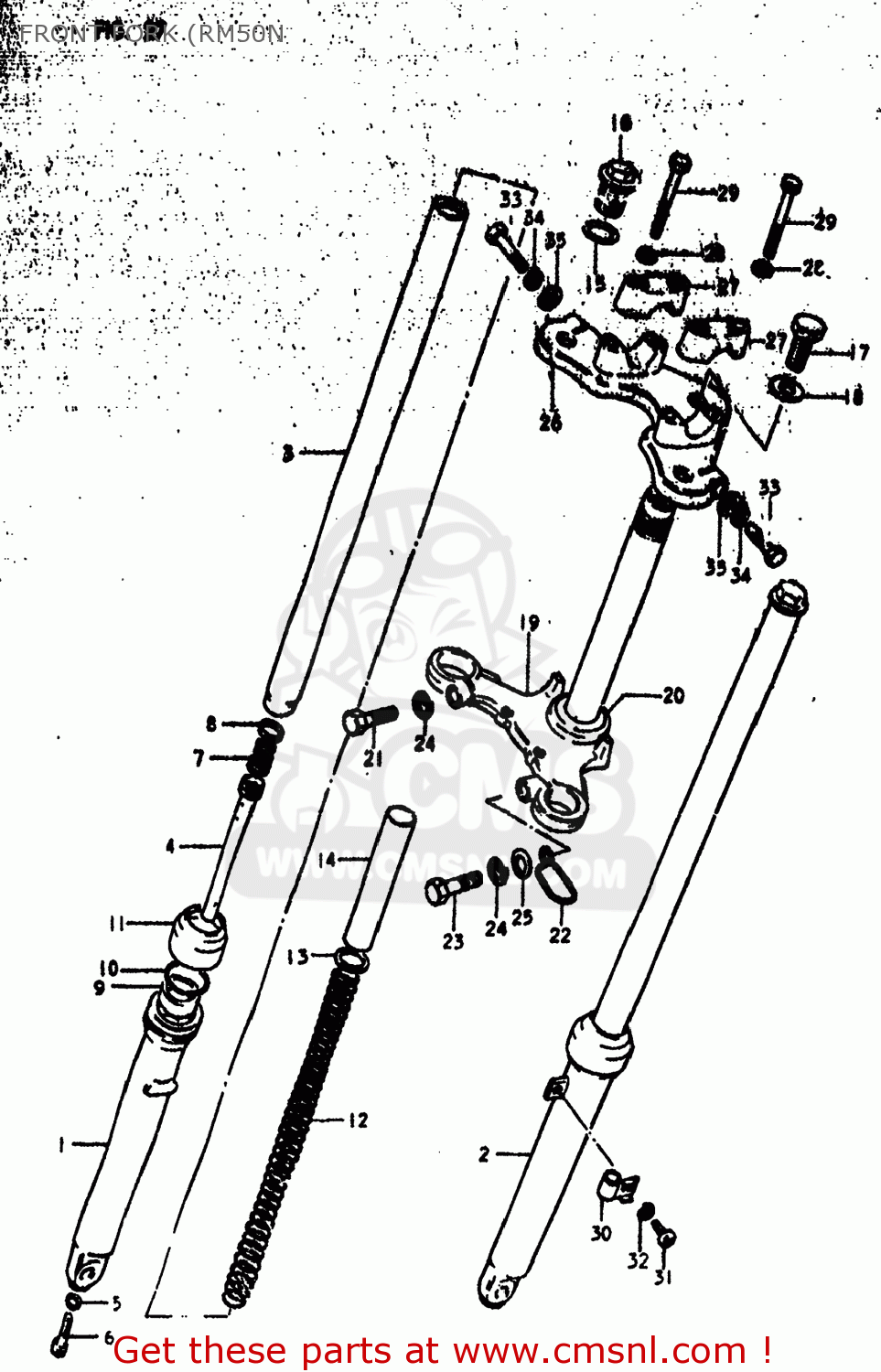

FRONT FORK (RM50N

ref

part #

description

quantity

0

511004668008C
ref: 0

DAMPER SET

€ 0.00

1

5113146680
ref: 1
51131-46684

TUBE,OUTER,RIGHT

€ 43.00

2

5114146680
ref: 2
51141-46684

TUBE,OUTER,LEFT

€ 31.50

3

5111046400
ref: 3

TUBE,FORK,INNER

€ 113.50

4

5114646680
ref: 4

CYLINDER,FRONT FORK

€ 0.00

5

5114831030
ref: 5
51148-36011

GASKET (NAS)

€ 4.00

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5117746100
ref: 7

SPRING,REBOUND

€ 3.50

8

5119646100
ref: 8

RING,PISTON

€ 6.00

9

5115346100
ref: 9
51153-03400

OIL SEAL,FRONT FORK

€ 10.50

10

5115646100
ref: 10
51156-48130

CIRCLIP,FORK OIL SEAL

€ 3.50

11

5157146100
ref: 11

DUST SEAL

€ 6.00

12

5117146680
ref: 12

SPRING

€ 0.00

13

5119246100
ref: 13

JOINT,SPRING

€ 2.50

14

5117646100
ref: 14

SPACER,SPRING

€ 6.50

15

5118146190
ref: 15
09280-18004

O-RING,FORK INNER TUBE

€ 5.50

16

5135146680
ref: 16

CAP,FORK

€ 0.00

17

5135246030
ref: 17

BOLT

€ 6.00

18

5135646030
ref: 18

WASHER(10.5X30X2.3)

€ 5.00

19

514104668008C
ref: 19

STEM,STEERING

€ 0.00

20

5162133001
ref: 20

RACE,STEERING OUTER LWR

€ 10.00

21

0110710308
ref: 21
01500-1030A

BOLT 10X30

€ 3.00

22

5145546030
ref: 22

CLAMP,METER CABLE

€ 2.50

23

0110710358
ref: 23
01500-1035B

BOLT,M10X1.25X

€ 2.50

24

0832121108
ref: 24
08321-01107

LOCK WASHER

€ 2.00

25

0832211108
ref: 25
08322-01107

WASHER

€ 2.50

26

513114668008C
ref: 26

HEAD,STEERING STEM

€ 0.00

27

562114668008C
ref: 27

HOLDER,HANDLEBAR

€ 9.50

28

0832121088
ref: 28
08321-01087

LOCK WASHER

€ 2.00

29

0110708358
ref: 29
01500-0835B

BOLT

€ 3.50

30

5145246030
ref: 30
51452-46040

CLIP,CABLE

€ 5.50

31

0211204128
ref: 31
02112-0412A

SCREW

€ 1.50

32

0832121048
ref: 32
08321-0104A

LOCK WASHER

€ 2.00

33

0110708408
ref: 33
01500-0840A

BOLT 8X40

€ 3.00

34

0832121088
ref: 34
08321-01087

LOCK WASHER

€ 2.00

35

0832221088
ref: 35
08322-01087

WASHER

€ 2.00

all assemblies
