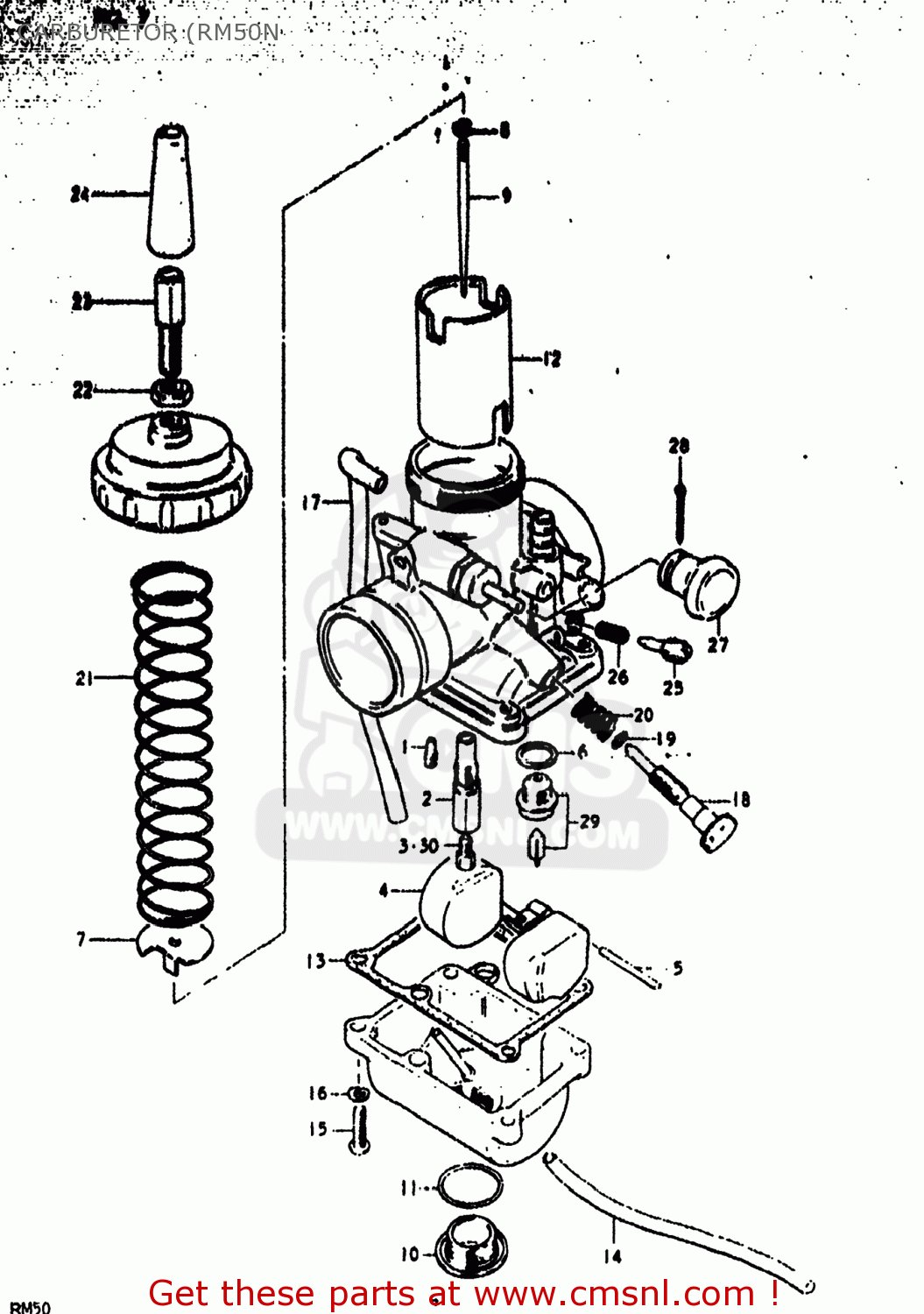

CARBURETOR (RM50N

ref

part #

description

quantity

0

1320046620
ref: 0

CARBURETOR ASSEMBLY

€ 114.50

1

0949217004
ref: 1

JET,PILOT (17.5)

€ 8.00

2

0949400244
ref: 2

JET,NEEDLE

€ 0.00

3

0949121013
ref: 3

JET, MAIN

€ 10.00

4

1325246410
ref: 4

FLOAT

€ 16.00

5

1325401010
ref: 5

PIN,FLOAT

€ 3.00

6

1339201010
ref: 6

GASKET,NEEDLE VALVE (NAS)

€ 2.50

7

1358109210
ref: 7

STOPPER,NEEDLE CLIP

€ 5.50

8

1339410010
ref: 8

CLIP

€ 4.50

9

1338346620
ref: 9

NEEDLE JET

€ 0.00

10

1324732210
ref: 10

SCREW,GUIDE

€ 13.00

11

1329440110
ref: 11
09280-20003

O-RING

€ 2.50

12

1355146620
ref: 12

VALVE,THROTTLE

€ 0.00

13

1325146010
ref: 13

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

14

1368430650
ref: 14
13684-40A00

HOSE

€ 7.50

15

0211204168
ref: 15
02112-0416A

SCREW

€ 1.00

16

0832121048
ref: 16
08321-0104A

LOCK WASHER

€ 2.00

17

1368430650
ref: 17
13684-40A00

HOSE

€ 7.50

18

1326746010
ref: 18
13267-36A00

ADJUSTER

€ 10.00

19

1329430010
ref: 19
13278-02340

O-RING

€ 1.50

20

1326846010
ref: 20

SPRING

€ 3.50

21

1357336110
ref: 21

SPRING,THROTTLE VALVE

€ 3.00

22

1366116600
ref: 22

NUT

€ 5.00

23

1357798011
ref: 23

ADJUSTER

€ 0.00

24

1368133010
ref: 24

CAP,CABLE ADJUSTER

€ 8.00

25

1326995110
ref: 25

SCREW,PILOT AIR

€ 8.50

26

1326895110
ref: 26
13268-35010

SPRING

€ 3.00

27

1341325710
ref: 27

LEVER

€ 8.50

28

0411116158
ref: 28
04111-1620A

COTTER PIN

€ 2.00

29

1337023010
ref: 29

VALVE ASSY,NEEDLE

€ 34.00

30-1

0949120002
ref: 30-1

JET,MAIN(100)

€ 7.00

30-2

0949122003
ref: 30-2

JET,MAIN 110

€ 7.50

30-3

0949123008
ref: 30-3
09491-23010

JET

€ 5.50

30-4

0949124002
ref: 30-4
09491-24014

JET

€ 8.00

30-5

0949125004
ref: 30-5
09491-25009

JET

€ 5.50

all assemblies
