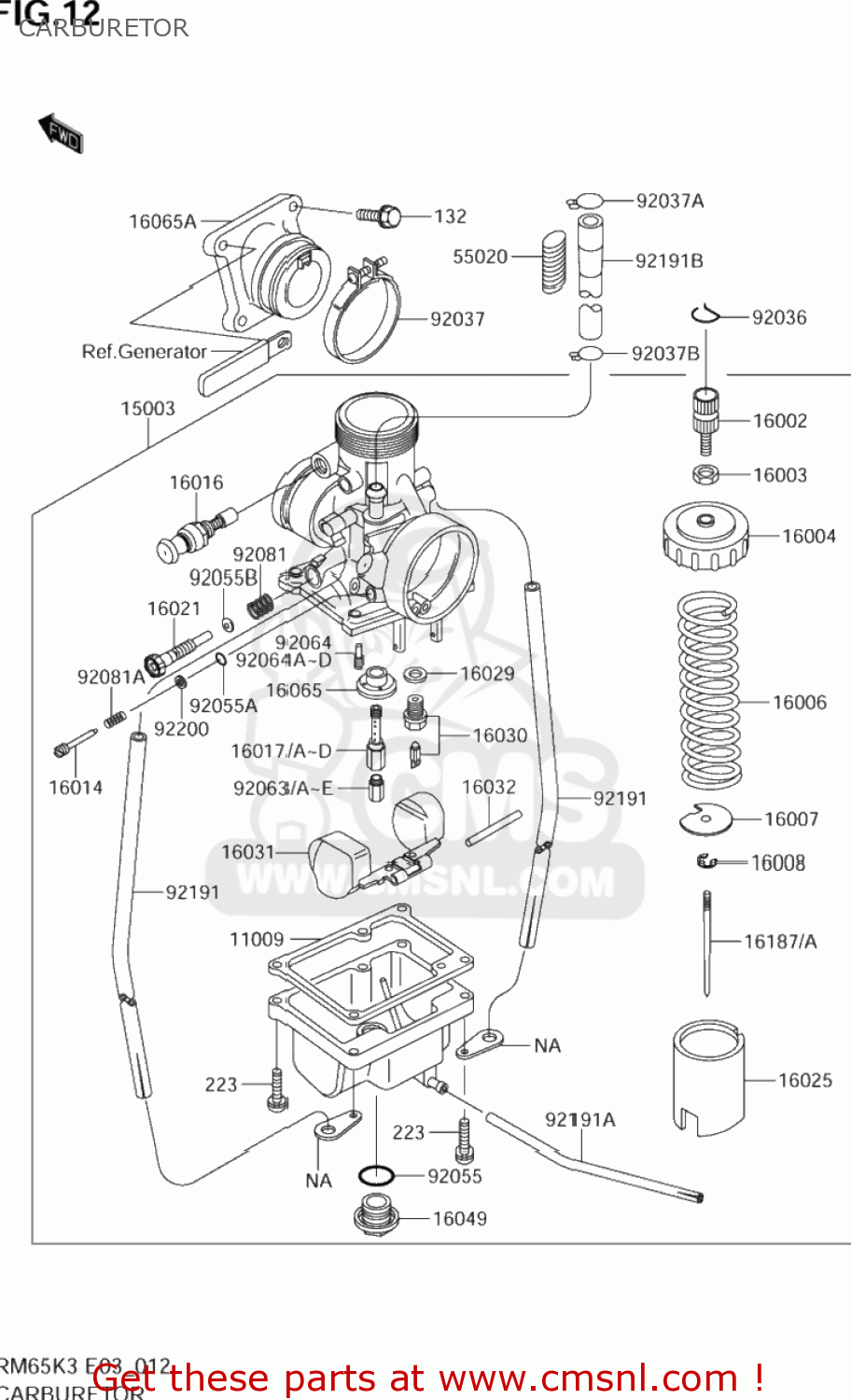

CARBURETOR

ref

part #

description

quantity

132

KK132G0620
ref: 132
K132B-A0620

BOLT FLANGED S

€ 1.50

223

KK223D0416
ref: 223

SCREW-PAN-WS-CROS

€ 1.50

11009

K110091147
ref: 11009

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

15003

K150031669
ref: 15003

CARBURETOR-ASSY

€ 118.50

16002

KK16002011
ref: 16002

ADJUSTER-CABLE

€ 8.50

16003

KK16003006
ref: 16003

NUT,ADJUST LOCK

€ 4.00

16004

KK16004025
ref: 16004

CAP-CHAMBER

€ 16.00

16006

KK16006023
ref: 16006

SPRING,THROTTLE VALVE

€ 7.00

16007

KK16007023
ref: 16007

SEAT-SPRING,THROTTLE VALVE

€ 5.50

16008

K160081010
ref: 16008

CLAMP

€ 2.00

16014

K160141116
ref: 16014

SCREW-PILOT AIR

€ 10.50

16016

K160161052
ref: 16016
K1601-60008

PLUNGER,STARTE

€ 26.50

16017

K160171412
ref: 16017

JET-NEEDLE,N-8

€ 27.00

16017A

K160171413
ref: 16017A

JET-NEEDLE,O-0

€ 29.50

16017B

K160171414
ref: 16017B

JET NEEDLE,O-0

€ 27.50

16017C

K160171415
ref: 16017C

JET NEEDLE,O-4

€ 30.50

16017D

K160171418
ref: 16017D

JET,NEEDLE,O-6

€ 27.50

16021

K160211224
ref: 16021

SCREW-THROTTLE STOP

€ 10.50

16025

K160251040
ref: 16025

VALVE-THROTTLE,CA1.5

€ 27.00

16029

KK16029004
ref: 16029

GASKET,FLOAT VALVE SEAT (NAS)

€ 2.50

16030

K160301095
ref: 16030

VALVE-FLOAT,#2.5

€ 33.00

16031

K160311005
ref: 16031

FLOAT

€ 35.00

16032

KK16032008
ref: 16032

PIN,FLOAT

€ 3.50

16049

K160491001
ref: 16049

COVER MAIN JET

€ 15.50

16065

K160651020
ref: 16065

HOLDER,JET NEEDLE

€ 11.50

16065A

K160651366
ref: 16065A

HOLDER-CARBURETOR

€ 61.00

16187

K161871226
ref: 16187

NEEDLE-JET,5GSP68

€ 23.00

16187A

K161871227
ref: 16187A

NEEDLE-JET,5GSP69

€ 23.00

55020

K550201787
ref: 55020

GUARD,FUEL TUBE

€ 2.50

92036

KK92036018
ref: 92036

RING-SNAP

€ 3.50

92037

K920371305
ref: 92037

CLAMP

€ 7.50

92037A

KK92037147
ref: 92037A

CLAMP,TUBE

€ 8.00

92037B

K920371712
ref: 92037B

CLAMP

€ 3.00

92055

K920551061
ref: 92055

RING-O,MAIN JET COVER

€ 5.00

92055A

K920551658
ref: 92055A

RING-O,AIR SCREW

€ 3.50

92055B

K920552068
ref: 92055B

RING-O

€ 1.50

92063

KK92063019
ref: 92063

JET-MAIN,#170

€ 7.50

92063A

KK92063020
ref: 92063A

JET-MAIN,#180

€ 7.50

92063B

KK92063021
ref: 92063B

JET-MAIN,#190

€ 7.50

92063C

KK92063022
ref: 92063C

JET-MAIN,#200

€ 8.50

92063D

KK92063023
ref: 92063D

JET-MAIN,#210

€ 8.50

92063E

KK92063025
ref: 92063E

JET-MAIN,#230

€ 8.50

92064

KK92064022
ref: 92064

JET-PILOT,#30

€ 8.00

92064A

KK92064040
ref: 92064A

JET-PILOT,#22.5

€ 8.50

92064B

K920641020
ref: 92064B

JET-PILOT,#25

€ 10.50

92064C

K920641033
ref: 92064C

JET-PILOT,#27.5

€ 9.50

92064D

K920641043
ref: 92064D

JET-PILOT,#20

€ 9.50

92081

K920811152
ref: 92081

SPRING,THROTTLE ADJUST

€ 3.00

92081A

K920811153
ref: 92081A

SPRING,STOP SCREW

€ 3.00

92191

K921911495
ref: 92191

TUBE,3X5X280

€ 4.00

92191A

K921911496
ref: 92191A

TUBE,3X5X220

€ 3.50

92191B

K921911611
ref: 92191B

TUBE

€ 2.00

92200

K922001564
ref: 92200

WASHER,PILOT AIR SCREW

€ 1.50
