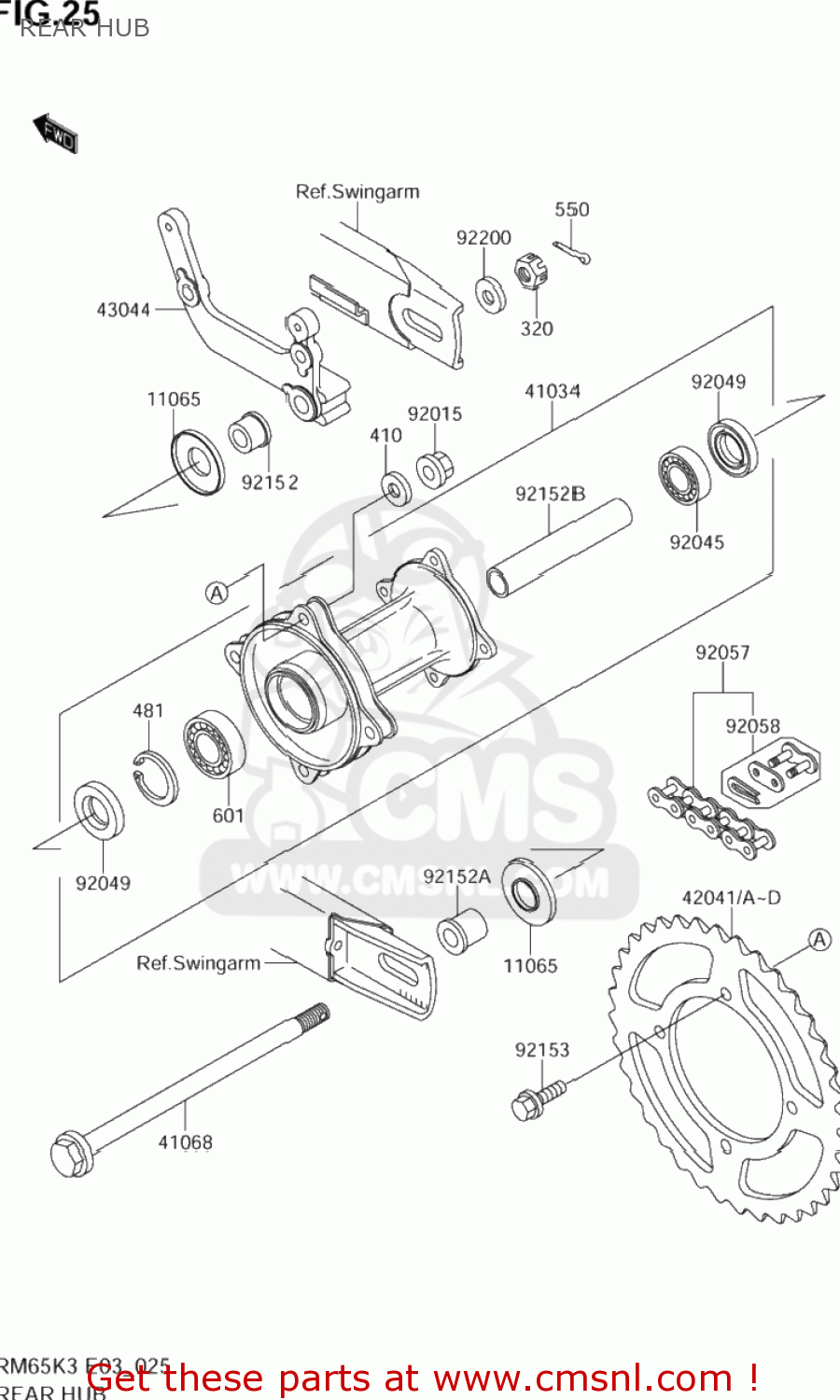

REAR HUB

ref

part #

description

quantity

320

KK320G1200
ref: 320
K9221-07501

NUT CASTLE

€ 2.00

410

KK410B0800
ref: 410
K410A-A0800

WASHER PLAIN S

€ 1.50

481

KK481J3700
ref: 481

CIRCLIP-TYPE-C,37MM

€ 1.50

550

KK550D3025
ref: 550
K550A-A3025

PIN COTTER

€ 1.50

601

KKK601B6301UU
ref: 601

BEARING-BALL,#6201UUC3

€ 16.00

11065

K110651137
ref: 11065

CAP

€ 4.00

41034

K410341303
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 195.00

41068

K410681419
ref: 41068

AXLE,RR

€ 23.50

42041

K420411526
ref: 42041

SPROCKET HUB,4

€ 57.50

42041A

K420411527
ref: 42041A

SPROCKET HUB,4

€ 59.50

42041B

K420411528
ref: 42041B

SPROCKET-HUB,47T

€ 44.00

42041C

K420411529
ref: 42041C

SPROCKET HUB,4

€ 59.50

42041D

K420411549
ref: 42041D

SPROCKET HUB,4

€ 39.00

43044

K430441127
ref: 43044

HOLDER-COMP-CALIPER,RR

€ 66.50

92015

K920151432
ref: 92015

NUT,8MM

€ 5.50

92045

K920451062
ref: 92045

BEARING-BALL,TMB201LLUC3/2A

€ 17.50

92049

K920491257
ref: 92049

SEAL-OIL,TC20376.5

€ 6.50

92057

K920571504
ref: 92057

CHAIN,DRIVE,DID420MBK1X110L

€ 34.50

92058

K920581073
ref: 92058

JOINT-CHAIN,DRIVE

€ 8.00

92152

K921521196
ref: 92152

COLLAR,AXLE,L=15.5

€ 5.50

92152A

K921521198
ref: 92152A

COLLAR,RR AXLE,L=22

€ 6.50

92152B

K921521199
ref: 92152B

COLLAR,RR BRAKE DRUM,L=89

€ 6.00

92153

K921531101
ref: 92153

BOLT,FLANGED,8X28

€ 2.50

92200

K922001004
ref: 92200

WASHER,12.3X23X2.3

€ 4.00
