GENERATOR
RM65 2005 (K5) USA (E03)

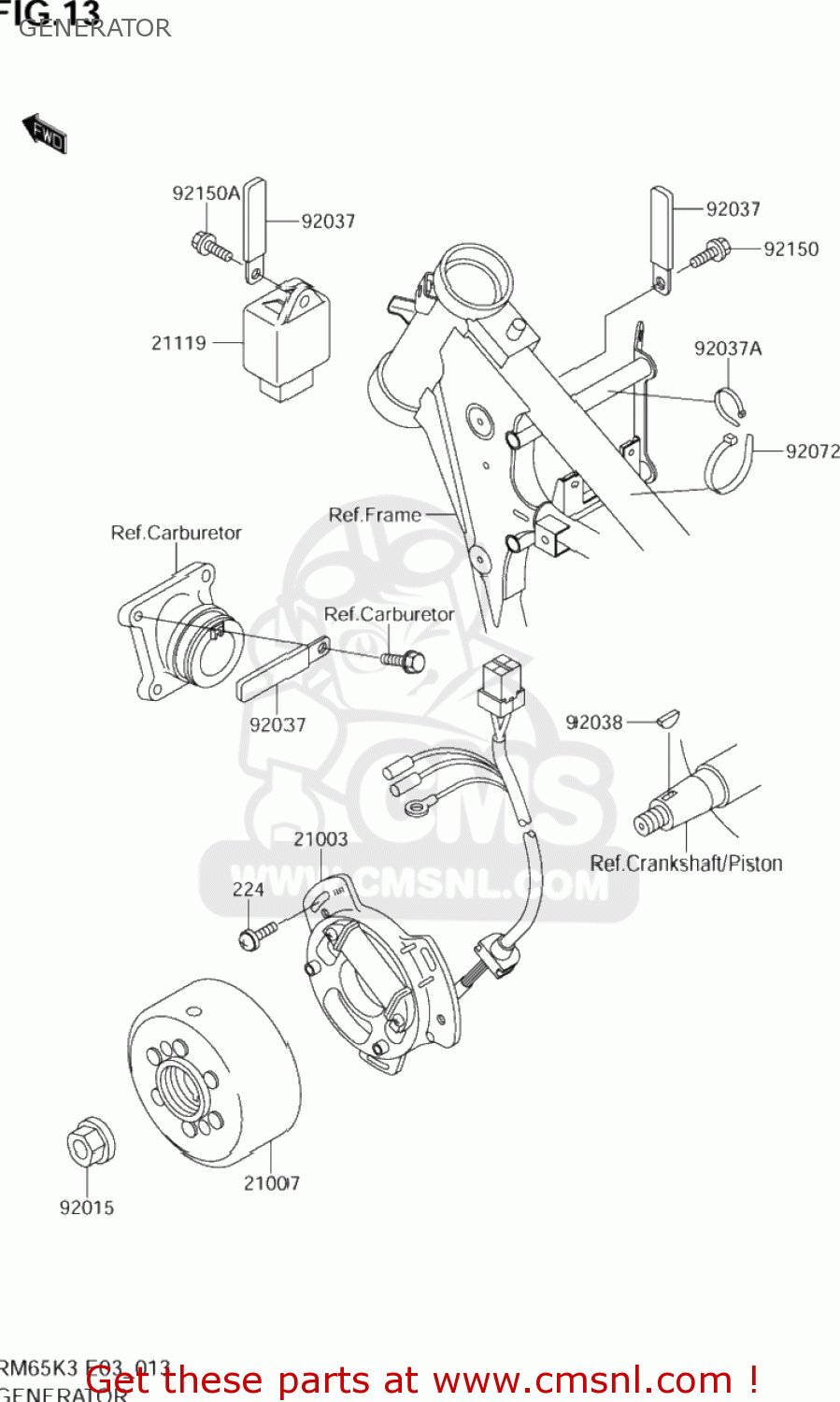

Generator diagram RM65 2005 (K5) USA (E03)
GENERATOR RM65 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
224
KK224B0514
ref: 224
K224A-A0514
SCREW-PAN-WP-CROS
€ 1.50
21003
K210031361
ref: 21003
STATOR
€ 227.00
21007
K210071364
ref: 21007
ROTOR
€ 234.00
21119
K211191551
ref: 21119
IGNITER
€ 61.50
92015
KK92015077
ref: 92015
NUT,FLANGED,10MM
€ 1.50
92037
K920371069
ref: 92037
CLAMP,L=60
€ 4.00
92037A
K920371173
ref: 92037A
CLAMP
€ 2.50
92038
KK92038001
ref: 92038
KEY,WOODRUFF
€ 3.00
92072
K920721293
ref: 92072
BAND,L=140
€ 5.50
92150
K921501435
ref: 92150
BOLT,6X12
€ 2.50
92150A
K921501599
ref: 92150A
BOLT,6X12
€ 2.50
