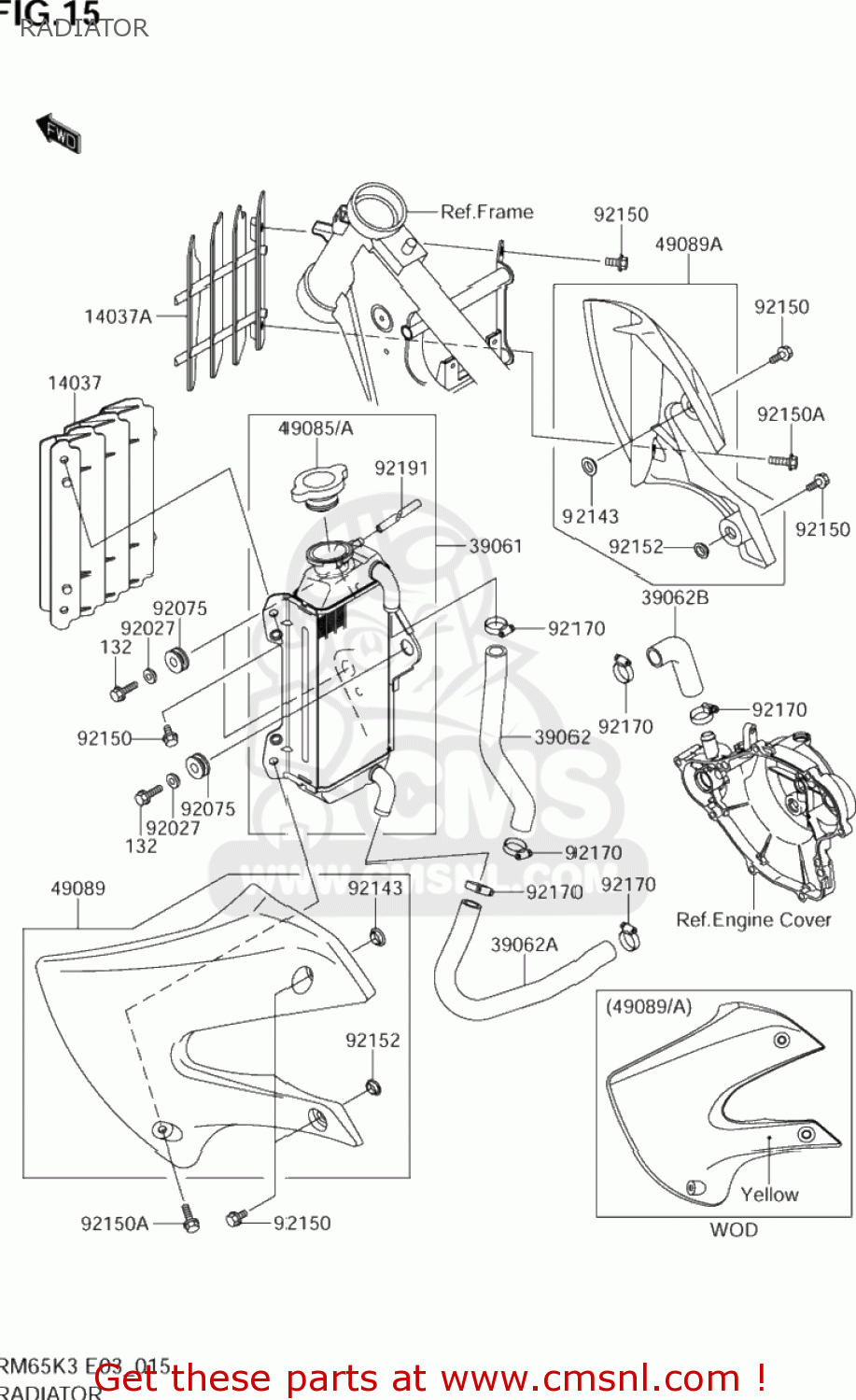

RADIATOR

ref

part #

description

quantity

132

KK132G0620
ref: 132
K132B-A0620

BOLT FLANGED S

€ 1.50

14037

KK140371266RZ
ref: 14037

SCREEN,LH

€ 11.50

14037A

KK140371274RZ
ref: 14037A
KK140-37004-7RZ

SCREEN,RH,WHIT

€ 11.50

39061

K390611277
ref: 39061

RADIATOR-ASSY

€ 311.50

39062

K390621808
ref: 39062

HOSE-COOLING,HEAD-RADIATOR

€ 12.00

39062A

K390621809
ref: 39062A

HOSE-COOLING,PUMP-RADIATOR

€ 16.00

39062B

K390621810
ref: 39062B

HOSE-COOLING,PIPE-CYLINDER

€ 7.00

49085

K490851076
ref: 49085

CAP-ASSY-PRESSURE,P1.1

€ 28.50

49085A

K490851077
ref: 49085A

CAP-ASSY-PRESSURE,P1.8

€ 44.50

49089

K490891144267
ref: 49089

SHROUD-ENGINE,LH

€ 22.00

49089A

K490891145267
ref: 49089A

SHROUD-ENGINE,RH

€ 22.00

92027

KK92027194
ref: 92027

COLLAR,L=11.1

€ 3.00

92075

KK92075209
ref: 92075

DAMPER

€ 4.00

92143

K921431196
ref: 92143

COLLAR

€ 4.50

92150

K921501435
ref: 92150

BOLT,6X12

€ 2.50

92150A

K921501892
ref: 92150A

BOLT,6X20

€ 3.50

92152

K921521235
ref: 92152

COLLAR

€ 3.50

92170

K921701283
ref: 92170

CLAMP

€ 8.00

92191

K921911434
ref: 92191

TUBE

€ 6.00

all assemblies
