FRONT FORK (RM80N)
RM80 1979 (N) USA (E03)

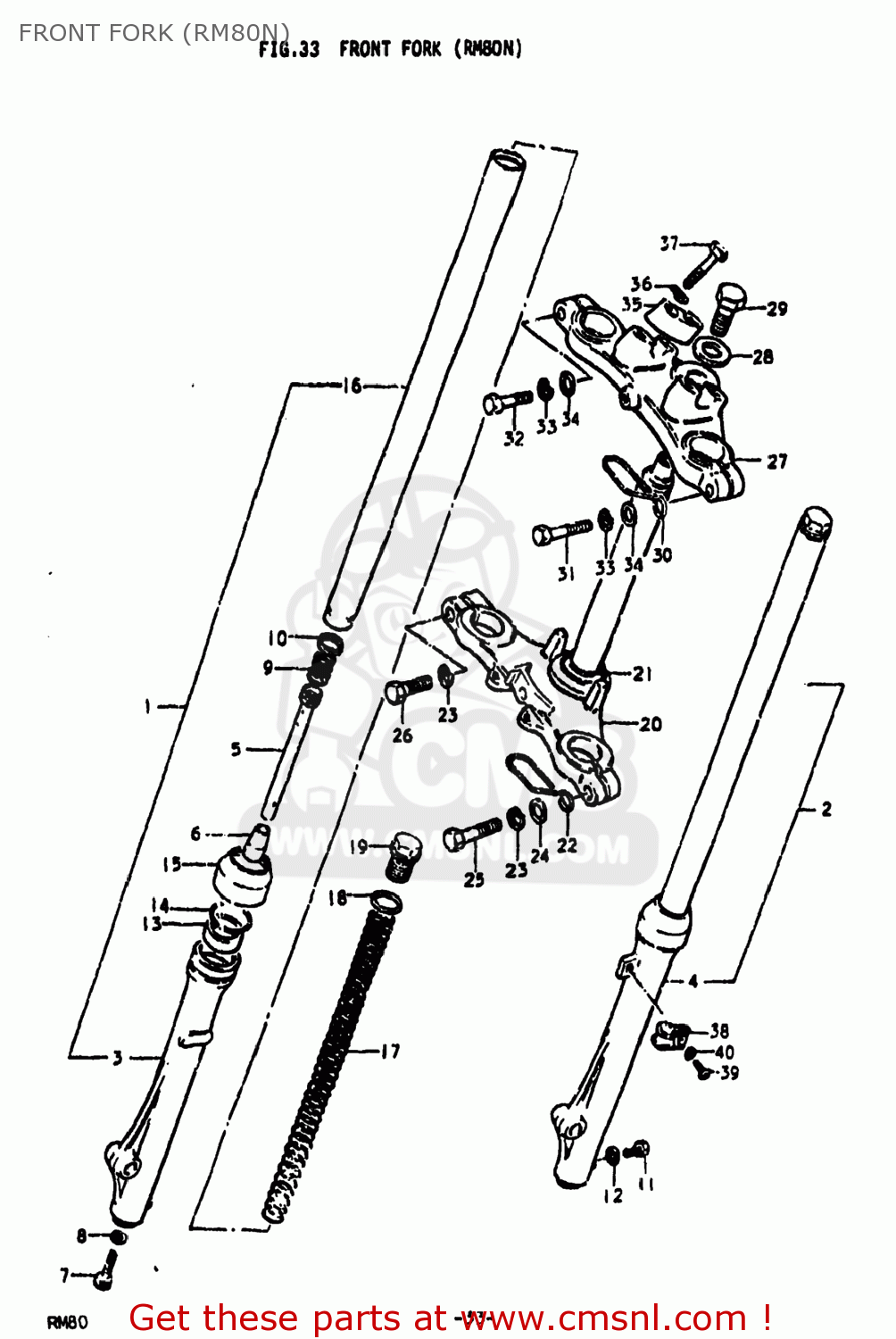

Front fork (rm80n) diagram RM80 1979 (N) USA (E03)
FRONT FORK (RM80N) RM80 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110046910
ref: 0
51100-46910-08C
DAMPER SET
€ 280.00
1
5110346910
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 109.50
2
5110446910
ref: 2
DAMPER ASSEMBLY,LEFT
€ 156.00
3
5113146910
ref: 3
TUBE,OUTER,RIGHT
€ 51.50
4
5114146910
ref: 4
TUBE,OUTER,LEFT
€ 48.50
5
5114646910
ref: 5
CYLINDER,FRONT FORK
€ 23.50
6
5119548000
ref: 6
PIECE,OIL LOCK
€ 8.50
7
5114748130
ref: 7
BOLT(8X27)
€ 3.50
8
5114831030
ref: 8
51148-36011
GASKET (NAS)
€ 4.00
9
5117736030
ref: 9
SPRING,REBOUND
€ 4.50
10
5119633130
ref: 10
RING,PISTON
€ 7.50
11
0110406088
ref: 11
BOLT
€ 2.00
12
5118331030
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 4.00
13
5115308030
ref: 13
51153-48420
OIL SEAL,FRONT FORK
€ 11.00
14
5115636030
ref: 14
51156-48730
CIRCLIP,FORK OIL SEAL
€ 2.50
15
5117325030
ref: 15
51173-20400
DUST SEAL,FRONT FORK
€ 9.00
16
5111046910
ref: 16
TUBE,FORK,INNER
€ 67.00
17
5117146910
ref: 17
SPRING
€ 14.00
18
5118125030
ref: 18
O RING
€ 3.00
19
5135148000
ref: 19
BOLT
€ 12.00
20
5141046910
ref: 20
51410-46911-08C
STEM,STEERING
€ 180.00
21
5162133001
ref: 21
RACE,STEERING OUTER LWR
€ 10.00
22
5145546030
ref: 22
CLAMP,METER CABLE
€ 2.50
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24
0832221108
ref: 24
08322-01107
WASHER
€ 2.50
25
5145127431
ref: 25
BOLT
€ 4.50
26
0110710358
ref: 26
01500-1035B
BOLT,M10X1.25X
€ 2.50
27
513114691008C
ref: 27
HEAD,STEERING STEM
€ 0.00
28
5135646030
ref: 28
WASHER(10.5X30X2.3)
€ 5.00
29
5135246030
ref: 29
BOLT
€ 6.00
30
5145546030
ref: 30
CLAMP,METER CABLE
€ 2.50
31
0110708458
ref: 31
01500-08453
BOLT 8X45
€ 2.50
32
0110708408
ref: 32
01500-0840A
BOLT 8X40
€ 3.00
33
0832121088
ref: 33
08321-01087
LOCK WASHER
€ 2.00
34
0832221088
ref: 34
08322-01087
WASHER
€ 2.00
35
562114668008C
ref: 35
HOLDER,HANDLEBAR
€ 9.50
36
0832121088
ref: 36
08321-01087
LOCK WASHER
€ 2.00
37
0110708358
ref: 37
01500-0835B
BOLT
€ 3.50
38
5145246040
ref: 38
CLIP,FR BRAKE CABLE
€ 5.50
39
0211204168
ref: 39
02112-0416A
SCREW
€ 1.00
40
0832121048
ref: 40
08321-0104A
LOCK WASHER
€ 2.00
