PISTON - CRANKSHAFT (RM80C
RM80 1979 (N) USA (E03)

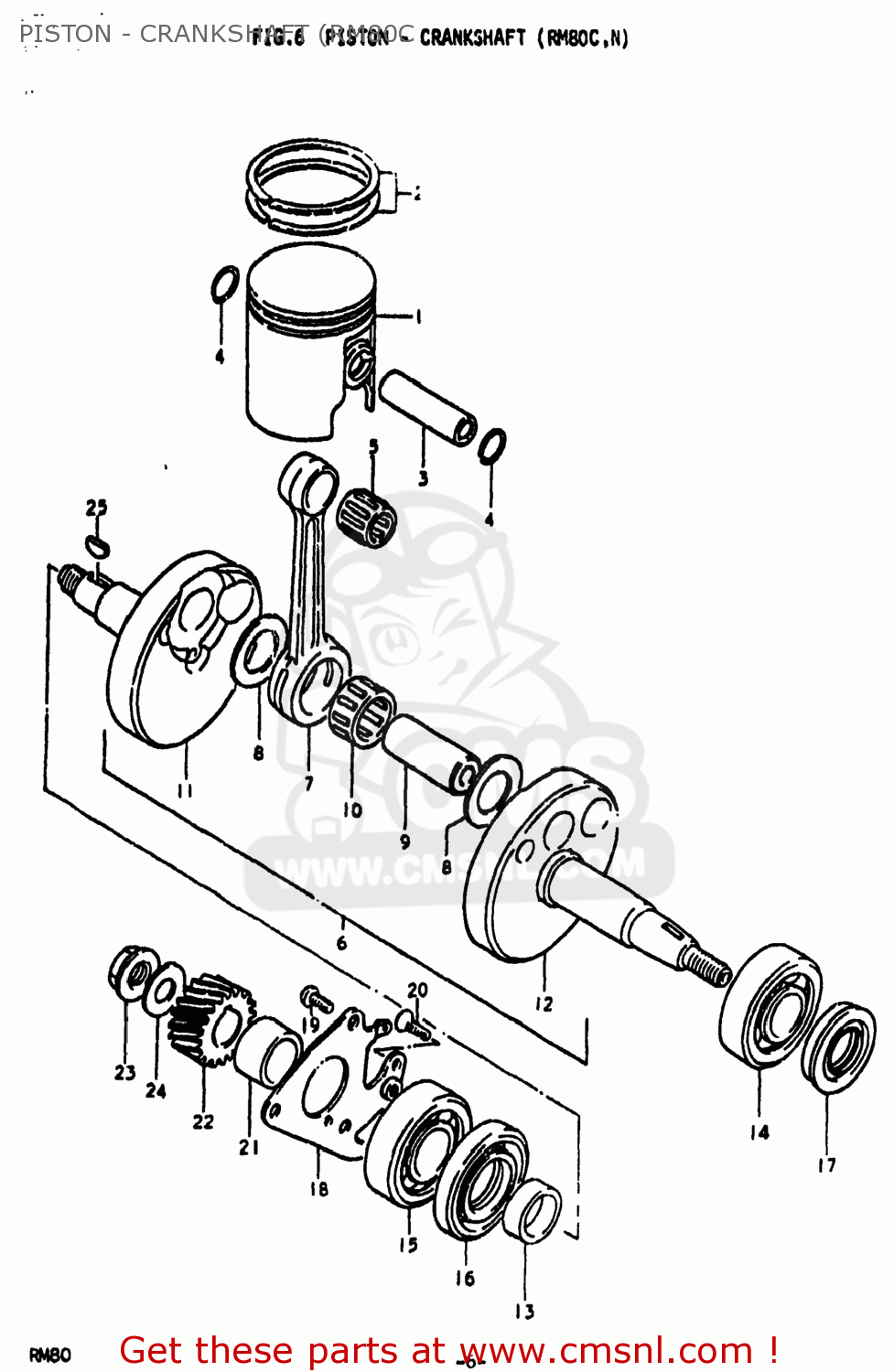

Piston - crankshaft (rm80c diagram RM80 1979 (N) USA (E03)
PISTON - CRANKSHAFT (RM80C RM80 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211046001
ref: 1-1
12110-46002
PISTON
€ 64.00
1-2
1211046001050
ref: 1-2
12103-46810-050
PISTON (OS:0.5)
€ 87.50
1-3
1211046001100
ref: 1-3
12104-46820-100
PISTON
€ 86.00
1-4
1211046001150
ref: 1-4
12110-46002-150
PISTON
€ 41.50
2-1
1214046000
ref: 2-1
RING SET,PISTON
€ 42.00
2-2
1214046000050
ref: 2-2
RING SET,PISTON (OS:0
€ 41.00
2-3
1214046000100
ref: 2-3
RING SET,PISTON (OS:1
€ 59.00
2-4
1214046000150
ref: 2-4
RING SET,PISTON
€ 59.00
3
1215125000
ref: 3
12151-35400
PIN,PISTON
€ 8.00
4
0938112001
ref: 4
RING,SNAP
€ 1.50
5
0926312003
ref: 5
09263-12023
BEARING
€ 9.00
6-1
1220046900
ref: 6-1
12200-46911
CRANKSHAFT ASSEMBLY
€ 404.00
6-2
1220046910
ref: 6-2
12200-46911
CRANKSHAFT ASSEMBLY
€ 404.00
7
1216114000
ref: 7
12161-14001
CONNECTING ROD
€ 42.50
8
0916017005
ref: 8
09160-17022
WASHER
€ 3.50
9
1221146900
ref: 9
12211-46000
PIN,CRANK
€ 16.00
10-1
0926317010
ref: 10-1
09263-17022
BEARING
€ 21.50
10-2
0926317013
ref: 10-2
09263-17016
BEARING
€ 17.00
11
1222146900
ref: 11
CRANKSHAFT
€ 85.00
12-1
1226146900
ref: 12-1
12261-46902
CRANKSHAFT,LEFT
€ 85.00
12-2
1226146901
ref: 12-2
12261-46902
CRANKSHAFT,LEFT
€ 85.00
13
0918020021
ref: 13
SPACER(20X26X9)
€ 6.50
14
0926220019
ref: 14
09262-20069
BEARING
€ 28.00
15
0926220045
ref: 15
09262-20064
BEARING
€ 21.00
16-1
0928326012
ref: 16-1
09283-26015
OIL SEAL
€ 6.50
16-2
0928326013
ref: 16-2
09283-26015
OIL SEAL
€ 6.50
17
0928320011
ref: 17
09283-20034
OIL SEAL
€ 6.00
18
1254146900
ref: 18
RETAINER
€ 0.00
19
0211206128
ref: 19
02112-06127
SCREW 6X12
€ 2.00
20
0212206128
ref: 20
02122-06127
SCREW
€ 3.00
21
0918020059
ref: 21
SPACER(20X26X14)
€ 7.50
22
2111146000
ref: 22
GEAR,PRIMARY DRIVE NO.19
€ 31.00
23
0915912005
ref: 23
NUT
€ 4.00
24
0916412016
ref: 24
WASHER
€ 5.00
25
0834131039
ref: 25
KEY
€ 2.00
