FRONT WHEEL
RM80 1979 (N) USA (E03)

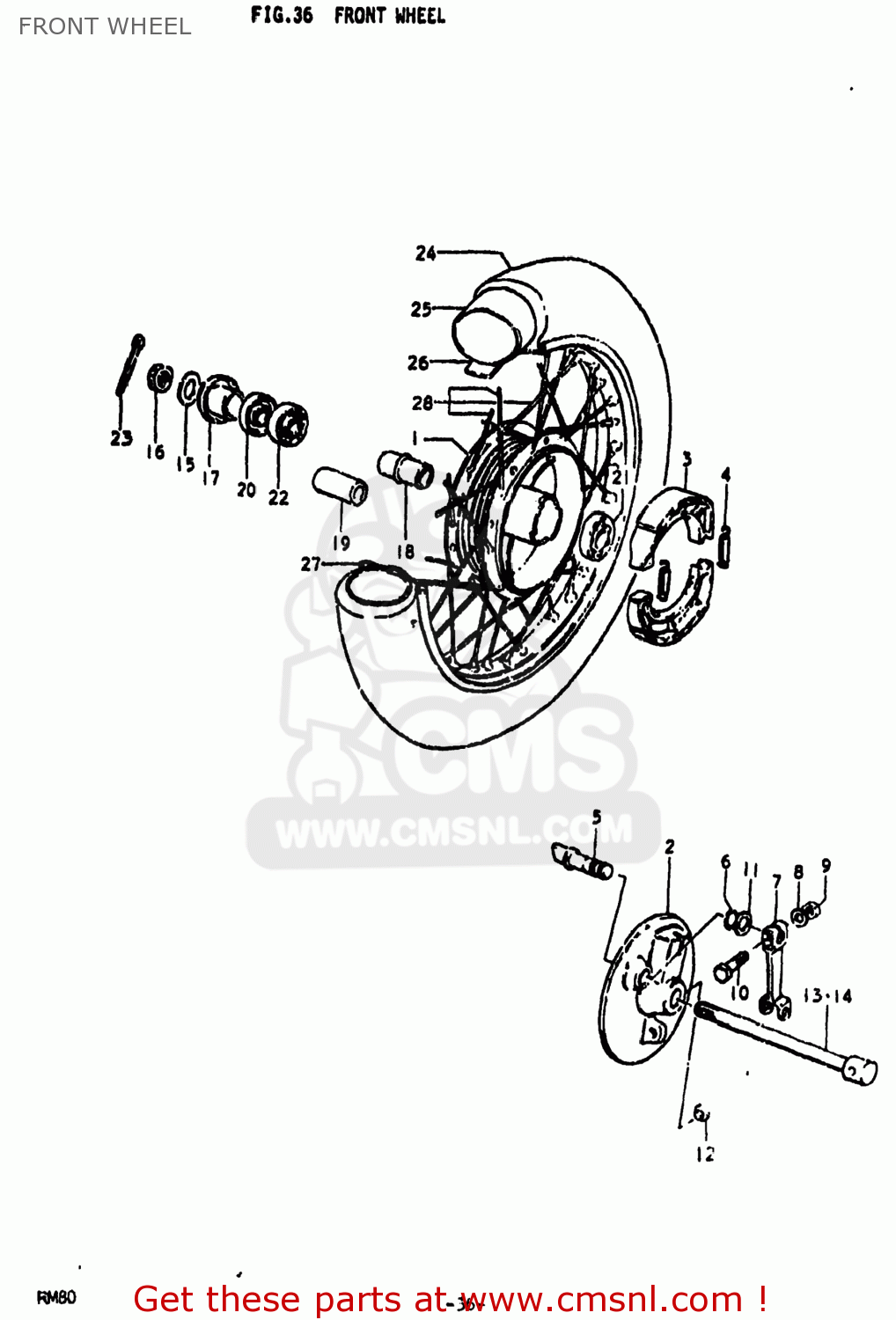

Front wheel diagram RM80 1979 (N) USA (E03)
FRONT WHEEL RM80 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411046000
ref: 1-1
54110-46002
HUB,FRONT
€ 91.00
1-2
5411046021
ref: 1-2
54110-46002
HUB,FRONT
€ 91.00
2
5421046000
ref: 2
54210-46001
PANEL,FRONT HUB
€ 0.00
3-1
5441043000
ref: 3-1
54400-35860
SHOE,BRAKE
€ 39.00
3-2
5441001005
ref: 3-2
54400-35860
SHOE,BRAKE
€ 39.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
5
5444101002
ref: 5
CAM,FR BRAKE
€ 19.50
6
0928012001
ref: 6
O RING(D:2.5,ID:11.4)
€ 2.50
7
5445138000
ref: 7
LEVER,FRONT BRAKE CAM
€ 34.00
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0831011068
ref: 9
08310-00067
NUT
€ 2.50
10
0910006050
ref: 10
09100-06150
BOLT
€ 1.50
11
0916012011
ref: 11
WASHER(12.5X20X1)
€ 1.50
12
0925011003
ref: 12
CAP(OD:17)
€ 2.50
13
5471126100
ref: 13
54711-04711
AXLE,FRONT
€ 19.50
14
5471143000
ref: 14
54711-43001
AXLE,FRONT
€ 20.50
15
0832221108
ref: 15
08322-01107
WASHER
€ 2.50
15
0832221108
ref: 15
08322-01107
WASHER
€ 2.50
16
0831431108
ref: 16
08314-3110A
NUT
€ 1.50
17
5474026100
ref: 17
54740-26101
SPACER,FRONT AXLE,RIGHT
€ 11.00
18
5473001000
ref: 18
SPACER,FRONT HUB BEARING
€ 11.50
19
0918010005
ref: 19
09180-10148
SPACER (10.2X16X51)
€ 5.50
20
0928415001
ref: 20
SEAL,OIL(15X31X5)
€ 4.00
21
0814363000
ref: 21
08143-63007
BEARING, LH
€ 12.50
22
0811362000
ref: 22
BEARING
€ 7.50
23-1
0411120308
ref: 23-1
04111-2030A
COTTER PIN
€ 1.00
23-2
0411120208
ref: 23-2
04111-2020A
PIN 20X20
€ 1.50
24-1
5510046050
ref: 24-1
TIRE,FRONT
€ 29.50
24-1
5510046050
ref: 24-1
TIRE,FRONT
€ 29.50
24-2
5510046910
ref: 24-2
55110-02B41
TIRE,FRONT
€ 68.00
25-1
5520026110
ref: 25-1
55200-08011
TUBE,INNER
€ 25.00
25-2
5520009620
ref: 25-2
65200-47C00
TUBE,INNER
€ 0.00
26-1
5526108010
ref: 26-1
65261-37300
PROTECTOR,WHEEL,INNER
€ 4.50
26-2
5526101010
ref: 26-2
55261-02B40
PROTECTOR,WHEEL,INNER
€ 3.50
27-1
5531126120
ref: 27-1
RIM,FRONT WHEEL
€ 28.50
27-2
5531146900
ref: 27-2
RIM,FRONT WHEEL
€ 38.00
28-1
5530026820
ref: 28-1
55320-26120
SPOKE SET,FRONT
€ 31.50
28-2
5530103812
ref: 28-2
55320-01021
SPOKE SET
€ 20.00
