REAR SWINGING ARM (RM80N)
RM80 1979 (N) USA (E03)

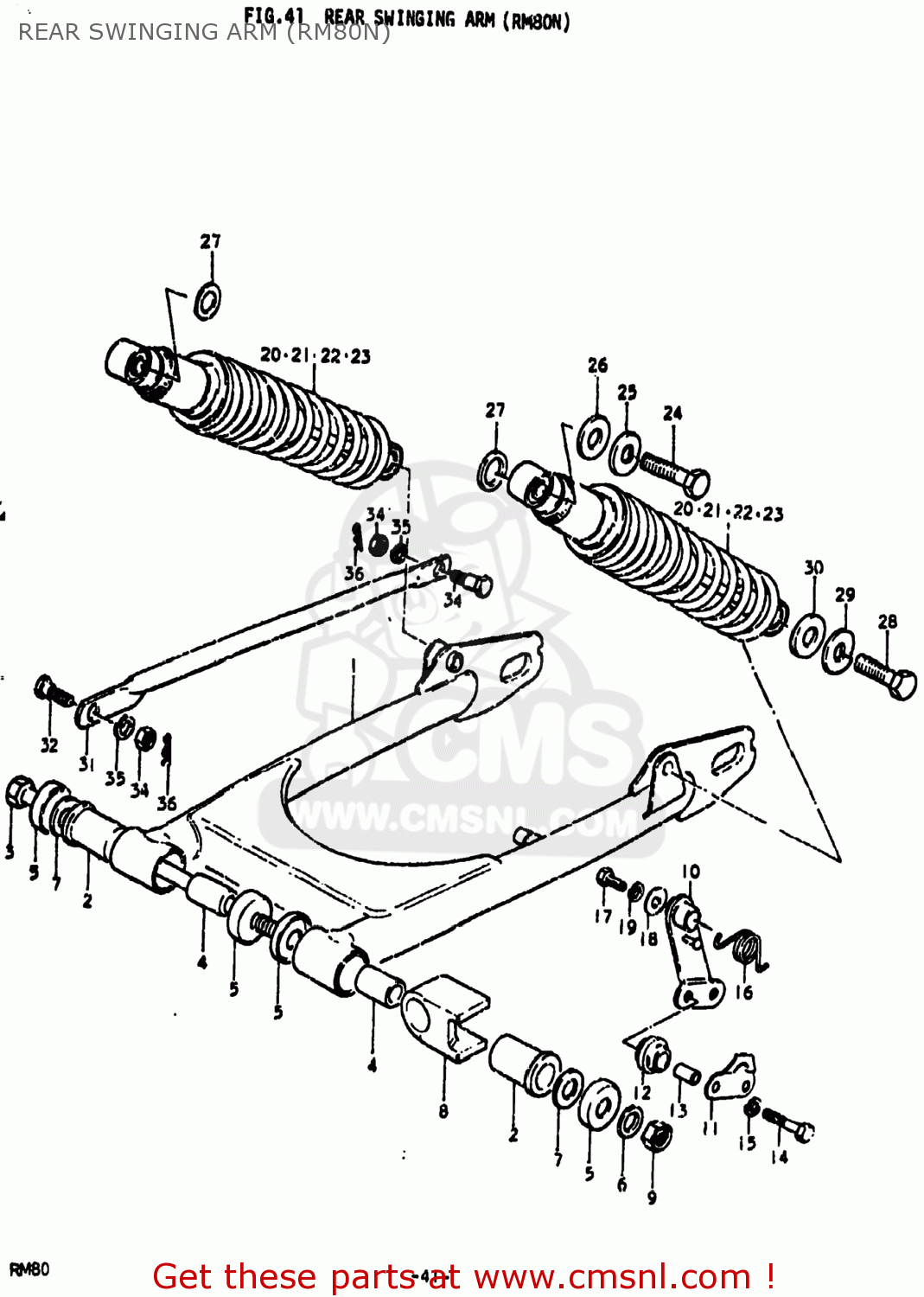

Rear swinging arm (rm80n) diagram RM80 1979 (N) USA (E03)
REAR SWINGING ARM (RM80N) RM80 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
611014682008C
ref: 1
SWING ARM ASSEMBLY,REAR
€ 61.00
2
0930718003
ref: 2
BUSHING
€ 9.50
3
6121125300
ref: 3
SHAFT, PIVOT
€ 6.00
4
6125146910
ref: 4
SPACER,RR SWGARM PIVOT
€ 14.00
5
6126246910
ref: 5
COVER,REAR SWING ARM DUST
€ 7.50
6
0832221108
ref: 6
08322-01107
WASHER
€ 2.50
7
0916010052
ref: 7
WASHER (10.2X28X1.5)
€ 3.00
8
6127346910
ref: 8
BUFFER,CHAIN TOUCH DEFLECTOR
€ 5.50
9
0831921108
ref: 9
09159-10027
NUT
€ 3.00
10
6135046000
ref: 10
TENSIONER,CHAIN
€ 13.00
11
6135241401
ref: 11
PLATE,CHAIN TENSIONER
€ 4.00
12
6134541100
ref: 12
RUBBER,CHAIN GUARD
€ 4.50
13
0918006067
ref: 13
SPACER(6.5X10.5X22.5)
€ 2.50
14
0110706308
ref: 14
01500-06307
BOLT
€ 2.50
15
0832121068
ref: 15
08321-01067
LOCK WASHER
€ 2.50
16
0944822003
ref: 16
SPRING
€ 2.50
17
0110706128
ref: 17
01500-06127
BOLT
€ 2.00
18
0916006007
ref: 18
09160-06084
WASHER
€ 2.00
19
0832121068
ref: 19
08321-01067
LOCK WASHER
€ 2.50
20
6210046910
ref: 20
ABSORBER ASSEMBLY,REAR SHOCK
€ 115.50
21
6221146910
ref: 21
SPRING
€ 21.00
22
6222146040
ref: 22
SPRING
€ 3.50
23
6222546040
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 3.00
24
0110706128
ref: 24
01500-06127
BOLT
€ 2.00
25
0832121068
ref: 25
08321-01067
LOCK WASHER
€ 2.50
26
0916006004
ref: 26
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
27
0916012006
ref: 27
09160-12089
WASHER
€ 2.00
28
0910010096
ref: 28
09100-10184
BOLT 10X40
€ 2.50
29
0832121108
ref: 29
08321-01107
LOCK WASHER
€ 2.00
30
0832211108
ref: 30
08322-01107
WASHER
€ 2.50
31
6431146000
ref: 31
64311-46000-019
TORQUE LINK,REAR
€ 8.00
32
0911108015
ref: 32
BOLT(8X22)
€ 3.00
33
0911108013
ref: 33
BOLT(8X26.5)
€ 3.00
34
0914008008
ref: 34
NUT
€ 1.50
35
0832121088
ref: 35
08321-01087
LOCK WASHER
€ 2.00
36
0938510001
ref: 36
09385-10005
CLIP
€ 1.50
