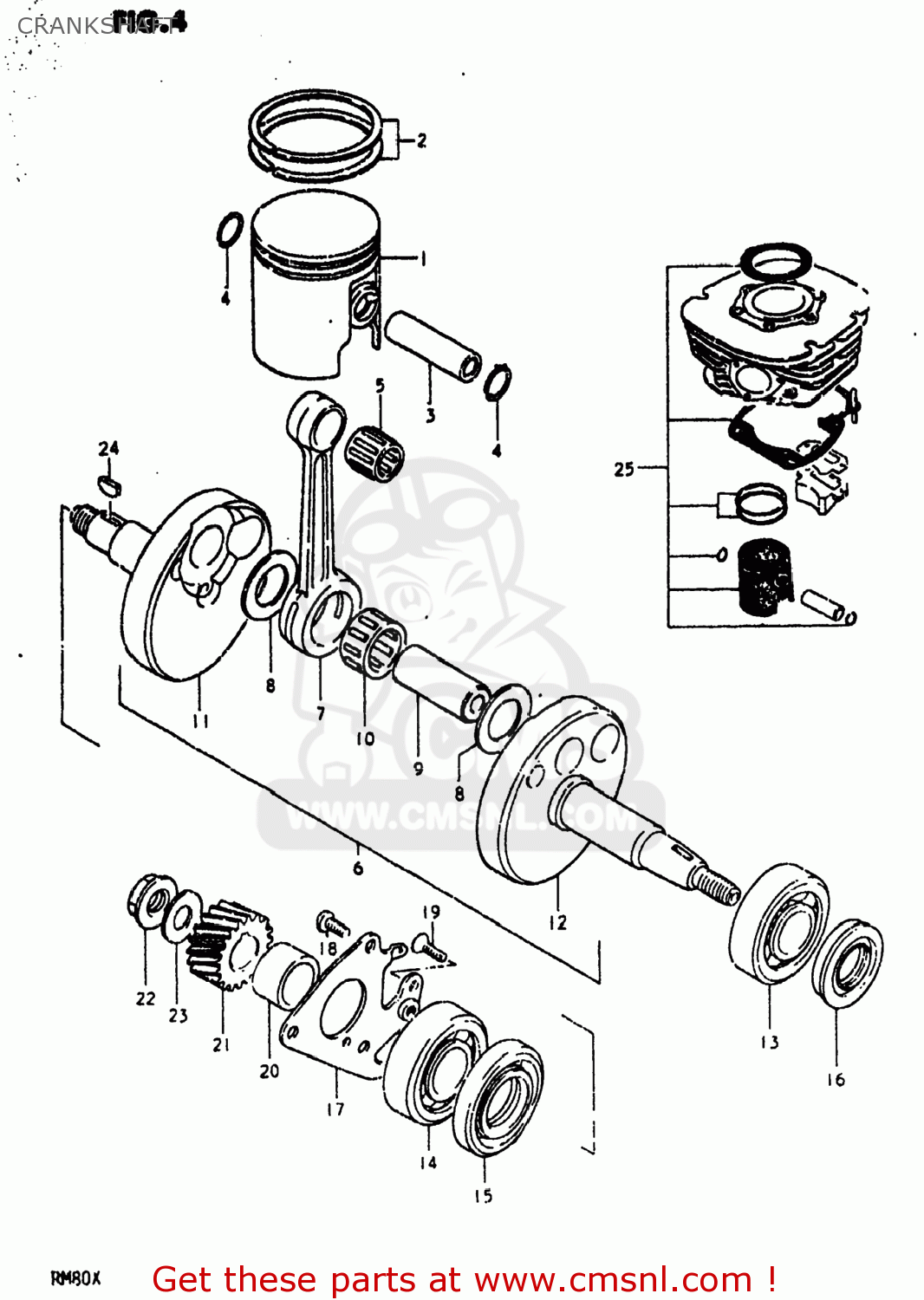

CRANKSHAFT

ref

part #

description

quantity

1-1

1211046002
ref: 1-1

PISTON (49.00MM)

€ 64.00

1-2

1211046002050
ref: 1-2
12103-46810-050

PISTON (49.50MM)

€ 87.50

1-3

1211046002100
ref: 1-3
12104-46820-100

PISTON (50.00MM)

€ 86.00

1-4

1211046002150
ref: 1-4

PISTON (50.50MM)

€ 41.50

2-1

1214046000
ref: 2-1

RING SET,PISTON

€ 42.00

2-2

1214046000050
ref: 2-2

RING SET,PISTON (OS:0

€ 41.00

2-3

1214046000100
ref: 2-3

RING SET,PISTON (OS:1

€ 59.00

2-4

1214046000150
ref: 2-4

RING SET,PISTON

€ 59.00

3

1215125000
ref: 3
12151-35400

PIN,PISTON

€ 8.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5-1

0926312003
ref: 5-1
09263-12023

BEARING

€ 9.00

5-2

0926312015
ref: 5-2
09263-12023

BEARING

€ 9.00

6

1220020300
ref: 6
12200-20302

CRANKSHAFT ASSEMBLY

€ 186.50

7

1216114001
ref: 7

ROD,CONNECTING

€ 42.50

8

0916017022
ref: 8

WASHER(17X29X1)

€ 3.50

9

1221126400
ref: 9

PIN,CRANK

€ 25.50

10

0926317016
ref: 10

BEARING(17X23X14)

€ 17.00

11

1222120300
ref: 11

CRANKSHAFT

€ 0.00

12-1

1226120300
ref: 12-1
12261-20301

CRANKSHAFT,LEFT

€ 0.00

12-2

1226120301
ref: 12-2

CRANKSHAFT,LEFT

€ 0.00

13

0926220054
ref: 13
09262-20121

BEARING

€ 28.00

14

0926220045
ref: 14
09262-20064

BEARING

€ 21.00

15

0928326013
ref: 15
09283-26015

OIL SEAL

€ 6.50

16

0928320034
ref: 16

SEAL,OIL(19.6X37X8)

€ 6.00

17

1254146900
ref: 17

RETAINER

€ 0.00

18

0211206128
ref: 18
02112-06127

SCREW 6X12

€ 2.00

19

0212206128
ref: 19
02122-06127

SCREW

€ 3.00

20

0918020075
ref: 20

SPACER

€ 0.00

21

2111146000
ref: 21

GEAR,PRIMARY DRIVE NO.19

€ 31.00

22

0915912005
ref: 22

NUT

€ 4.00

23

0916412016
ref: 23

WASHER

€ 5.00

24

0834131039
ref: 24

KEY

€ 2.00

25-1

1210046830
ref: 25-1

PISTON SET

€ 0.00

25-2

1210046830050
ref: 25-2

PISTON SET (OS:0.5)

€ 0.00
