REAR WHEEL
RM80 1980 (T) USA (E03)

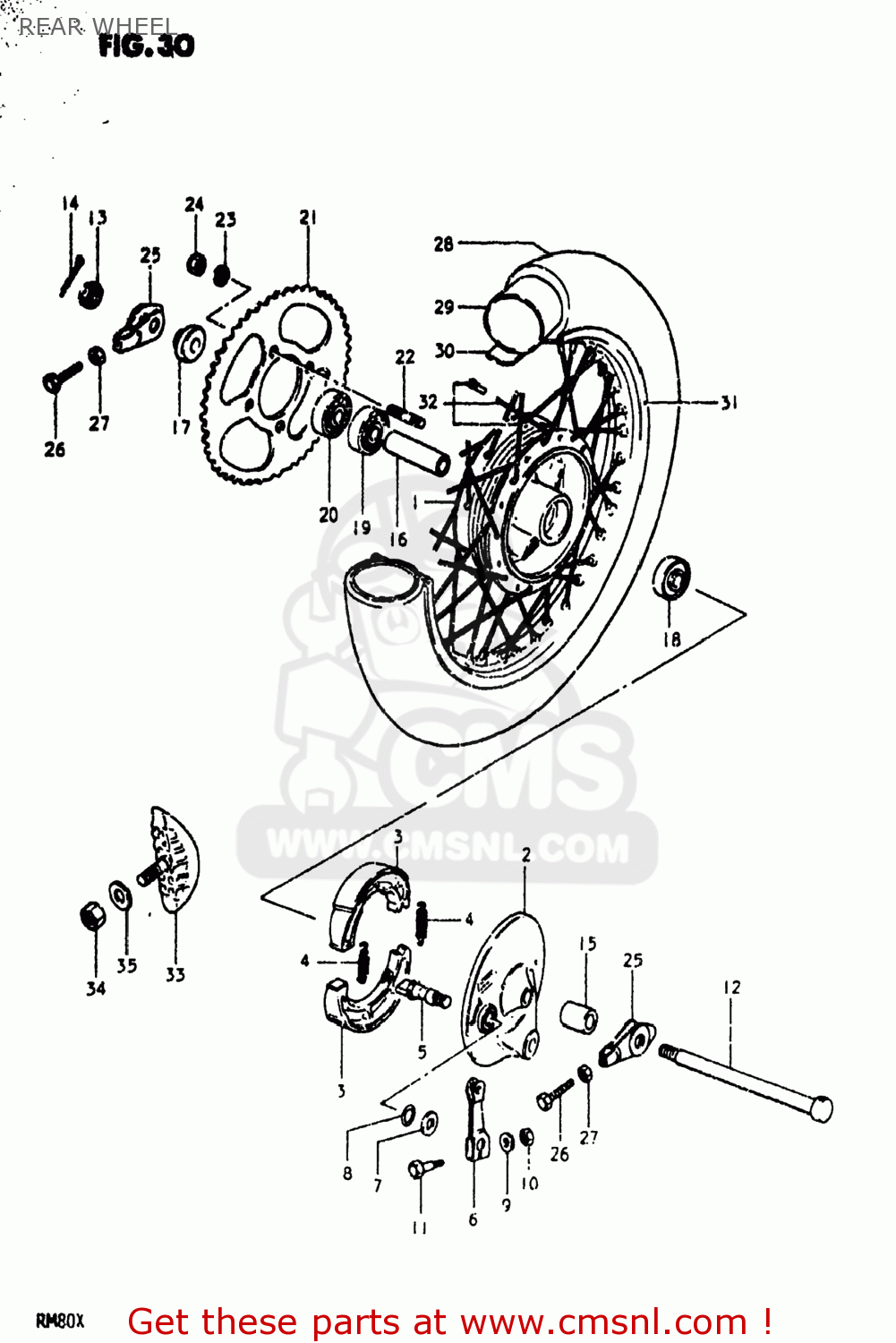

Rear wheel diagram RM80 1980 (T) USA (E03)
REAR WHEEL RM80 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6410046811
ref: 1
DRUM SET,REAR HUB
€ 120.50
2
6421046022
ref: 2
64210-46024
PANEL,REAR BRAKE ANCHOR
€ 66.00
3
5441043020
ref: 3
54400-43880
SHOE,BRAKE (MCA)
€ 19.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
5-1
5444129301
ref: 5-1
54441-29305
CAM,FRONT BRAKE
€ 13.00
5-2
5444129302
ref: 5-2
54441-29305
CAM,FRONT BRAKE
€ 13.00
6
6445143020
ref: 6
LEVER,RR BRAKE CAM
€ 6.50
7
0916014001
ref: 7
09160-14055
WASHER (14.5X22X1.6)
€ 2.50
8
0928014003
ref: 8
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
0831011068
ref: 10
08310-00067
NUT
€ 2.50
11
0910006078
ref: 11
BOLT(6X33)
€ 2.50
12
6471143000
ref: 12
64711-43001
AXLE,REAR
€ 28.50
13
0831431128
ref: 13
08314-3112A
NUT 12MM
€ 2.00
14
0411130308
ref: 14
04111-3030A
COTTER PIN
€ 1.50
15
0918012077
ref: 15
09180-12077-XC0
SPACER (12.1X22X27)
€ 4.50
16
0918012082
ref: 16
SPACER (12.6X19X79)
€ 9.50
17
6475046000
ref: 17
SPACER,RR AXLE,L
€ 6.50
18
0814363017
ref: 18
BEARING
€ 14.50
19
0811363010
ref: 19
BEARING
€ 9.50
20
0812363017
ref: 20
BEARING
€ 13.50
21-1
6451146050
ref: 21-1
SPROCKET,REAR
€ 25.50
21-2
6451120310
ref: 21-2
SPROCKET,REAR
€ 85.00
22
0142110208
ref: 22
01421-1020A
BOLT
€ 2.50
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24
0831921108
ref: 24
09159-10027
NUT
€ 3.00
25
6141013200
ref: 25
ADJUSTER,CHAIN
€ 27.00
26
0910406002
ref: 26
BOLT(6X38)
€ 2.00
27
0831011068
ref: 27
08310-00067
NUT
€ 2.50
28
6510020300
ref: 28
65110-02B40
TIRE
€ 52.50
29
6520020300
ref: 29
65200-02B40
TUBE ASSEMBLY,WHEEL,INNER
€ 26.00
30
5526124010
ref: 30
PROTECTOR,INNER TUBE
€ 9.50
31
6531120300
ref: 31
RIM,REAR WHEEL
€ 0.00
32
6532020300
ref: 32
SPOKE ASSY,RR WHEEL
€ 50.00
33
6527046910
ref: 33
65270-43D00
STOPPER,BEAD
€ 30.50
34
0831012088
ref: 34
08310-00087
NUT
€ 2.00
35
0832211088
ref: 35
08322-01087
WASHER
€ 2.00
