MUFFLER
RM80 1980 (T) USA (E03)

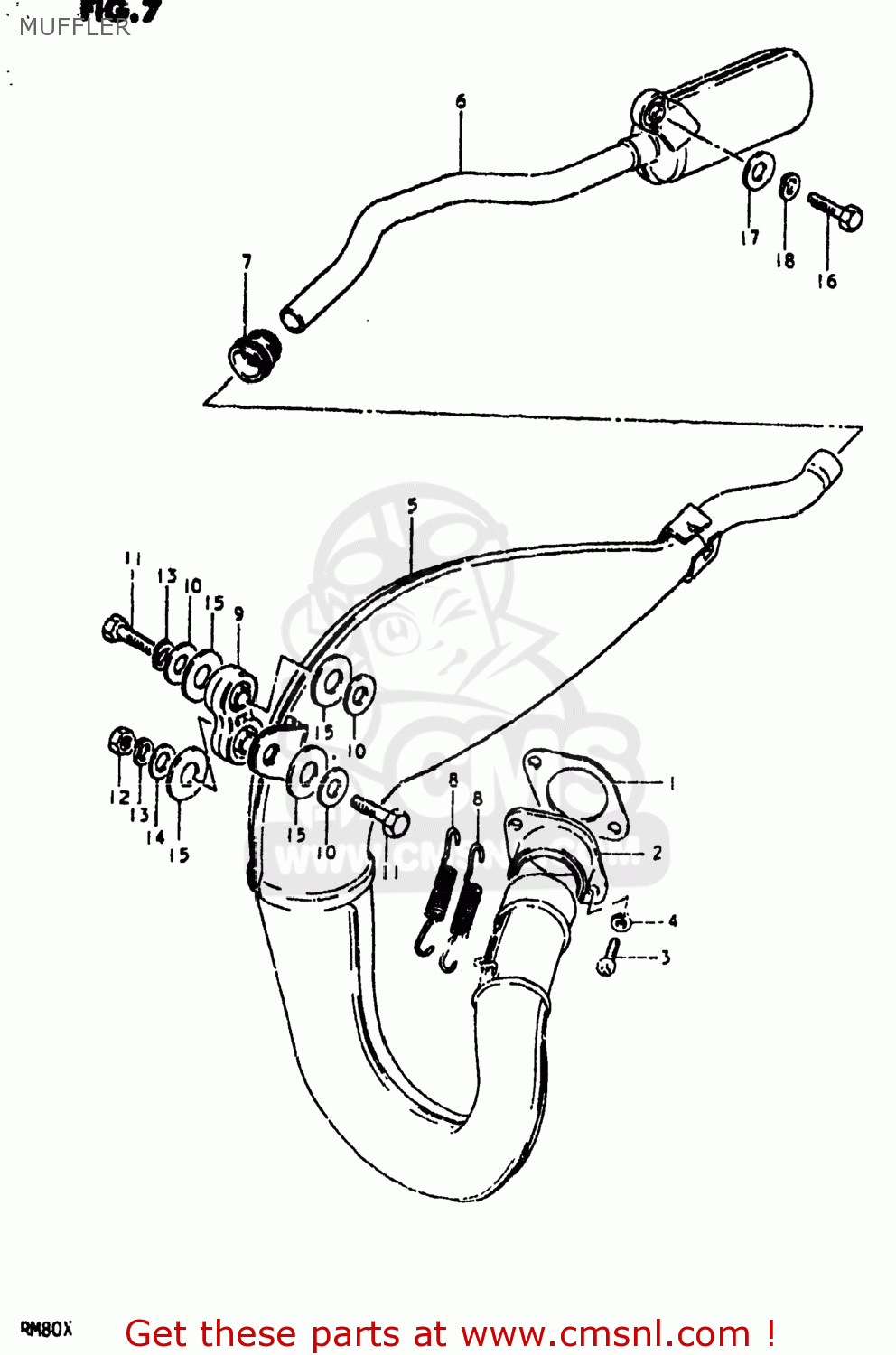

Muffler diagram RM80 1980 (T) USA (E03)
MUFFLER RM80 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418146001
ref: 1
14181-46001-H17
GASKET,EXHAUST PIPE (MCA)
€ 7.50
2
1417046000
ref: 2
PIPE,CENTER EXHAUST
€ 15.00
3
0211206168
ref: 3
02112-06167
SCREW
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
1431020300
ref: 5
14310-20300-H01
BODY,MUFFLER
€ 108.50
6
1433020300
ref: 6
14330-20300-H01
BODY,MUFFLER
€ 1.00
7
1477148002
ref: 7
CONNECTOR,MUFFLER
€ 8.00
8
0944311002
ref: 8
SPRING
€ 4.50
9
1477040000
ref: 9
DAMPER,MUFFLER
€ 139.00
10
0916008035
ref: 10
09160-08130
WASHER
€ 2.00
11
0110708358
ref: 11
01500-0835B
BOLT
€ 3.50
12
0831012088
ref: 12
08310-00087
NUT
€ 2.00
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
0832211088
ref: 14
08322-01087
WASHER
€ 2.00
15
0916113001
ref: 15
WASHER(13X28X1.6)
€ 2.50
16
0110708358
ref: 16
01500-0835B
BOLT
€ 3.50
17
0916008035
ref: 17
09160-08130
WASHER
€ 2.00
18
0832121088
ref: 18
08321-01087
LOCK WASHER
€ 2.00
