FRONT FORK
RM80 1980 (T) USA (E03)

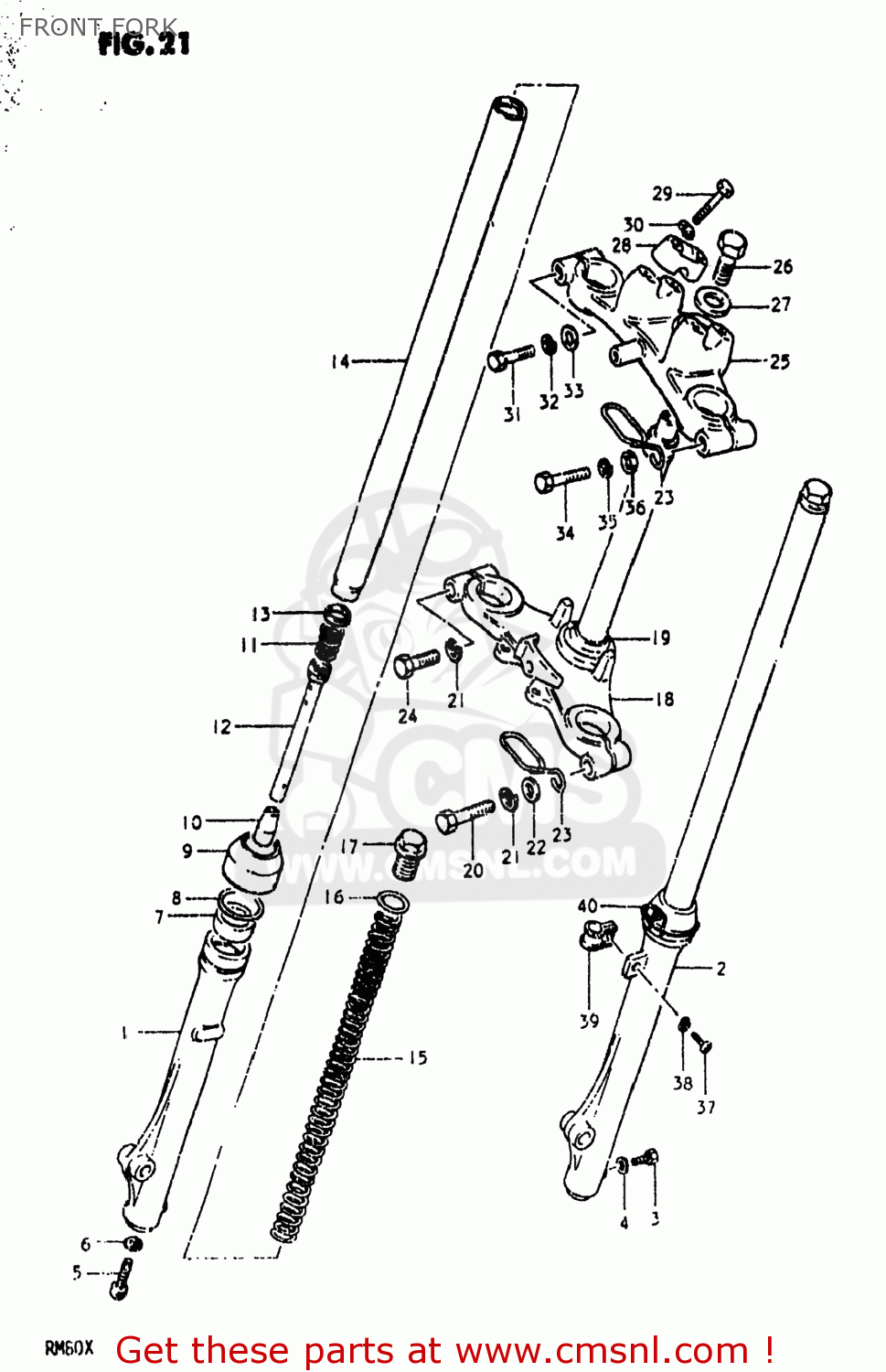

Front fork diagram RM80 1980 (T) USA (E03)
FRONT FORK RM80 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
511002030008C
ref: 0-1
51100-20301-08C
DAMPER SET
€ 0.00
0-2
511002030108C
ref: 0-2
DAMPER SET
€ 0.00
1
5113120300
ref: 1
TUBE,OUTER
€ 0.00
2
5114120300
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
0910006011
ref: 3
BOLT(6X8)
€ 2.50
4
5118331030
ref: 4
GASKET,DRAIN,PLUG (NAS)
€ 4.00
5
5114748130
ref: 5
BOLT(8X27)
€ 3.50
6
5114831030
ref: 6
51148-36011
GASKET (NAS)
€ 4.00
7
5115308030
ref: 7
51153-48420
OIL SEAL,FRONT FORK
€ 11.00
8
5115636030
ref: 8
51156-48730
CIRCLIP,FORK OIL SEAL
€ 2.50
9
5117325030
ref: 9
51173-20400
DUST SEAL,FRONT FORK
€ 9.00
10
5119548000
ref: 10
PIECE,OIL LOCK
€ 8.50
11
5117736030
ref: 11
SPRING,REBOUND
€ 4.50
12
5114620300
ref: 12
CYLINDER,FRONT FORK
€ 23.50
13
5119633130
ref: 13
RING,PISTON
€ 7.50
14
5111020300
ref: 14
TUBE,FORK,INNER
€ 109.50
15
5117120300
ref: 15
SPRING,FRONT FORK
€ 0.00
16
5118125030
ref: 16
O RING
€ 3.00
17
5135148000
ref: 17
BOLT
€ 12.00
18
514104691108C
ref: 18
STEM,STEERING
€ 180.00
19
5162133001
ref: 19
RACE,STEERING OUTER LWR
€ 10.00
20
5145127431
ref: 20
BOLT
€ 4.50
21
0832121108
ref: 21
08321-01107
LOCK WASHER
€ 2.00
22
0832211108
ref: 22
08322-01107
WASHER
€ 2.50
23
5145520301
ref: 23
GUIDE,CABLE
€ 0.00
24
0110710358
ref: 24
01500-1035B
BOLT,M10X1.25X
€ 2.50
25
513114691008C
ref: 25
HEAD,STEERING STEM
€ 0.00
26
5135248000
ref: 26
51352-13600
BOLT,STEERING STEM HEAD
€ 12.50
27
5135620300
ref: 27
WASHER
€ 0.00
28
562114668008C
ref: 28
HOLDER,HANDLEBAR
€ 9.50
29
0110708358
ref: 29
01500-0835B
BOLT
€ 3.50
30
0832121088
ref: 30
08321-01087
LOCK WASHER
€ 2.00
31
0110708408
ref: 31
01500-0840A
BOLT 8X40
€ 3.00
32
0832121088
ref: 32
08321-01087
LOCK WASHER
€ 2.00
33
0832221088
ref: 33
08322-01087
WASHER
€ 2.00
34
0110708458
ref: 34
01500-08453
BOLT 8X45
€ 2.50
35
0832121088
ref: 35
08321-01087
LOCK WASHER
€ 2.00
36
0832221088
ref: 36
08322-01087
WASHER
€ 2.00
37
0211204168
ref: 37
02112-0416A
SCREW
€ 1.00
38
0832121046
ref: 38
08321-0104A
LOCK WASHER
€ 2.00
39
5145246040
ref: 39
CLIP,FR BRAKE CABLE
€ 5.50
40
5145520310
ref: 40
GUIDE,CABLE
€ 0.00
