CRANKCASE COVER - WATER PUMP (MODEL G/H/J)

RM80 1987 (H) USA (E03)

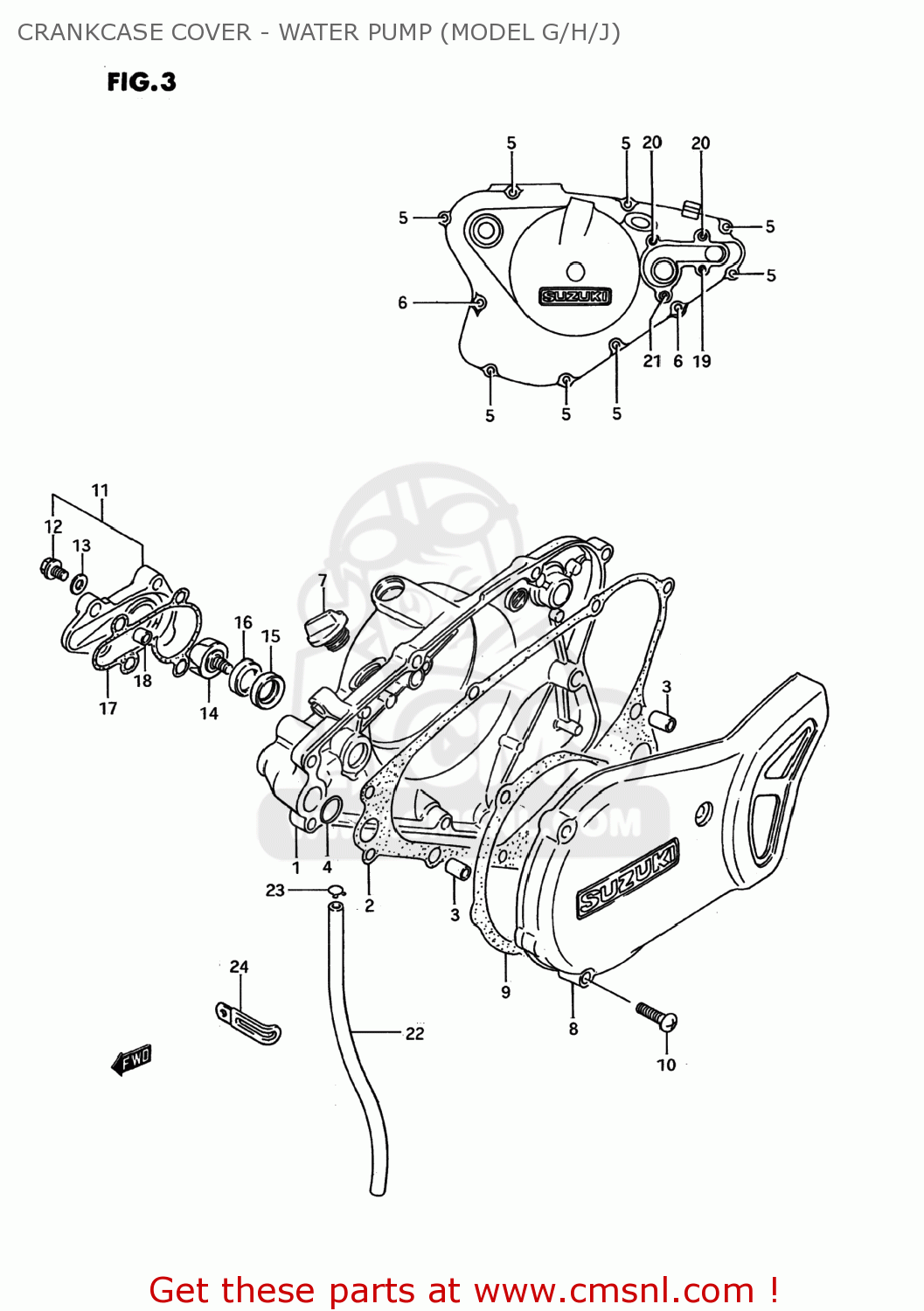

Crankcase cover - water pump (model g/h/j) diagram RM80 1987 (H) USA (E03)

CRANKCASE COVER - WATER PUMP (MODEL G/H/J) RM80 1987 (H) USA (E03)

CRANKCASE COVER - WATER PUMP (MODEL G/H/J) RM80 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1134002821
ref: 1

COVER SET,CLUTCH

€ 187.00

2

1148202B00
ref: 2
11482-02B00-H17

GASKET,CLUTCH COVER (NAS)

€ 9.50

3

0421109129
ref: 3

PIN

€ 2.00

4

0928015002
ref: 4

O RING(D:1.9,ID:14.5)

€ 3.50

5

0211206258
ref: 5
02112-06257

SCREW

€ 2.00

6

0211206357
ref: 6

SCREW

€ 2.50

7

0920020810
ref: 7

PLUG SET

€ 8.00

8

1135102B00
ref: 8
11351-02B41

COVER,MAGNETO

€ 60.00

9

1148302B01
ref: 9
11483-02B50

GASKET,MAGNETO COVER (NAS)

€ 5.00

10

0211206258
ref: 10
02112-06257

SCREW

€ 2.00

11

1741002B02
ref: 11

CASE,WATER PUMP

€ 83.00

12

1741500B00
ref: 12
17415-43D00

BOLT,BLEEDER

€ 3.00

13

1741300B00
ref: 13
17413-28C10

GASKET (NAS)

€ 1.50

14

1749102B02
ref: 14

IMPELLER,WATER PUMP

€ 19.50

15

0928212007
ref: 15

SEAL,OIL(12X24X7)

€ 7.00

16

0928912004
ref: 16

SEAL,OIL(12X24X6.4)

€ 9.00

17

1743102B10
ref: 17
17431-02B10-H17

GASKET,WATER PUMP CASE (NAS)

€ 7.50

18

0421109109
ref: 18

PIN

€ 2.00

19

0211206208
ref: 19
02112-06207

SCREW

€ 2.00

20

0211206258
ref: 20
02112-06257

SCREW

€ 2.00

21

0211206308
ref: 21
02112-06307

SCREW 6X30

€ 2.50

22

0935240703600
ref: 22

HOSE(4X7X600)

€ 3.00

23

0940108401
ref: 23

CLIP

€ 1.50

24

0940406422
ref: 24
09404-06429

CLAMP

€ 2.50
