TRANSMISSION

RM80 1987 (H) USA (E03)

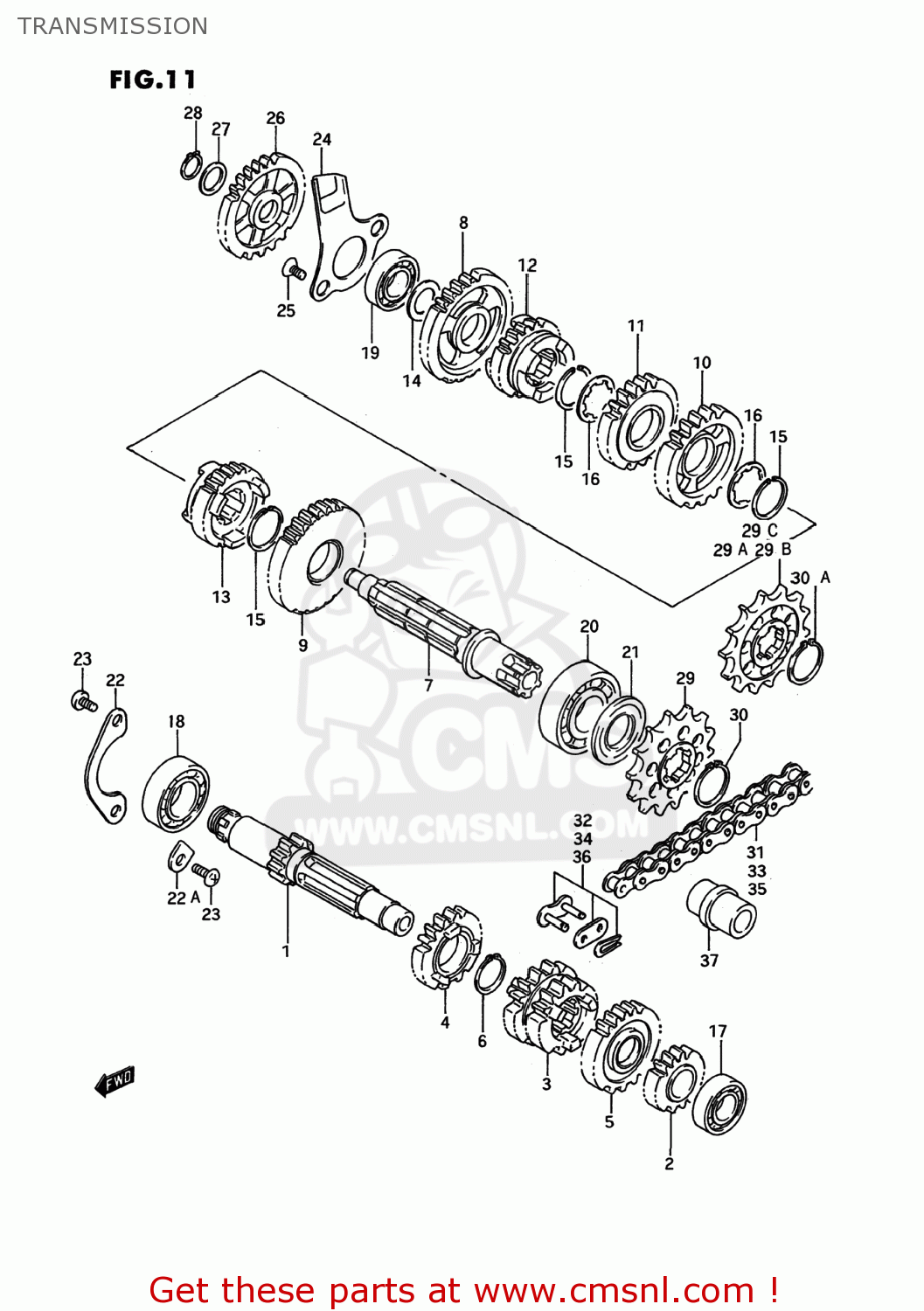

Transmission diagram RM80 1987 (H) USA (E03)

TRANSMISSION RM80 1987 (H) USA (E03)
TRANSMISSION RM80 1987 (H) USA (E03)
TRANSMISSION RM80 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
2412102B02
ref: 1-1
SHAFT,COUNTER
2412102B02
€ 73.00
1-2
2412102B40
ref: 1-2
24121-02B42
SHAFT,COUNTER (NT:11)
2412102B40
€ 104.50
2
2422102B01
ref: 2
24221-02B02
GEAR,2ND DRIVE (NT:15)
2422102B01
€ 33.50
3
2423102B02
ref: 3
24231-02B03
GEAR,THIRD/FOURTH DRIVE
€ 60.00
4
2425102B01
ref: 4
24251-02B02
GEAR,FIFTH DRIVE
2425102B01
€ 42.00
5
2426002B01
ref: 5
GEAR,6TH DRIVE
2426002B01
€ 46.00
6
0938020009
ref: 6
CIRCLIP
0938020009
€ 2.00
7
2413102B01
ref: 7
SHAFT,DRIVE
2413102B01
€ 89.50
8
2431102B01
ref: 8
24311-02B02
GEAR,FIRST DRIVEN
2431102B01
€ 59.50
9
2432102B01
ref: 9
24321-02B02
GEAR,SECOND DRIVEN
2432102B01
€ 60.00
10-1
2433102B01
ref: 10-1
24331-03B02
GEAR,THIRD DRIVEN
2433102B01
€ 44.00
10-2
2433103B00
ref: 10-2
24331-03B02
GEAR,THIRD DRIVEN (NT:22)
€ 44.00
11-1
2434102B01
ref: 11-1
24341-03B02
GEAR,FOURTH DRIVEN
2434102B01
€ 42.00
11-2
2434103B00
ref: 11-2
24341-03B02
GEAR,FOURTH DRIVEN (NT:20)
2434103B00
€ 42.00
12
2435102B01
ref: 12
24351-02B02
GEAR,FIFTH DRIVEN
2435102B01
€ 46.00
13
2436102B02
ref: 13
24361-02B03
GEAR,SIXTH DRIVE (NT:23)
2436102B02
€ 46.00
14
0821115261
ref: 14
09181-15195
WASHER,THRUST
0821115261
€ 2.50
15
0938022006
ref: 15
CIRCLIP
0938022006
€ 3.00
16
0916722011
ref: 16
WASHER,LOCK
0916722011
€ 3.00
17-1
0811360027
ref: 17-1
BEARING
€ 11.50
17-2
0812362027
ref: 17-2
BEARING
0812362027
€ 14.50
17-3
0811362027
ref: 17-3
BEARING
0811362027
€ 14.50
18
0926220106
ref: 18
BEARING(20X42X12)
0926220106
€ 20.50
19
0811362027
ref: 19
BEARING
0811362027
€ 14.50
20
0926220069
ref: 20
BEARING(20X47X14)
0926220069
€ 28.00
21
0928320038
ref: 21
09283-20057
OIL SEAL (20X35X5)
0928320038
€ 5.50
22
2474148000
ref: 22
RETAINER,CNTR SHAFT BEARING
2474148000
€ 5.50
22A
2474121A00
ref: 22A
RETAINER
2474121A00
€ 2.00
23-1
0211206128
ref: 23-1
02112-06127
SCREW 6X12
0211206128
€ 2.00
23-2
0211206123
ref: 23-2
02112-0612A
SCREW
0211206123
€ 1.50
24
2475102B02
ref: 24
RETAINER,DRIVESHAFT
2475102B02
€ 5.50
25
0212206128
ref: 25
02122-06127
SCREW
0212206128
€ 3.00
26-1
2626002B00
ref: 26-1
GEAR,KICK STARTER IDLE
€ 40.50
26-2
2626002B40
ref: 26-2
GEAR,KICK STARTER IDLE(NT:24)
2626002B40
€ 39.50
27
0822112205
ref: 27
SHIM
0822112205
€ 1.50
28
0833131126
ref: 28
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
29A
2751120420
ref: 29A
27511-20421
SPROCKET,ENGINE
2751120420
€ 14.00
29B
2751120421
ref: 29B
SPROCKET,ENGINE(NT:14)
2751120421
€ 14.00
29C
2751120401
ref: 29C
SPROCKET,ENGINE(NT:13)
2751120401
€ 16.00
29-1
2751102B00
ref: 29-1
SPROCKET,ENGINE (NT:14)
2751102B00
€ 15.50
29-2
2751104710
ref: 29-2
SPROCKET,ENGINE
2751104710
€ 12.50
30
0938020007
ref: 30
CIRCLIP
0938020007
€ 3.00
30A
0938020009
ref: 30A
CIRCLIP
0938020009
€ 2.00
31
2760002B11120
ref: 31
27600-01011-130
CHAIN ASSEMBLY,DRIVE
€ 31.00
32-1
2762002B11
ref: 32-1
JOINT (DID)
€ 2.00
32-2
2762002B20
ref: 32-2
JOINT (RK)
€ 0.00
33
2760020931
ref: 33
27600-46911-134
CHAIN ASSEMBLY,DRIVE
€ 46.50
34-1
2762020910
ref: 34-1
JOINT,CHAIN
2762020910
€ 3.00
34-2
2762005220
ref: 34-2
27620-40220
JOINT ASSEMBLY,CHAIN
€ 7.00
35
2760002B40118
ref: 35
CHAIN,DRIVE(428G2X118L)
€ 66.00
36
2762002B40
ref: 36
JOINT SET,CHAIN
2762002B40
€ 5.50
37
0918012116
ref: 37
CUSHION
0918012116
€ 8.00
