CYLINDER (MODEL K)

RM80 1987 (H) USA (E03)

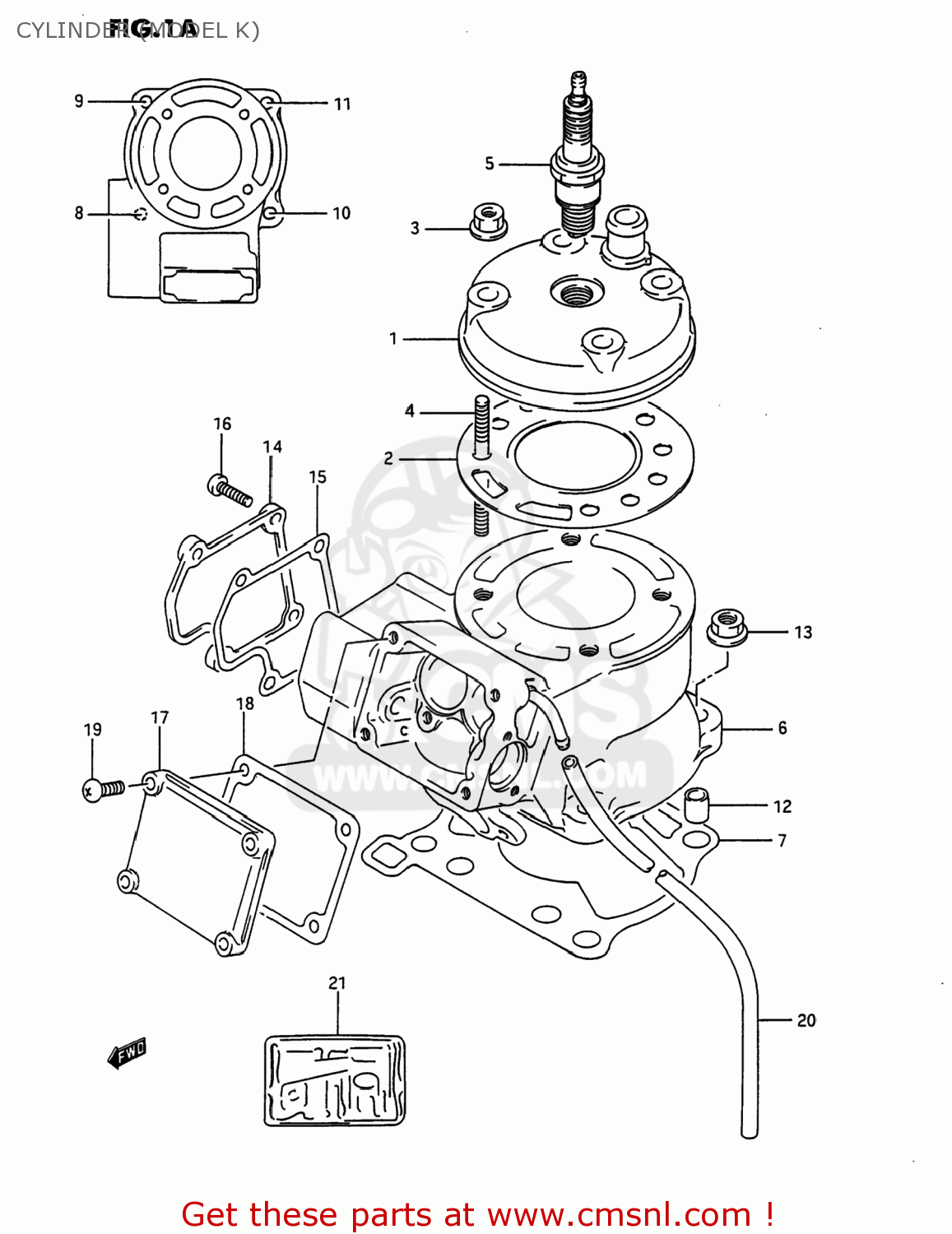

Cylinder (model k) diagram RM80 1987 (H) USA (E03)

CYLINDER (MODEL K) RM80 1987 (H) USA (E03)

CYLINDER (MODEL K) RM80 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1111102B41
ref: 1
11111-02B43

HEAD,CYLINDER

€ 407.50

2

1114102B02
ref: 2
11141-02B60

GASKET,CYLINDER HEAD (MCA)

€ 24.00

3

0831616088
ref: 3
08316-10087

NUT

€ 2.50

4

0910808198
ref: 4

BOLT,STUD

€ 5.00

5-1

0948200351
ref: 5-1

SPARK PLUG B9ES

€ 2.50

5-2

0948200160
ref: 5-2

SPARK PLUG W27ES

€ 9.00

6

1120002810
ref: 6
11200-02812

CYLINDER

€ 111.50

7

1124102B40
ref: 7
11241-03B01

GASKET,CYLINDER (NAS)

€ 5.50

8

0910808200
ref: 8
09108-08255

BOLT,STUD

€ 3.00

9

0142108258
ref: 9
01421-0825A

STUD 8X25

€ 2.50

10

0910808142
ref: 10

BOLT,STUD

€ 3.00

11

0910808220
ref: 11

BOLT,STUD

€ 3.50

12

0421111149
ref: 12

PIN

€ 2.00

13

0831616088
ref: 13
08316-10087

NUT

€ 2.50

14

1123102B40
ref: 14

COVER,CYLINDER NO.1

€ 16.00

15

1123302B40
ref: 15
11233-02B42

GASKET,CYLINDER COVER (NAS)

€ 4.50

16

0211205168
ref: 16
02112-05167

SCREW

€ 2.50

17

1124812C00
ref: 17
11248-12C01

COVER,CYLINDER

€ 22.50

18

1123801B30H17
ref: 18

GASKET,CYL COVER NO.2 (NAS)

€ 6.00

19

0211205168
ref: 19
02112-05167

SCREW

€ 2.50

20

0935240703600
ref: 20

HOSE(4X7X600)

€ 3.00

21

1140102830
ref: 21
11401-02836

GASKET SET (NAS)

€ 83.00
