CDI UNIT - IGNITION COIL

RM80 1992 (N) USA (E03)

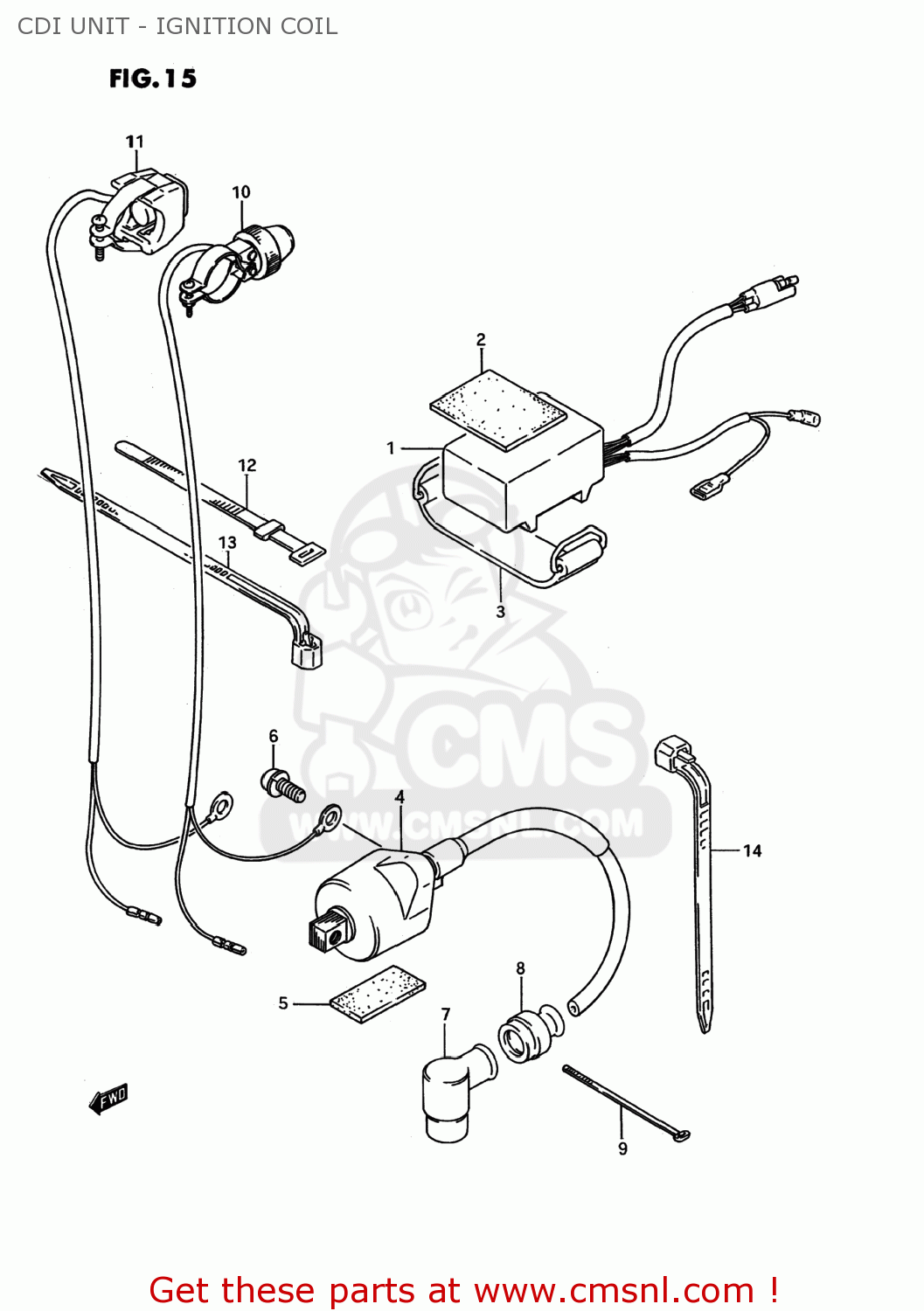

Cdi unit - ignition coil diagram RM80 1992 (N) USA (E03)

CDI UNIT - IGNITION COIL RM80 1992 (N) USA (E03)

CDI UNIT - IGNITION COIL RM80 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3290002B20
ref: 1-1

CDI UNIT

€ 129.00

1-2

3290002B30
ref: 1-2
32900-02B31

UNIT ASSEMBLY,CDI

€ 233.50

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3-1

3294202B00
ref: 3-1
09462-00034

BAND

€ 4.50

3-2

0946200034
ref: 3-2

BAND

€ 4.50

4-1

3341020430
ref: 4-1
33410-02221

COIL ASSEMBLY,IGNITION

€ 83.00

4-2

3341002221
ref: 4-2

COIL ASSY,IGNITION

€ 83.00

5

3365201A00
ref: 5
33651-37000

PROTECTOR,BATTERY

€ 5.00

5

3365201A00
ref: 5
33651-37000

PROTECTOR,BATTERY

€ 5.00

6-1

0211236206
ref: 6-1
02112-3620A

SCREW

€ 2.00

6-2

0912906003
ref: 6-2

SCREW(6X21)

€ 2.00

7-1

3351041111
ref: 7-1
33510-20A02

CAP,SPARK PLUG

€ 23.00

7-2

3351020A00
ref: 7-2
33510-20A02

CAP,SPARK PLUG

€ 23.00

8

3354238B00
ref: 8

SEAL,HIGH TENSION CORD

€ 4.50

9

0940709402
ref: 9

CLAMP

€ 3.00

10

3782000B00
ref: 10
37820-14X50

SWITCH ASSEMBLY

€ 24.50

11

3782014X50
ref: 11

SWITCH ASSY,ENGINE STOP

€ 24.50

12

0940712402
ref: 12

CLAMP(L:120)

€ 3.00

13

0940718403
ref: 13
09407-18402

CLAMP L:165

€ 2.50

14

0940714403
ref: 14

CLAMP(L:125)

€ 2.50
