MAGNETO

RM80 1992 (N) USA (E03)

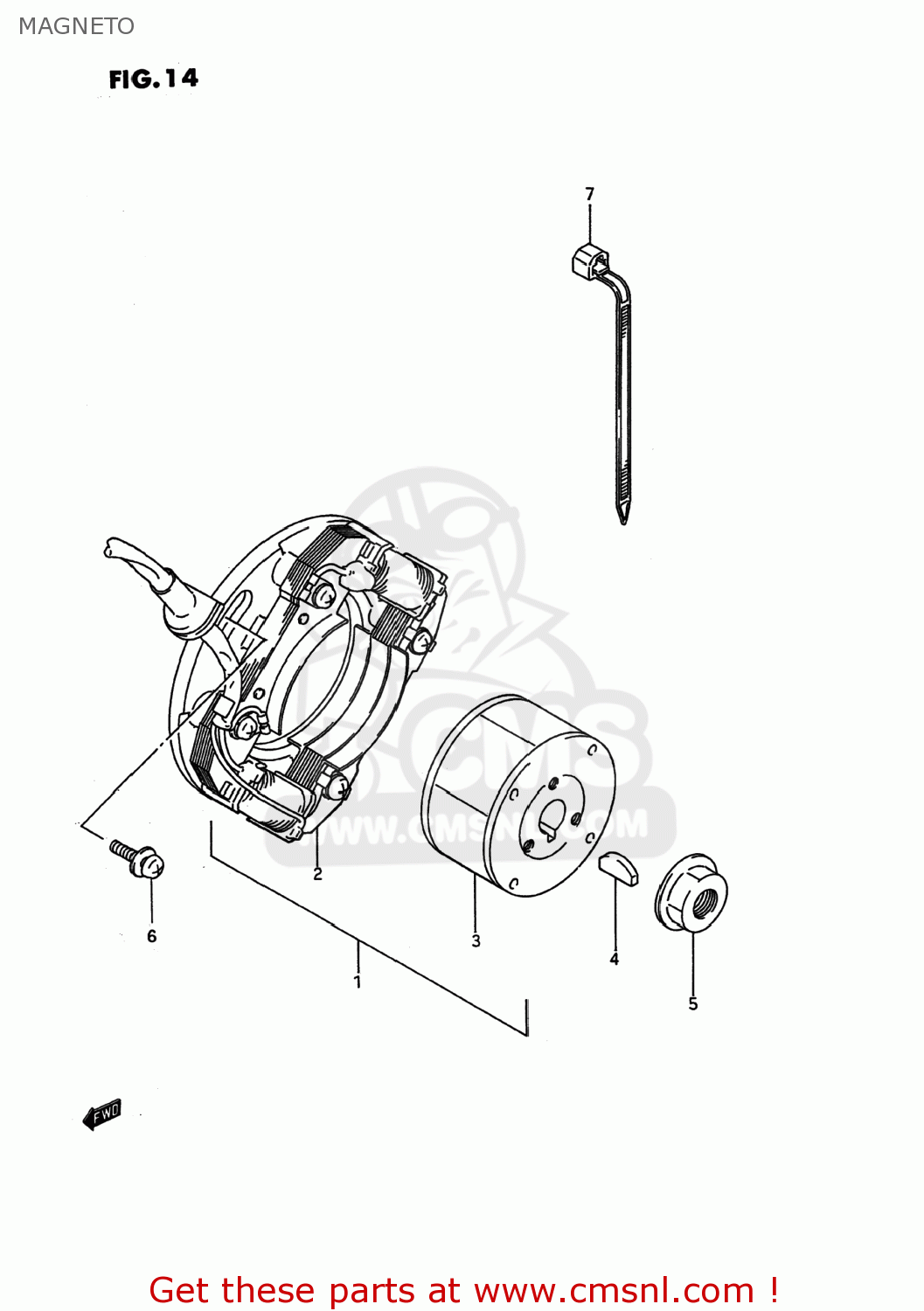

Magneto diagram RM80 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3210002B21
ref: 1-1

MAGNETO ASSEMBLY

€ 446.00

1-2

3210002B30
ref: 1-2
32100-02B32

MAGNETO ASSEMBLY

€ 461.50

1-3

3210002B31
ref: 1-3
32100-02B32

MAGNETO ASSEMBLY

€ 461.50

2-1

3210102B21
ref: 2-1
32101-02B32

STATOR ASSEMBLY

€ 268.00

2-2

3210102B30
ref: 2-2
32101-02B32

STATOR ASSEMBLY

€ 268.00

2-3

3210102B31
ref: 2-3
32101-02B32

STATOR

€ 268.00

3-1

3210202B20
ref: 3-1

ROTOR

€ 206.50

3-2

3210202B30
ref: 3-2
32102-02B31

ROTOR

€ 253.50

4-1

0834131049
ref: 4-1
09420-04008

KEY 4MM

€ 3.50

4-2

0942004008
ref: 4-2

KEY

€ 3.50

5-1

0831616108
ref: 5-1
08316-10107

NUT

€ 2.00

5-2

0831610103
ref: 5-2
08316-1010B

NUT

€ 2.00

0211216203
ref: 6
02112-1620B

SCREW

€ 2.50

7-1

0940714403
ref: 7-1

CLAMP(L:125)

€ 2.50

7-2

0940718403
ref: 7-2
09407-18402

CLAMP L:165

€ 2.50
