FRONT FORK (MODEL G/H/J)

RM80 1992 (N) USA (E03)

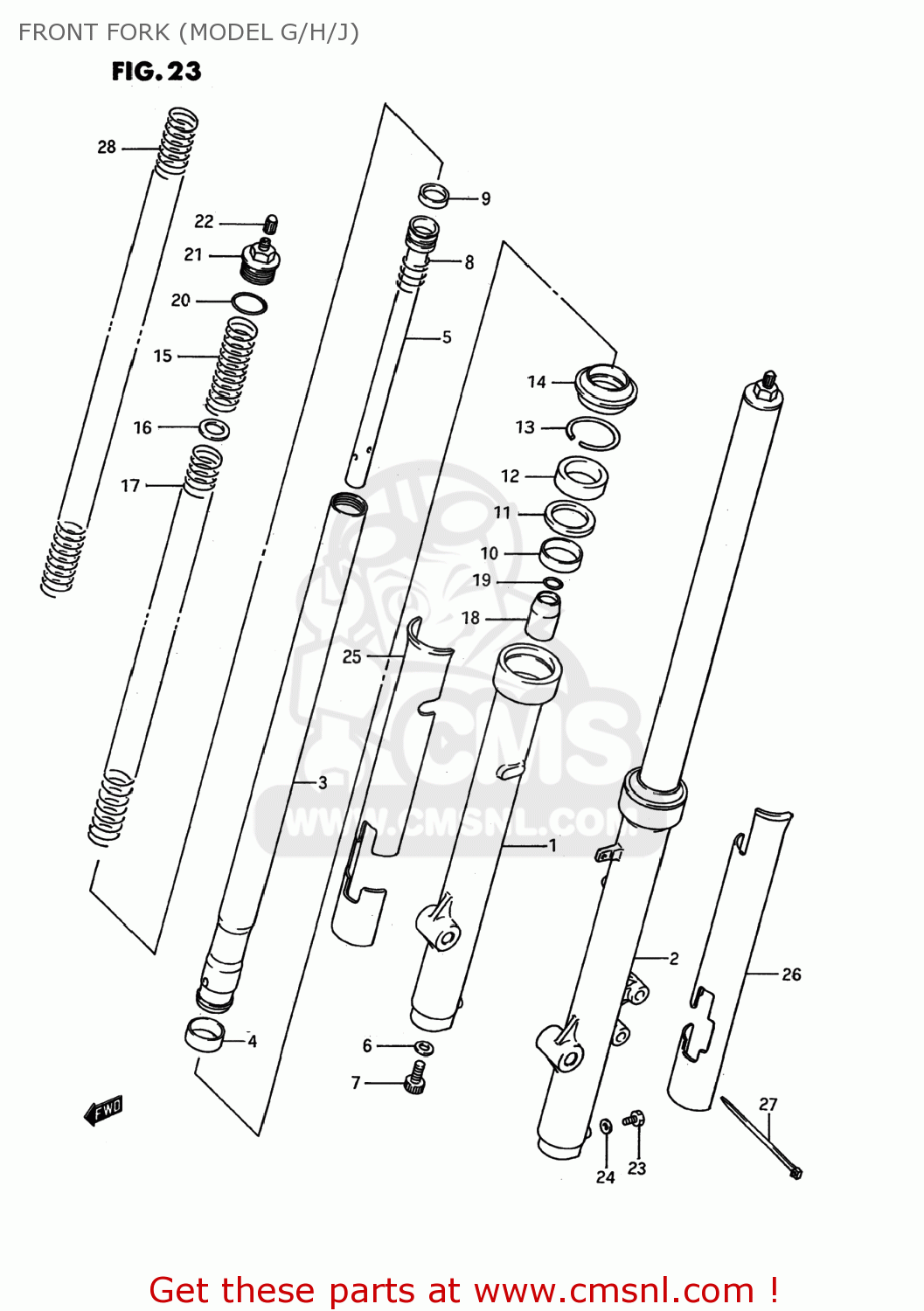

Front fork (model g/h/j) diagram RM80 1992 (N) USA (E03)

FRONT FORK (MODEL G/H/J) RM80 1992 (N) USA (E03)

FRONT FORK (MODEL G/H/J) RM80 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110302B00
ref:

DAMPER ASSEMBLY,RIGHT

€ 0.00



5110402B00
ref:

DAMPER ASSEMBLY,LEFT

€ 0.00

1

5113002B00
ref: 1

TUBE,OUTER,RIGHT

€ 244.50

2

5114002B00
ref: 2

TUBE,OUTER,LEFT

€ 244.50

3

5111002B00
ref: 3

TUBE,FORK,INNER

€ 210.00

4

5112102B00
ref: 4

PISTON

€ 11.50

5

5119402B00
ref: 5

CYLINDER,FRONT FORK

€ 48.50

6

5114802B00
ref: 6

GASKET,FORK CYLINDER (NAS)

€ 1.50

7

5114702B00
ref: 7
51147-02B01

BOLT

€ 20.50

8

5117701A00
ref: 8

SPRING,REBOUND

€ 2.50

9

5119602B00
ref: 9

RING,FRONT FORK PISTON

€ 0.00

10

5115202B00
ref: 10

BUSH,GUIDE

€ 10.00

11

5116802B00
ref: 11

SEAL,SPACER

€ 5.50

12

5115302B00
ref: 12

SEAL,OIL

€ 15.00

13

5115602B00
ref: 13

RING,OIL SEAL STOPPER

€ 4.50

14

5117302B00
ref: 14
51571-26B00

DUST SEAL,FRONT FORK

€ 15.00

15

5117102B00
ref: 15

SPRING,FRONT FORK

€ 6.50

16

5119220510
ref: 16

SPRING,JOINT

€ 2.00

17

5117402B00
ref: 17

O-RING

€ 0.00

18

5119502B00
ref: 18

PIECE,FRONT FORK OIL LOCK

€ 21.00

19

5116901A30
ref: 19

RING,STOPPER

€ 1.50

20

5111743500
ref: 20

O RING

€ 4.50

21

5135102B00
ref: 21

BOLT,FORK INNER TUBE

€ 39.00

22

5129420400
ref: 22

CAP

€ 3.50

23

0110706088
ref: 23
09100-06157

BOLT

€ 2.50

24

5118331030
ref: 24

GASKET,DRAIN,PLUG (NAS)

€ 4.00

25

5120102B00
ref: 25

PROTECTOR,FR FORK,R

€ 42.50

26

5120202B00
ref: 26

PROTECTOR,FR FORK,L

€ 42.50

27

0940720401
ref: 27
09407-25402

CLAMP

€ 4.50

28

5117102B10
ref: 28

SPRING,FRONT FORK

€ 0.00
