CYLINDER (MODEL L)

RM80 1992 (N) USA (E03)

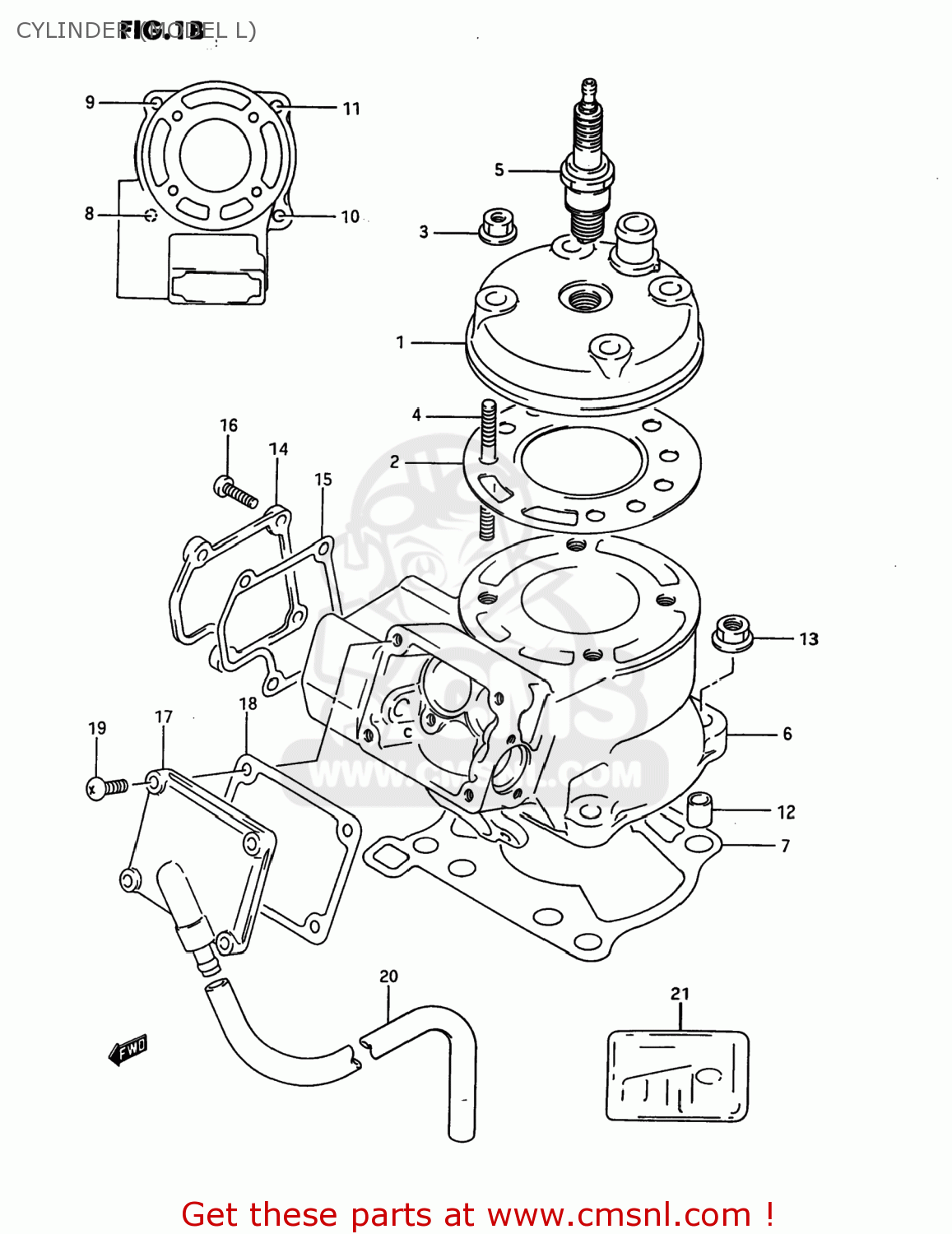

Cylinder (model l) diagram RM80 1992 (N) USA (E03)

CYLINDER (MODEL L) RM80 1992 (N) USA (E03)

CYLINDER (MODEL L) RM80 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1111102B42
ref: 1
11111-02B43

HEAD,CYLINDER

€ 407.50

2

1114102B60
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 24.00

3

0831616088
ref: 3
08316-10087

NUT

€ 2.50

4

0910808225
ref: 4
09108-08144

STUD

€ 4.00

5-1

0948200351
ref: 5-1

SPARK PLUG B9ES

€ 2.50

5-2

0948200160
ref: 5-2

SPARK PLUG W27ES

€ 9.00

6

1121002B620F0
ref: 6

CYLINDER

€ 196.00

7

1124102B40
ref: 7
11241-03B01

GASKET,CYLINDER (NAS)

€ 5.50

8

0910808200
ref: 8
09108-08255

BOLT,STUD

€ 3.00

9

0142108258
ref: 9
01421-0825A

STUD 8X25

€ 2.50

10

0910808142
ref: 10

BOLT,STUD

€ 3.00

11

0910808220
ref: 11

BOLT,STUD

€ 3.50

12

0421111149
ref: 12

PIN

€ 2.00

13

0831616088
ref: 13
08316-10087

NUT

€ 2.50

14

1123102B40
ref: 14

COVER,CYLINDER NO.1

€ 16.00

15

1123302B41
ref: 15
11233-02B42

GASKET,CYLINDER COVER NO.1 (NAS)

€ 4.50

16

0211205168
ref: 16
02112-05167

SCREW

€ 2.50

17

1124002B50
ref: 17
11240-19D20

COVER,CYLINDER

€ 27.00

18

1123801B30H17
ref: 18

GASKET,CYL COVER NO.2 (NAS)

€ 6.00

19

0211205168
ref: 19
02112-05167

SCREW

€ 2.50

20

0935465113300
ref: 20
09354-65113-600

HOSE (6.5X11.5X300)

€ 26.00

21

1140102831
ref: 21
11401-02836

GASKET SET (NAS)

€ 83.00
