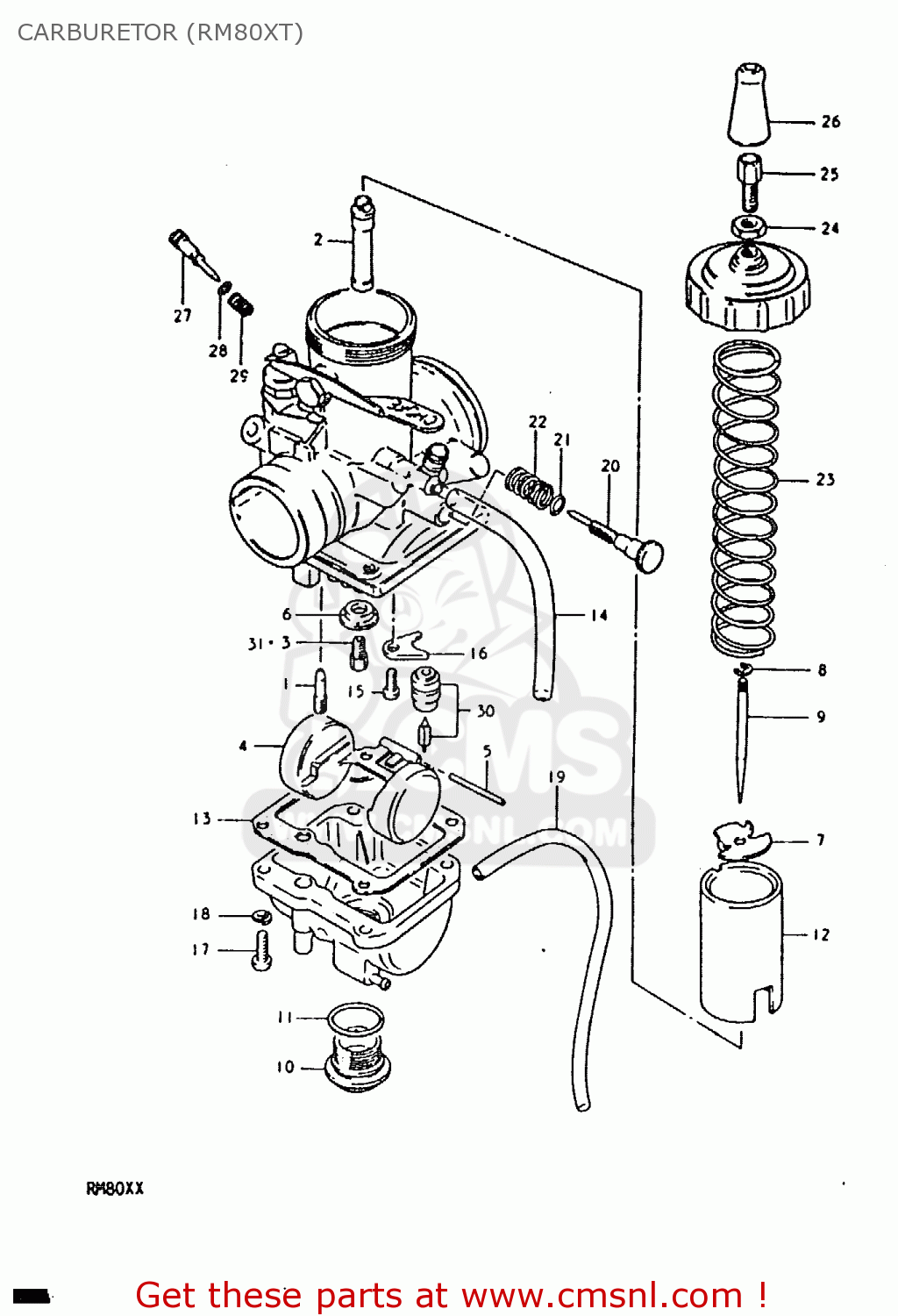

CARBURETOR (RM80XT)

ref

part #

description

quantity

0

1320046940
ref: 0

CARBURETOR ASSEMBLY

€ 0.00

0

1320046950
ref: 0
E17

CARBURETOR ASSY

€ 0.00

1-1

0949250010
ref: 1-1

JET,PILOT(50)

€ 8.00

1-2

0949245009
ref: 1-2
E17

JET,PILOT(45)

€ 8.00

2

0949400229
ref: 2

JET,NEEDLE

€ 13.00

3-1

0949134002
ref: 3-1

JET,MAIN(170)

€ 7.00

3-2

0949132002
ref: 3-2
E17

JET,MAIN(160)

€ 6.50

4

1325228310
ref: 4
*MAIN JET (OPTION) 0

FLOAT

€ 20.50

5

1325401010
ref: 5

PIN,FLOAT

€ 3.00

6

1333128710
ref: 6

RING

€ 8.50

7

1358129500
ref: 7

PLATE,THROTTLE VALVE

€ 4.50

8

1339410010
ref: 8

CLIP

€ 4.50

9

1338346900
ref: 9

NEEDLE,JET(5DP39-4)

€ 11.50

10

1324746900
ref: 10

PLUG

€ 12.50

11

1324629630
ref: 11

O RING

€ 5.00

12-1

1355146900
ref: 12-1

VALVE,THROTTLE

€ 42.00

12-2

1355146910
ref: 12-2
E17

VALVE, THROTTLE (CA:2.5)

€ 0.00

13

1325130520
ref: 13
FROM 13251-30530

GASKET,FLOAT CAHMBER (NAS)

€ 9.50

14

1368339110
ref: 14

HOSE

€ 8.00

15

0211204088
ref: 15

SCREW

€ 1.50

16

1337339110
ref: 16

PLATE

€ 6.50

17

0211204168
ref: 17

SCREW

€ 1.00

18

0832121048
ref: 18

LOCK WASHER

€ 2.00

19

1368446910
ref: 19

HOSE

€ 5.50

20

1326746010
ref: 20

ADJUSTER

€ 10.00

21

1329430010
ref: 21

O-RING

€ 1.50

22

1326846010
ref: 22

SPRING

€ 3.50

23

1357397010
ref: 23
TO 13573-30900

SPRING, THROTTLE VALVE

€ 6.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1357741612
ref: 25

ADJUSTER,CABLE

€ 8.00

26

1368133010
ref: 26

CAP,CABLE ADJUSTER

€ 8.00

27

1326915011
ref: 27

SCREW,PILOT AIR ADJUSTING

€ 12.50

28

1329533010
ref: 28

O RING

€ 4.50

29

1326835010
ref: 29

SPRING

€ 3.00

30

1337029500
ref: 30

VALVE ASSEMBLY,NEEDLE

€ 54.50
