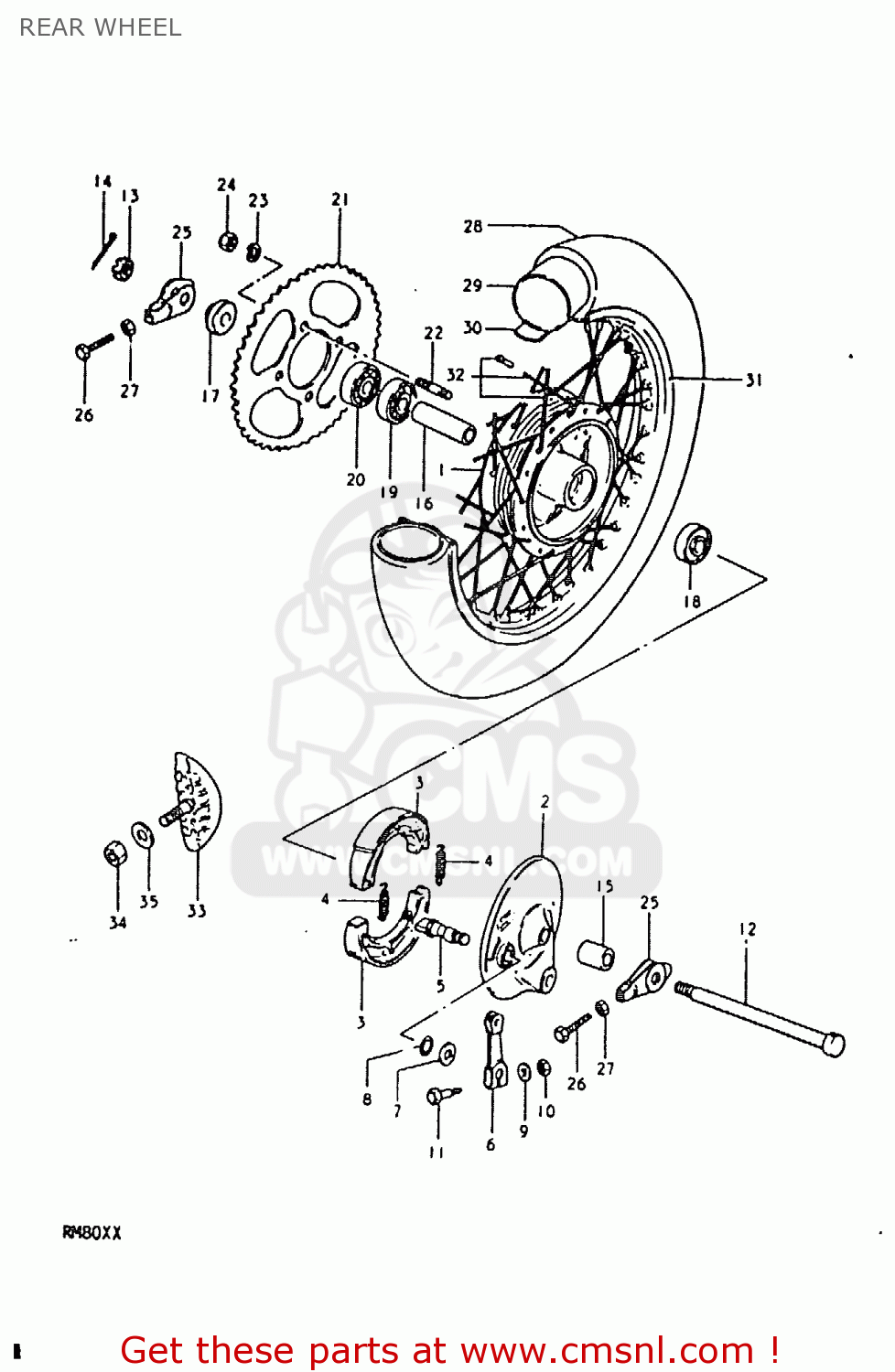

REAR WHEEL

ref

part #

description

quantity

1

6410046811
ref: 1

DRUM SET,REAR HUB

€ 120.50

2

6421046022
ref: 2

PANEL,REAR BRAKE ANCHOR

€ 66.00

3

5441043020
ref: 3

SHOE,BRAKE (MCA)

€ 19.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129302
ref: 5
FROM 54441-29301

CAM,FRONT BRAKE

€ 13.00

6

6445143020
ref: 6

LEVER,RR BRAKE CAM

€ 6.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0910006078
ref: 11

BOLT(6X33)

€ 2.50

12

6471143000
ref: 12

AXLE,REAR

€ 28.50

13

0831431128
ref: 13

NUT 12MM

€ 2.00

14

0411130308
ref: 14

COTTER PIN

€ 1.50

15

0918012077
ref: 15

SPACER (12.1X22X27)

€ 4.50

16

0918012082
ref: 16

SPACER (12.6X19X79)

€ 9.50

17

6475046000
ref: 17

SPACER,RR AXLE,L

€ 6.50

18

0814363017
ref: 18

BEARING

€ 14.50

19

0811363010
ref: 19

BEARING

€ 9.50

20

0812363017
ref: 20

BEARING

€ 13.50

21-1

6451146040
ref: 21-1
MODEL T

SPROCKET,REAR

€ 39.00

21-2

6451120300
ref: 21-2
MODEL X

SPROCKET, REAR (NT:48)

€ 49.50

22

0142110208
ref: 22

BOLT

€ 2.50

23

0832121108
ref: 23

LOCK WASHER

€ 2.00

24

0831921108
ref: 24

NUT

€ 3.00

25

6141013200A
ref: 25

6141013200A

26

0910406002
ref: 26

BOLT(6X38)

€ 2.00

27

0831011068
ref: 27

NUT

€ 2.50

28

6510020300
ref: 28
IRC

TIRE

€ 52.50

29

6520020300
ref: 29

TUBE ASSEMBLY,WHEEL,INNER

€ 26.00

30

5526124010
ref: 30

PROTECTOR,INNER TUBE

€ 9.50

31

6531120300
ref: 31

RIM,REAR WHEEL

€ 0.00

32

6532020300
ref: 32

SPOKE ASSY,RR WHEEL

€ 50.00

33

6527046910
ref: 33

STOPPER,BEAD

€ 30.50

34

0831012088
ref: 34

NUT

€ 2.00

35

0832211088
ref: 35

WASHER

€ 2.00
