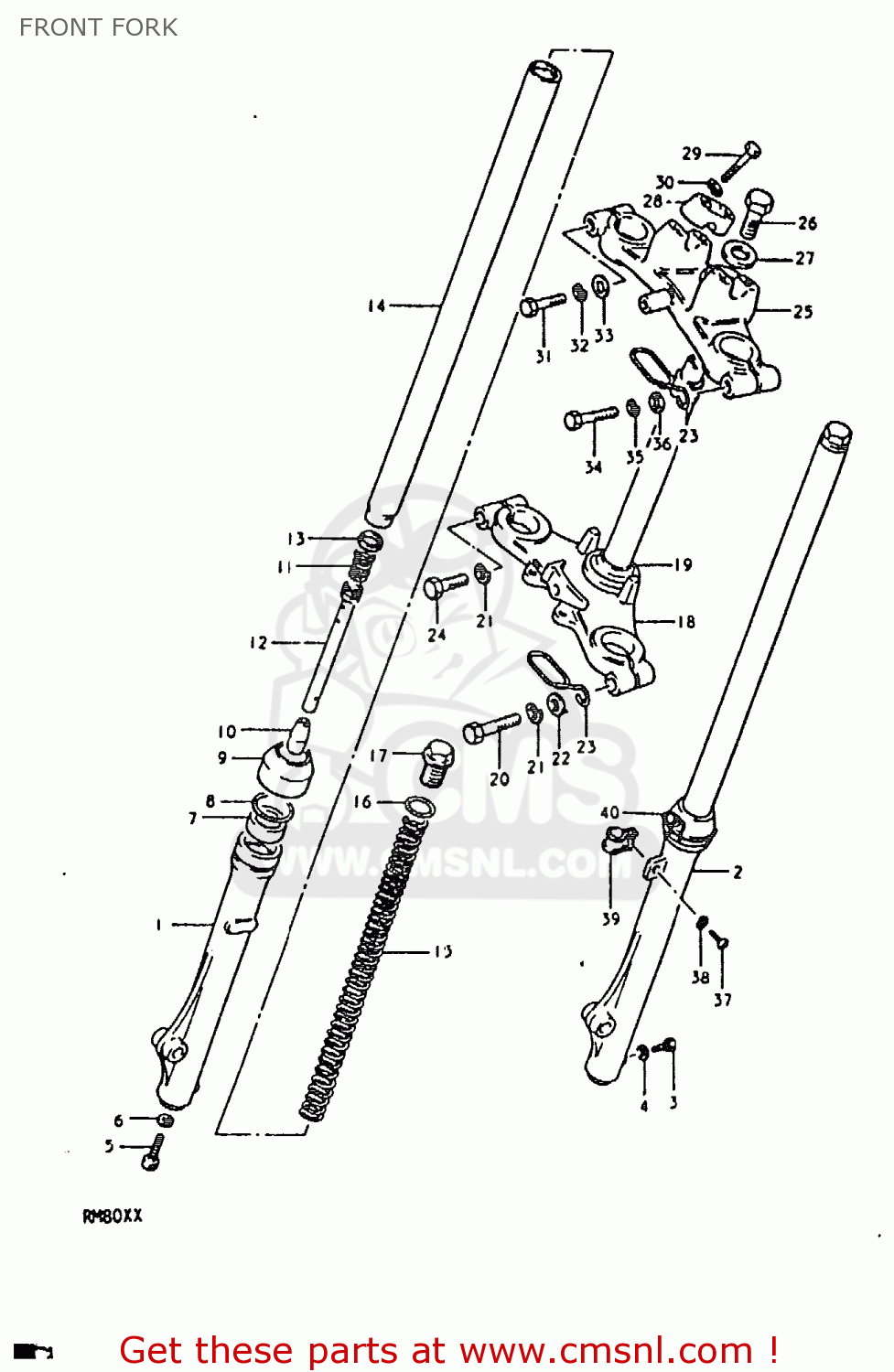

FRONT FORK

ref

part #

description

quantity

0

511002030008C
ref: 0
RM80XT TO 51100-2030

DAMPER SET

€ 0.00

0

511002030108C
ref: 0
RM100XX

DAMPER SET

€ 0.00

1

5113120300
ref: 1

TUBE,OUTER

€ 0.00

2

5114120300
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

0910006011
ref: 3

BOLT(6X8)

€ 2.50

4

5118331030
ref: 4

GASKET,DRAIN,PLUG (NAS)

€ 4.00

5

5114748130
ref: 5

BOLT(8X27)

€ 3.50

6

5114831030
ref: 6

GASKET (NAS)

€ 4.00

7

5115308030
ref: 7

OIL SEAL,FRONT FORK

€ 11.00

8

5115636030
ref: 8

CIRCLIP,FORK OIL SEAL

€ 2.50

9

5117325030
ref: 9

DUST SEAL,FRONT FORK

€ 9.00

10

5119548000
ref: 10

PIECE,OIL LOCK

€ 8.50

11

5117736030
ref: 11

SPRING,REBOUND

€ 4.50

12

5114620300
ref: 12

CYLINDER,FRONT FORK

€ 23.50

13

5119633130
ref: 13

RING,PISTON

€ 7.50

14

5111020300
ref: 14

TUBE,FORK,INNER

€ 109.50

15

5117120300
ref: 15

SPRING,FRONT FORK

€ 0.00

16

5118125030
ref: 16

O RING

€ 3.00

17

5135148000
ref: 17

BOLT

€ 12.00

18

514104691108C
ref: 18

STEM,STEERING

€ 180.00

19

5162133001
ref: 19

RACE,STEERING OUTER LWR

€ 10.00

20

5145127431
ref: 20

BOLT

€ 4.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0832211108
ref: 22

WASHER

€ 2.50

23

5145520301
ref: 23

GUIDE,CABLE

€ 0.00

24

0110710358
ref: 24

BOLT,M10X1.25X

€ 2.50

25

513114691008C
ref: 25

HEAD,STEERING STEM

€ 0.00

26

5135248000
ref: 26

BOLT,STEERING STEM HEAD

€ 12.50

27

5135620300
ref: 27

WASHER

€ 0.00

28

562114668008C
ref: 28

HOLDER,HANDLEBAR

€ 9.50

29

0110708358
ref: 29

BOLT

€ 3.50

30

0832121088
ref: 30

LOCK WASHER

€ 2.00

31

0110708408
ref: 31

BOLT 8X40

€ 3.00

32

0832121088
ref: 32

LOCK WASHER

€ 2.00

33

0832221088
ref: 33

WASHER

€ 2.00

34

0110708458
ref: 34

BOLT 8X45

€ 2.50

35

0832121088
ref: 35

LOCK WASHER

€ 2.00

36

0832221088
ref: 36

WASHER

€ 2.00

37

0211204168
ref: 37

SCREW

€ 1.00

38

0832121048
ref: 38

LOCK WASHER

€ 2.00

39

5145246040
ref: 39

CLIP,FR BRAKE CABLE

€ 5.50

40

5145520310
ref: 40

GUIDE,CABLE

€ 0.00
