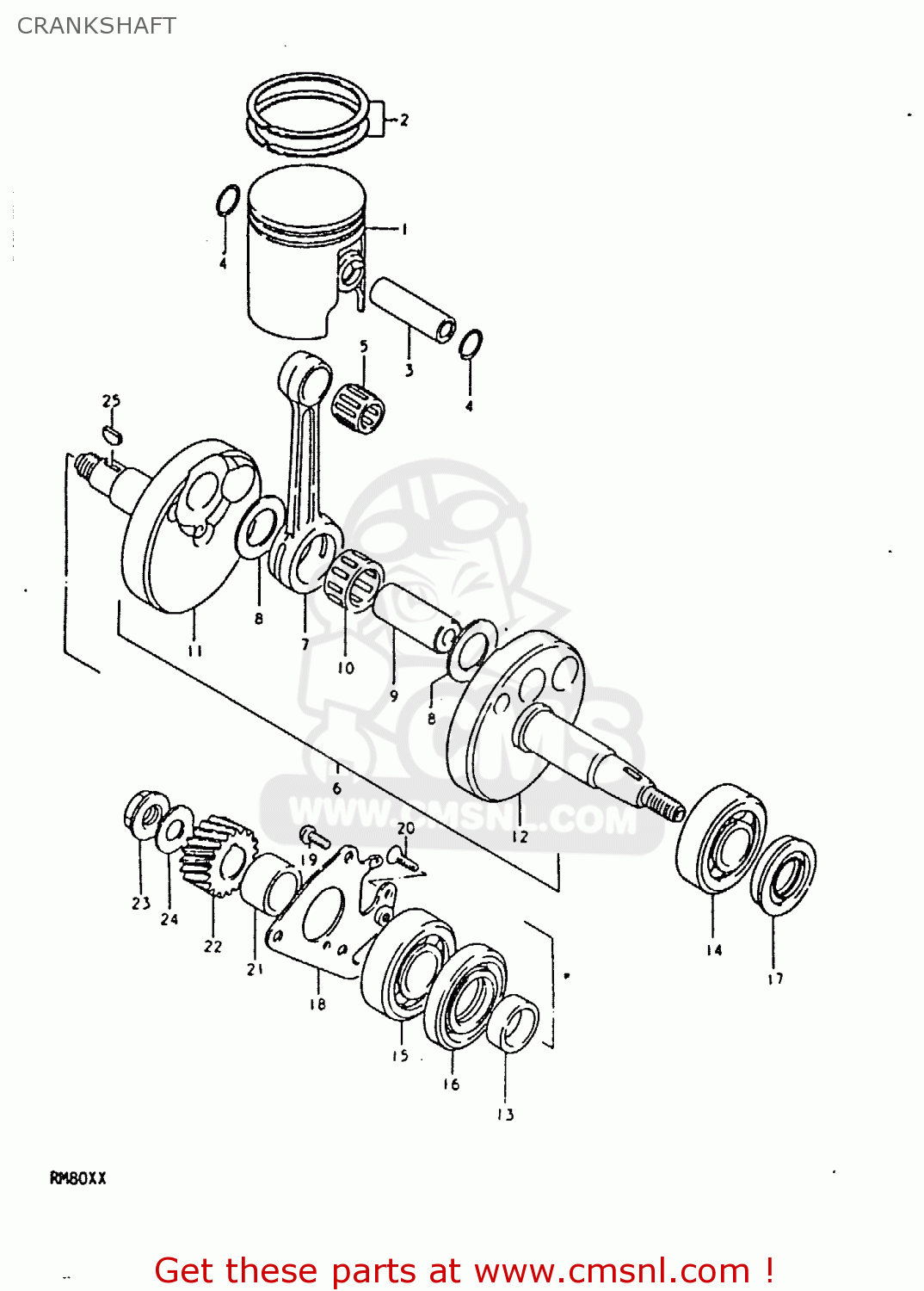

CRANKSHAFT

ref

part #

description

quantity

1-1

1211046010
ref: 1-1
MODEL X, STD

PISTON (48.00MM)

€ 29.50

1-2

1211046010050
ref: 1-2
MODEL X

PISTON (48.50MM)

€ 37.50

1-3

1211046002
ref: 1-3
MODEL T, STD

PISTON (49.00MM)

€ 64.00

1-4

1211046002050
ref: 1-4

PISTON (49.50MM)

€ 87.50

1-5

1211046002100
ref: 1-5

PISTON (50.00MM)

€ 86.00

1-6

1211046002150
ref: 1-6

PISTON (50.50MM)

€ 41.50

2-1

1214046010
ref: 2-1
MODEL X, STD

RING SET,PISTO

€ 44.50

2-2

1214046010050
ref: 2-2
MODEL X

RING SET,PISTON(OS:0.50)

€ 42.00

2-3

1214046000
ref: 2-3
MODEL T, STD

RING SET,PISTON

€ 42.00

2-4

1214046000050
ref: 2-4

RING SET,PISTON (OS:0

€ 41.00

2-5

1214046000100
ref: 2-5

RING SET,PISTON (OS:1

€ 59.00

2-6

1214046000150
ref: 2-6

RING SET,PISTON

€ 59.00

3

1215125000
ref: 3

PIN,PISTON

€ 8.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5

0926312015
ref: 5

BEARING

€ 9.00

6-1

1220046911
ref: 6-1
MODEL T

CRANKSHAFT ASSEMBLY

€ 404.00

6-2

1220020300
ref: 6-2
MODEL X

CRANKSHAFT ASSEMBLY

€ 186.50

7

1216114001
ref: 7

ROD,CONNECTING

€ 42.50

8

0916017005
ref: 8

WASHER

€ 3.50

9-1

1221146900
ref: 9-1
MODEL T

PIN,CRANK

€ 16.00

9-2

1221126400
ref: 9-2
MODEL X

PIN,CRANK

€ 25.50

10

0926317016
ref: 10

BEARING(17X23X14)

€ 17.00

11-1

1222146900
ref: 11-1
MODEL T

CRANKSHAFT

€ 85.00

11-2

1222120300
ref: 11-2
MODEL X

CRANKSHAFT

€ 0.00

12-1

1226146902
ref: 12-1
MODEL T

CRANKSHAFT,LEFT

€ 85.00

12-2

1226120301
ref: 12-2
MODEL X

CRANKSHAFT,LEFT

€ 0.00

13-1

0918020021
ref: 13-1
MODEL T

SPACER(20X26X9)

€ 6.50

13-2

0918020075
ref: 13-2
MODEL X

SPACER

€ 0.00

14-1

0926220019
ref: 14-1
MODEL T

BEARING

€ 28.00

14-2

0926220054
ref: 14-2
MODEL X

BEARING

€ 28.00

15

0926220045
ref: 15

BEARING

€ 21.00

16

0928326013
ref: 16

OIL SEAL

€ 6.50

17

0928320034
ref: 17

SEAL,OIL(19.6X37X8)

€ 6.00

18

1254146900
ref: 18

RETAINER

€ 0.00

19

0211206128
ref: 19

SCREW 6X12

€ 2.00

20

0212206128
ref: 20

SCREW

€ 3.00

21

0918020059
ref: 21

SPACER(20X26X14)

€ 7.50

22

2111146000
ref: 22

GEAR,PRIMARY DRIVE NO.19

€ 31.00

23

0915912005
ref: 23

NUT

€ 4.00

24

0916412016
ref: 24

WASHER

€ 5.00

25

0834131039
ref: 25

KEY

€ 2.00

all assemblies
