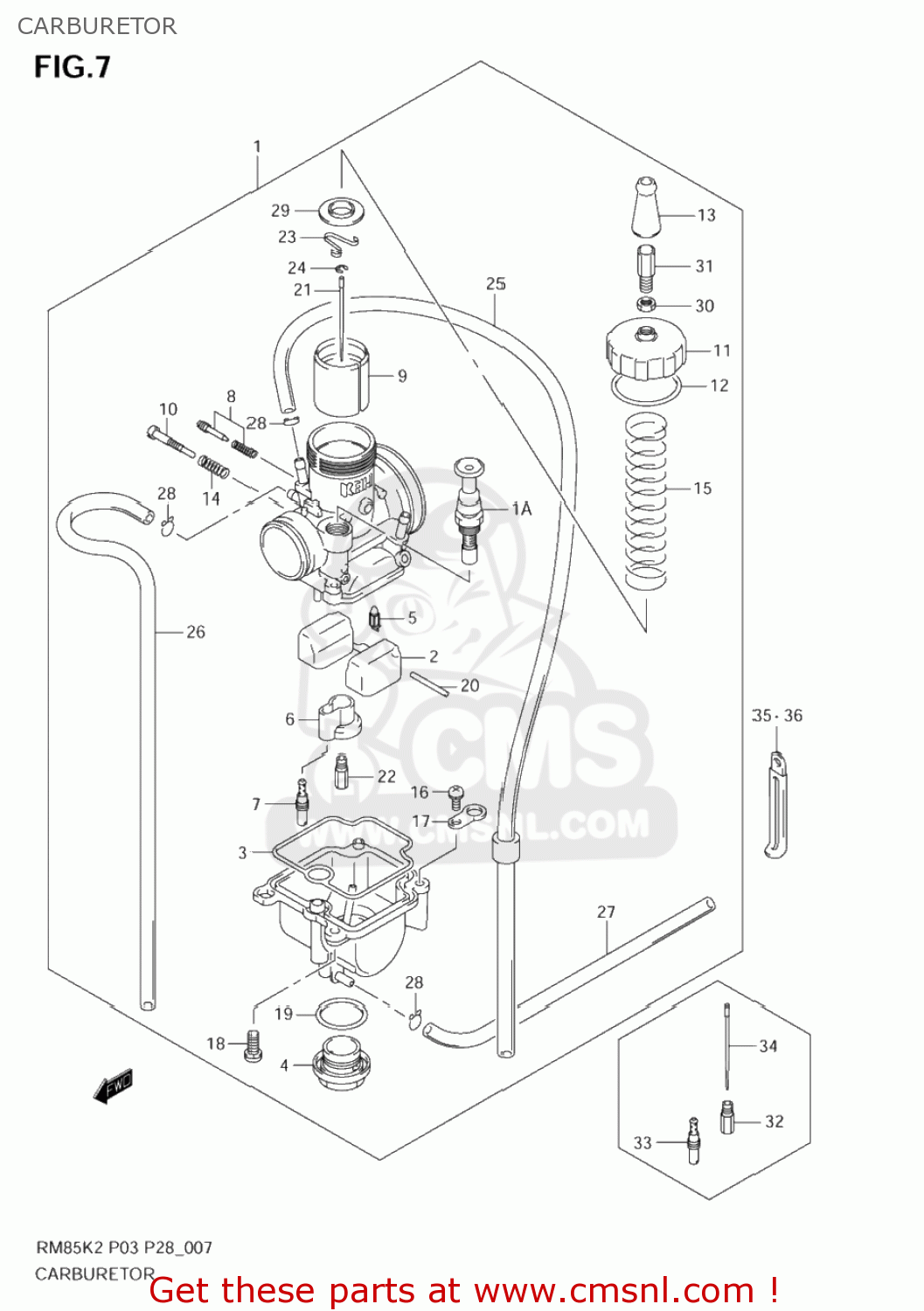

CARBURETOR

ref

part #

description

quantity

1A

1341003B00
ref: 1A

VALVE ASSY,STARTER

€ 45.00

1-1

1320003B10
ref: 1-1

CARBURETOR ASSY

€ 148.50

1-2

1320003B30
ref: 1-2

CARBURETOR ASSY

€ 149.00

2

1325203B00
ref: 2

FLOAT ASSY

€ 17.50

3

1325103B00
ref: 3

GASKET (NAS)

€ 13.50

4

1324728E00
ref: 4

BOLT,DRAIN

€ 15.00

5

1337003B00
ref: 5

VALVE ASSY, NEEDLE

€ 30.00

6

1333103B00
ref: 6

HOLDER,JET

€ 8.50

7

0949250023
ref: 7

JET,SLOW(50)

€ 11.50

8

1326903B00
ref: 8

ADJUST SCREW SET

€ 12.50

9

1355103B00
ref: 9

THROTTLE VALVE

€ 54.50

10

1326703B00
ref: 10

SCREW,STOP

€ 7.50

11

1326103B00
ref: 11

COVER

€ 18.00

12

1326603B00
ref: 12

GASKET (NAS)

€ 3.00

13

1368103B00
ref: 13

CAP

€ 3.00

14

1326803B00
ref: 14

SPRING

€ 4.00

15

1357303B00
ref: 15

SPRING

€ 8.00

16

0211214087
ref: 16

SCREW

€ 1.50

17

1369328E00
ref: 17

PLATE

€ 4.50

18

1325303B00
ref: 18
13601-14F80

SCREW

€ 2.00

19

1324628E00
ref: 19

O RING

€ 3.50

20

1325492311
ref: 20

PIN,FLOAT

€ 2.00

21

1338303B20
ref: 21

NEEDLE(24NAAH)

€ 12.00

22-1

0949125019
ref: 22-1

JET,MAIN(125)

€ 9.00

22-2

0949125020
ref: 22-2

JET,MAIN(128)

€ 7.50

23

1339803B00
ref: 23

CLIP

€ 4.50

24

1339428E00
ref: 24

CLIP,NEEDLE

€ 3.50

25

1368603B00
ref: 25

PIPE ASSY

€ 5.50

26

1368636E00
ref: 26

HOSE(4X7X620)

€ 7.50

27

1368636E00
ref: 27

HOSE(4X7X620)

€ 7.50

28

0940106101
ref: 28

CLIP

€ 2.50

29

1362903B00
ref: 29

PLATE

€ 2.50

30

1366103B00
ref: 30

NUT

€ 2.50

31

1357703B00
ref: 31

ADJUST BOLT

€ 4.50

32-1

0949123027
ref: 32-1

JET,MAIN(115)

€ 9.00

32-10

0949127017
ref: 32-10

JET,MAIN(138)

€ 9.00

32-11

0949128019
ref: 32-11

JET,MAIN(140)

€ 9.00

32-12

0949128020
ref: 32-12

JET,MAIN(142)

€ 9.00

32-13

0949129014
ref: 32-13

JET,MAIN(145)

€ 9.00

32-2

0949123028
ref: 32-2

JET,MAIN(118)

€ 9.00

32-3

0949124030
ref: 32-3

JET,MAIN(120)

€ 8.50

32-4

0949124031
ref: 32-4

JET,MAIN(122)

€ 9.00

32-5

0949125019
ref: 32-5

JET,MAIN(125)

€ 9.00

32-6

0949125020
ref: 32-6

JET,MAIN(128)

€ 7.50

32-7

0949126017
ref: 32-7

JET,MAIN(130)

€ 8.50

32-8

0949126018
ref: 32-8

JET,MAIN(132)

€ 10.50

32-9

0949127016
ref: 32-9

JET,MAIN(135)

€ 10.00

33-1

0949245032
ref: 33-1

JET,PILOT(45)

€ 9.00

33-2

0949248013
ref: 33-2

JET,SLOW(48)

€ 9.50

33-3

0949250023
ref: 33-3

JET,SLOW(50)

€ 11.50

33-4

0949252011
ref: 33-4

JET,SLOW(52)

€ 11.50

33-5

0949255017
ref: 33-5

JET,SLOW(55)

€ 11.50

33-6

0949258001
ref: 33-6

JET,PILOT(58)

€ 9.50

34-1

1338303B00
ref: 34-1

NEEDLE(24NAAF)

€ 10.50

34-10

1338303B90
ref: 34-10

NEEDLE(24NCDK)

€ 10.50

34-2

1338303B10
ref: 34-2

NEEDLE(24NAAG)

€ 10.50

34-3

1338303B20
ref: 34-3

NEEDLE(24NAAH)

€ 12.00

34-4

1338303B30
ref: 34-4

NEEDLE(24NAAJ)

€ 10.50

34-5

1338303B40
ref: 34-5

NEEDLE(24NAAK)

€ 10.50

34-6

1338303B50
ref: 34-6

NEEDLE(24NCDF)

€ 10.50

34-7

1338303B60
ref: 34-7

NEEDLE(24NCDG)

€ 10.50

34-8

1338303B70
ref: 34-8

NEEDLE(24NCDH)

€ 10.50

34-9

1338303B80
ref: 34-9

NEEDLE(24NCDJ)

€ 10.50

35

0940406429
ref: 35

CLAMP(L:45)

€ 2.50

36

0940408206
ref: 36

CLAMP(L:65 T:0.8)

€ 3.50

all assemblies
