FRONT WHEEL (RM85LK5/LK6)
RM85 2006 (K6) USA (E03)

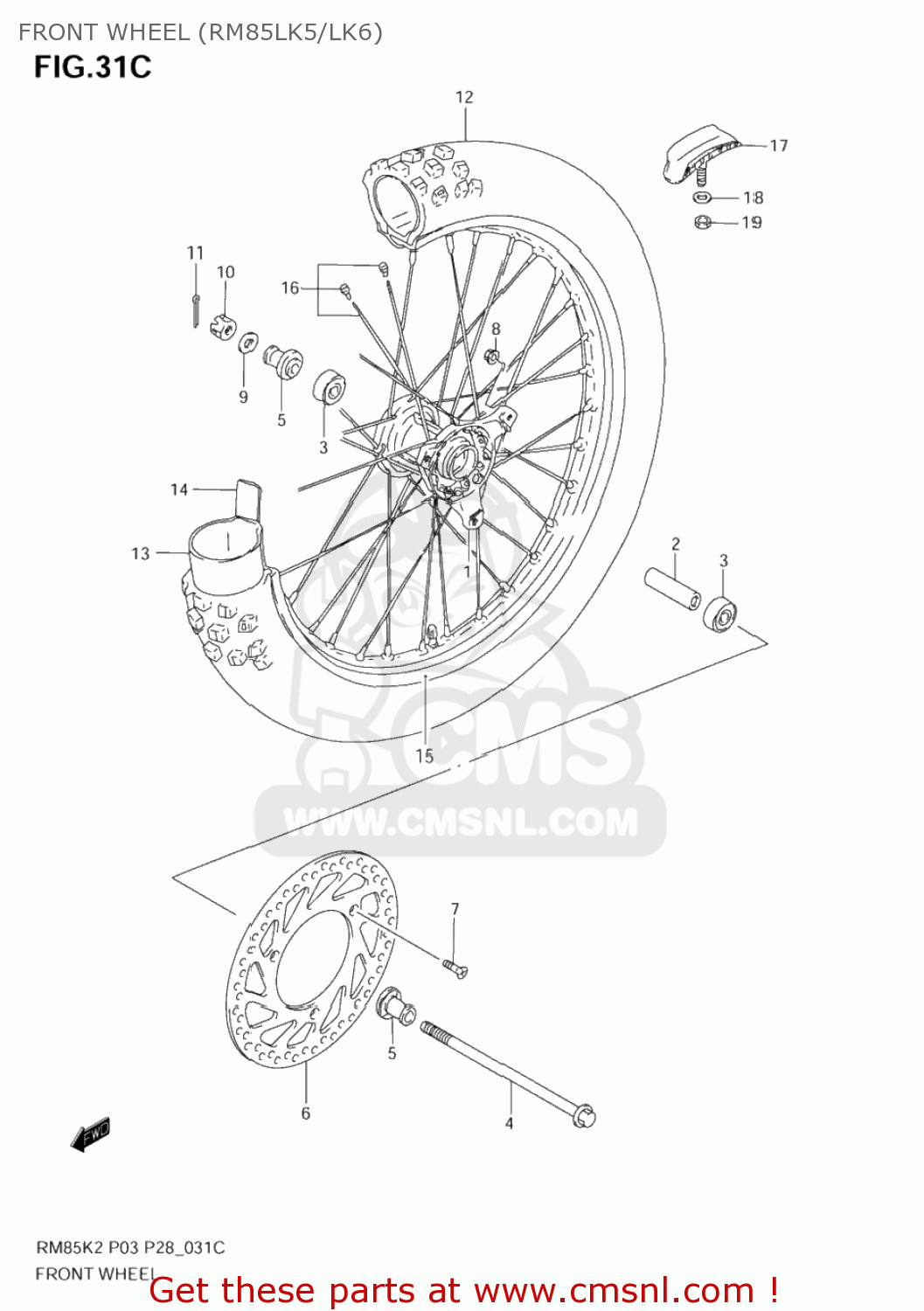

Front wheel (rm85lk5/lk6) diagram RM85 2006 (K6) USA (E03)
FRONT WHEEL (RM85LK5/LK6) RM85 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411102B42
ref: 1
HUB,FR WHEEL
€ 151.00
2
5473102B40
ref: 2
SPACER,FR HUB BEARING
€ 7.00
2
5473102B40
ref: 2
SPACER,FR HUB BEARING
€ 7.00
3
0813362017
ref: 3
BEARING (12X32X10)
€ 15.00
4
5471103B00
ref: 4
AXLE,FR
€ 53.50
5
5474002B40
ref: 5
SPACER,FR AXLE
€ 9.50
6
5922103B00
ref: 6
DISC,FR BRAKE
€ 97.50
7
0912606009
ref: 7
SCREW(6X22)
€ 2.00
8
0831931067
ref: 8
NUT
€ 2.50
9
0821112204
ref: 9
WASHER
€ 3.50
10
0831440123
ref: 10
08314-4012A
NUT,M12X1.25X1
€ 2.50
11
0411120208
ref: 11
04111-2020A
PIN 20X20
€ 1.50
12
5511003B50
ref: 12
TIRE,FR(70/100 19 42M D737F)
€ 98.50
12
5511003B50
ref: 12
TIRE,FR(70/100 19 42M D737F)
€ 98.50
13
5520003B40
ref: 13
TUBE ASSY,WHEEL INNER
€ 23.50
14
5526103B30
ref: 14
PROTECTOR,WHL INR TUBE
€ 4.50
15
5531103B60
ref: 15
RIM,FR WHEEL(1.40X19)
€ 185.00
16
5532003B60
ref: 16
SPOKE SET,FR WHEEL
€ 35.00
17
6527028600
ref: 17
STOPPER,BEAD
€ 26.50
18
0832201083
ref: 18
08322-0108A
WASHER
€ 1.50
19
0831000083
ref: 19
08310-0008A
NUT
€ 1.50
