REAR SHOCK ABSORBER (MODEL K2/K3)

RM85 2006 (K6) USA (E03)

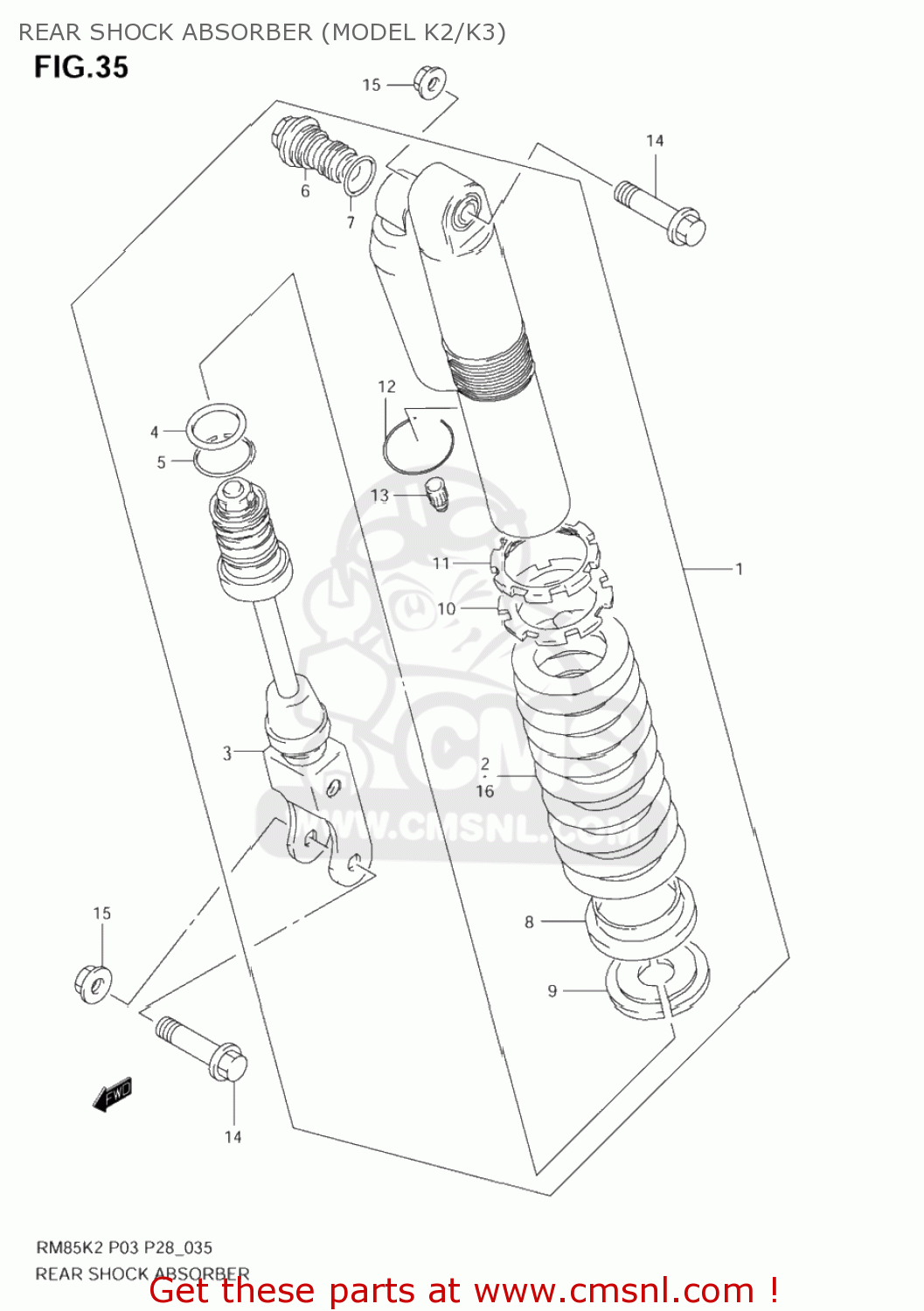

Rear shock absorber (model k2/k3) diagram RM85 2006 (K6) USA (E03)

REAR SHOCK ABSORBER (MODEL K2/K3) RM85 2006 (K6) USA (E03)
REAR SHOCK ABSORBER (MODEL K2/K3) RM85 2006 (K6) USA (E03)
REAR SHOCK ABSORBER (MODEL K2/K3) RM85 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
6210003B5037W
ref: 1-1
ABSORBER ASSY,RR SHOCK
€ 854.00
1-2
6210003B4037W
ref: 1-2
ABSORBER ASSY,RR SHOCK
€ 955.50
1-3
6210003B3037W
ref: 1-3
ABSORBER ASSY,RR SHOCK
€ 772.50
2
6221103B30
ref: 2
SPRING,RR(K=4.9)
€ 196.00
3
6212003B30
ref: 3
ROD,PISTON
€ 416.00
4
6215303B30
ref: 4
O RING
€ 4.50
5
6227903B30
ref: 5
RING,STOPPER
€ 4.00
6
6213003B30
ref: 6
BOLT,PLUG
€ 72.00
7
5117736E20
ref: 7
O RING
5117736E20
€ 2.50
8
6224917C00
ref: 8
SEAT,SPRING
6224917C00
€ 14.00
9
6222517C00
ref: 9
SEAT,SPRING STOPPER
6222517C00
€ 21.50
10
6219120400
ref: 10
ADJUSTER,SPRING
€ 19.50
11
6219420400
ref: 11
NUT,SPRING ADJUSTER
€ 23.50
12
6227803B30
ref: 12
RING,STOPPER
€ 4.50
13
5129420400
ref: 13
CAP
5129420400
€ 3.50
14
6264814500
ref: 14
BOLT,RR CUSHION ROD UPR
6264814500
€ 3.00
15
0915910058
ref: 15
09159-10115
NUT
0915910058
€ 4.00
16-1
62211SHOWA001
ref: 16-1
SPRING, REAR (K=4.6) (SOFT)
€ 0.00
16-2
6221103B00
ref: 16-2
SPRING(SOFT)
€ 192.50
16-3
6221103B10
ref: 16-3
SPRING(HARD)
6221103B10
€ 192.50
16-4
62211SHOWA002
ref: 16-4
SPRING, REAR (K=5.2) (HARD)
€ 0.00
