FRONT FORK DAMPER (MODEL K5/K6)

RM85 2006 (K6) USA (E03)

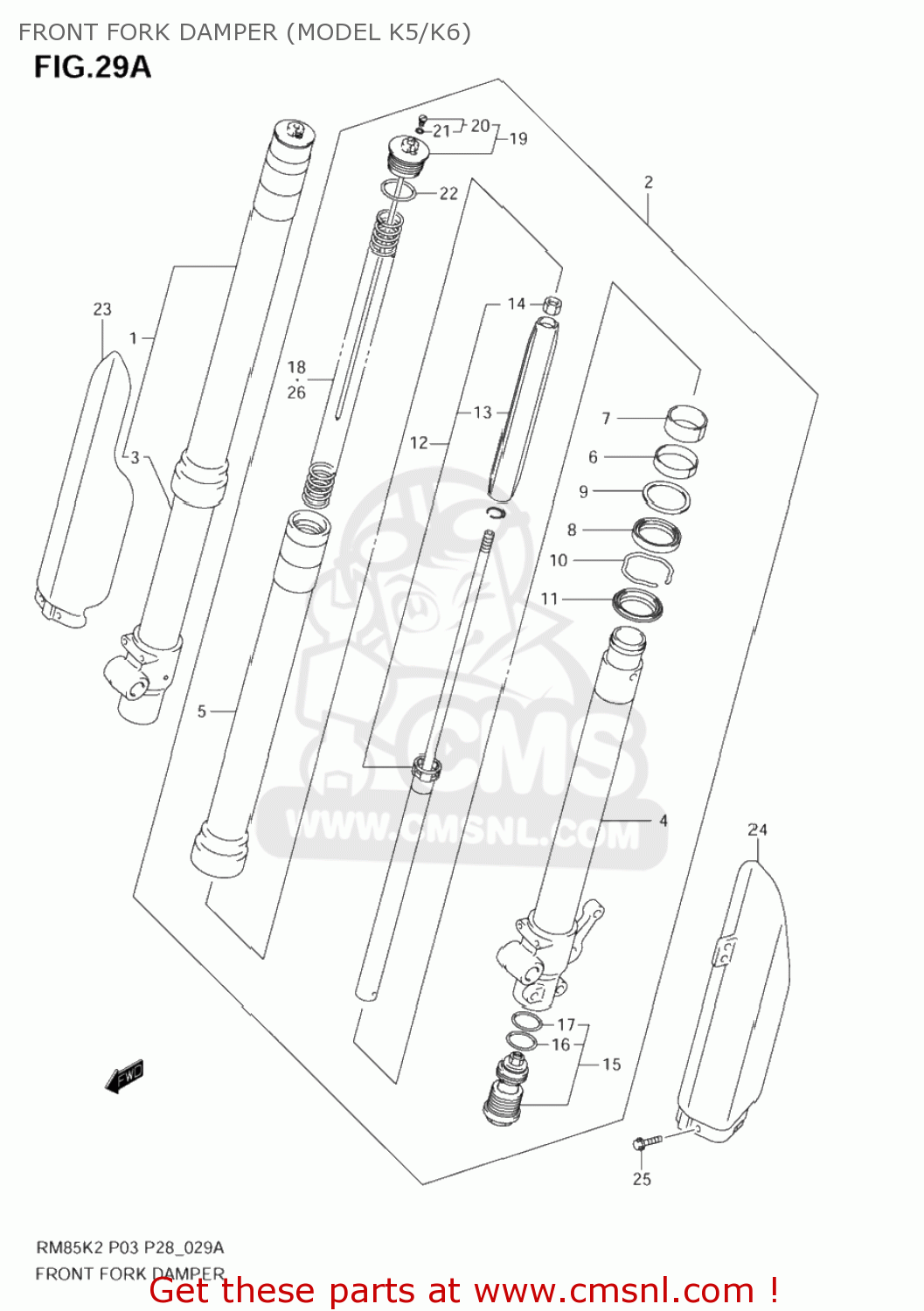

Front fork damper (model k5/k6) diagram RM85 2006 (K6) USA (E03)

FRONT FORK DAMPER (MODEL K5/K6) RM85 2006 (K6) USA (E03)
FRONT FORK DAMPER (MODEL K5/K6) RM85 2006 (K6) USA (E03)
FRONT FORK DAMPER (MODEL K5/K6) RM85 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5110303B70
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,115.00
2
5110403B70
ref: 2
DAMPER ASSY,FR FORK,L
€ 1,115.00
3
5111003B30
ref: 3
TUBE,INNER,R
€ 285.00
4
5112003B70
ref: 4
TUBE,INNER,L
€ 285.00
5
5113003B30
ref: 5
TUBE,OUTER
€ 418.50
6
5116703B30
ref: 6
BUSH,GUIDE
5116703B30
€ 10.50
7
5112103B30
ref: 7
BUSH,SLIDE
5112103B30
€ 10.50
8
5115303B30
ref: 8
OIL SEAL,FRONT FORK
5115303B30
€ 15.00
9
5115803B30
ref: 9
SPACER,SEAL
5115803B30
€ 5.50
10
5115603B30
ref: 10
RING,STOPPER
5115603B30
€ 3.00
11
5117303B30
ref: 11
SEAL,DUST
5117303B30
€ 14.00
12
5119003B70
ref: 12
CYLINDER
€ 364.00
13
5117203B30
ref: 13
GUIDE,SPRING
5117203B30
€ 14.50
14
5112903B30
ref: 14
NUT
€ 4.00
15
5117003B70
ref: 15
BOLT,CTR
€ 118.50
16
5117736E20
ref: 16
O RING
5117736E20
€ 2.50
17
5117503B30
ref: 17
O RING
5117503B30
€ 3.00
18
5117103B50
ref: 18
SPRING,FR(K=0.28)
€ 42.50
19
5135103B70
ref: 19
BOLT,FORK
5135103B70
€ 84.00
20
5135727C40
ref: 20
BOLT,PLUG
5135727C40
€ 5.50
21
5111719C10
ref: 21
O RING
5111719C10
€ 2.00
22
5111729EA0
ref: 22
O RING
5111729EA0
€ 5.50
23
5150103B10
ref: 23
PROTECTOR,FR FORK,R
€ 57.50
24
5151103B20
ref: 24
PROTECTOR,FR FORK,L
5151103B20
€ 46.50
25
0910306256
ref: 25
BOLT(6X10)
0910306256
€ 2.00
26-1
5117103B30
ref: 26-1
SPRING,FR(K=0.26)
€ 42.50
26-2
5117103B60
ref: 26-2
SPRING,FR(K=0.30)
€ 47.50
