AIR CLEANER
RM85L 2002 (K2) USA (E03)

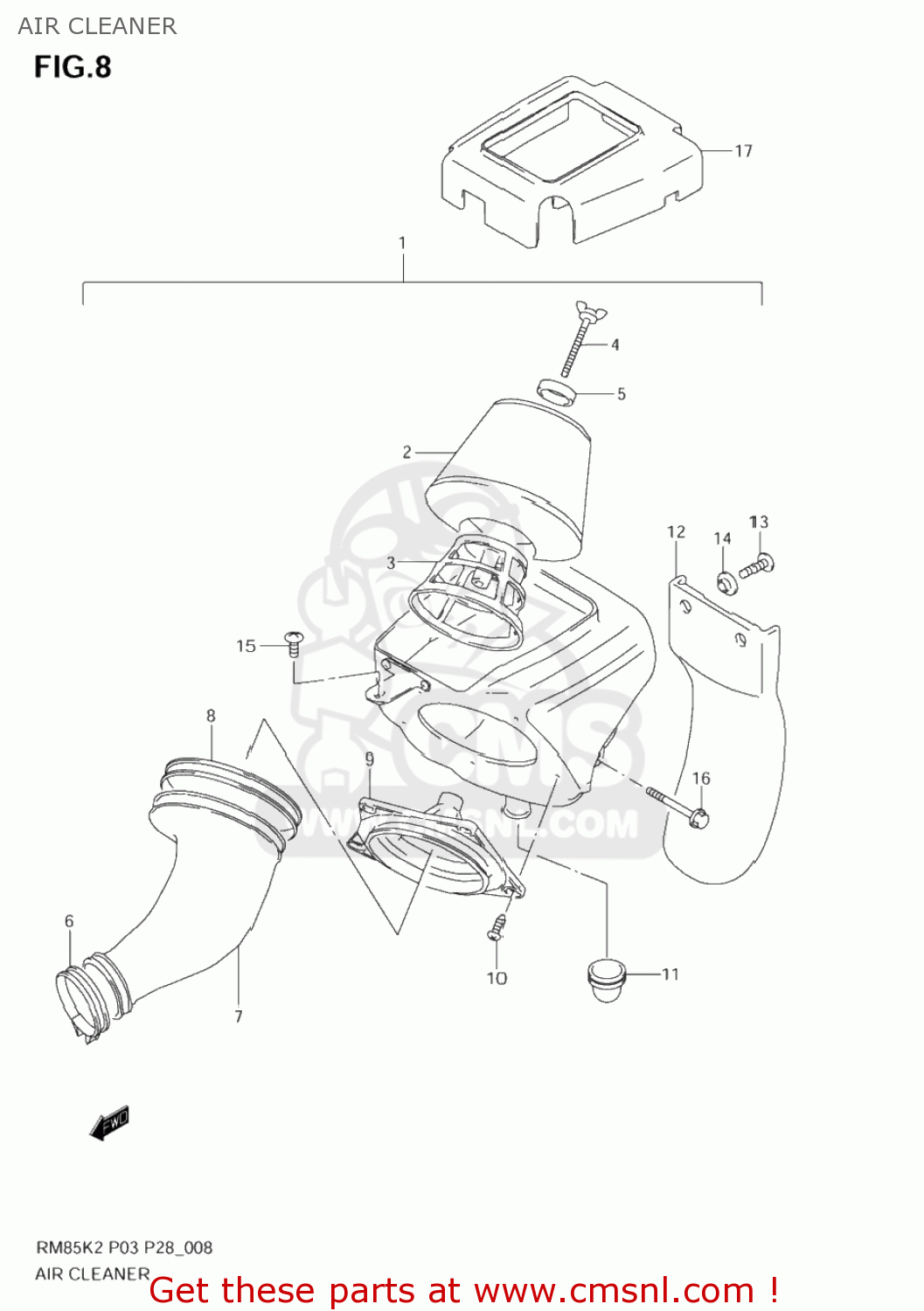

Air cleaner diagram RM85L 2002 (K2) USA (E03)
AIR CLEANER RM85L 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370003B00
ref: 1
CLEANER ASSY,AIR
€ 162.50
2
1378002B00
ref: 2
FILTER ASSY
€ 24.50
3
1379102B00
ref: 3
HOLDER
€ 13.00
4
1383102B00
ref: 4
BOLT,WING
€ 4.00
5
1379213A01
ref: 5
WASHER,AIR CLEANER
€ 3.00
6
0940256208
ref: 6
09402-56901
CLAMP
€ 3.50
7
1388103B00
ref: 7
TUBE,OUTLET
€ 24.00
8
0940200303
ref: 8
CLAMP
€ 5.00
9
1379002B10
ref: 9
BASE,FILTER
€ 12.00
10
0324205123
ref: 10
03241-0512A
SCREW
€ 1.50
11
1387318900
ref: 11
HOSE,AIR CLEANER DRAIN
€ 4.00
12
1373802B00
ref: 12
GUARD,MUD
€ 12.00
13
0214206167
ref: 13
SCREW
€ 2.00
14
1383802B00
ref: 14
COLLAR
€ 2.50
15
0214206123
ref: 15
02142-0612A
SCREW 6X12
€ 2.00
16
0910306242
ref: 16
BOLT(6X45)
€ 4.00
17-1
1373902B14
ref: 17-1
MUDGUARD,B
€ 26.50
17-2
1373902B20
ref: 17-2
MUDGUARD,B
€ 16.50
