REAR SWINGING ARM (MODEL K2)

RM85L 2002 (K2) USA (E03)

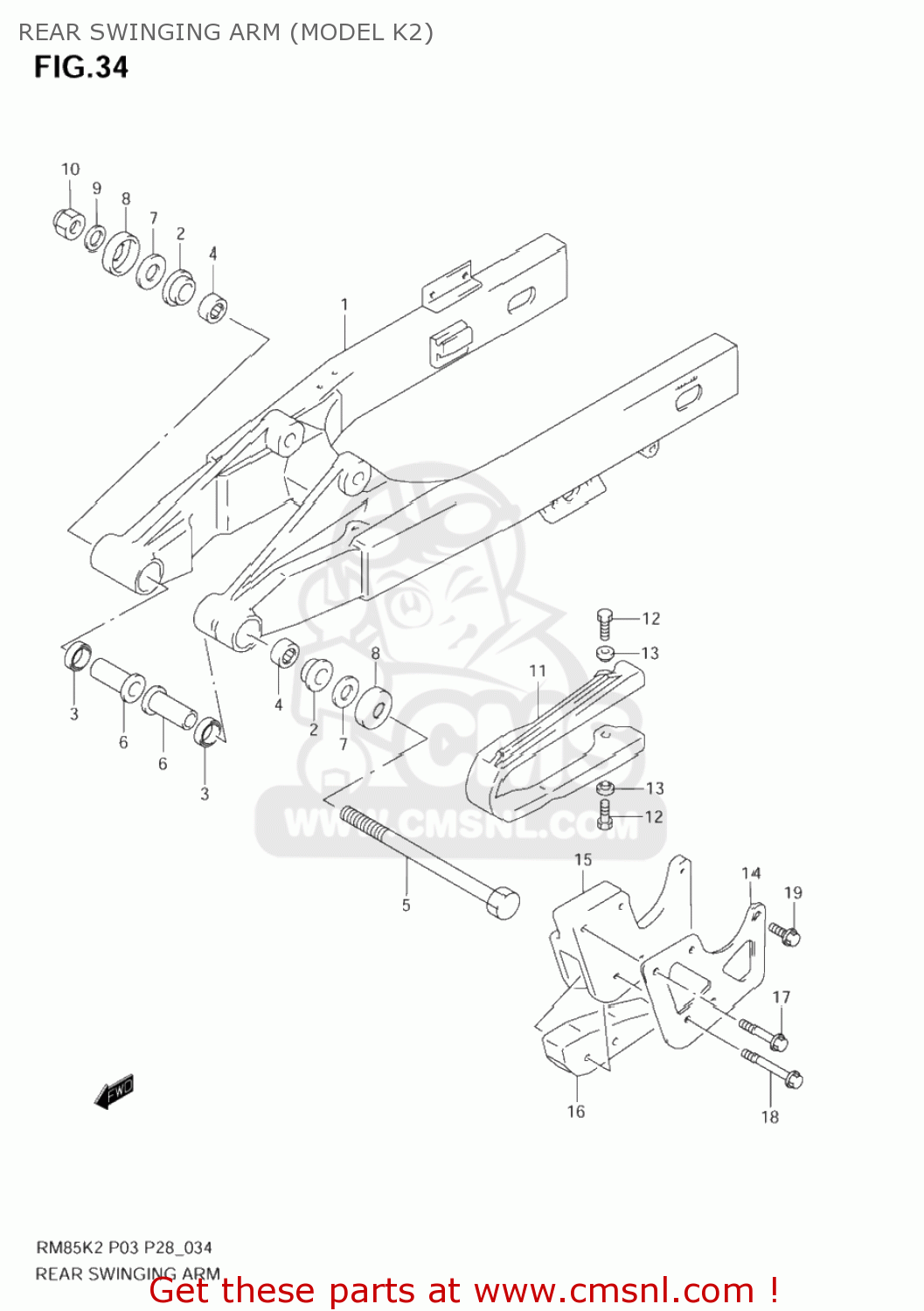

Rear swinging arm (model k2) diagram RM85L 2002 (K2) USA (E03)

REAR SWINGING ARM (MODEL K2) RM85L 2002 (K2) USA (E03)
REAR SWINGING ARM (MODEL K2) RM85L 2002 (K2) USA (E03)
REAR SWINGING ARM (MODEL K2) RM85L 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6100003B21
ref: 1
SWINGINGARM ASSY,RR
€ 149.50
2
6126102B00
ref: 2
BUSHING,SWGARM PIVOT
6126102B00
€ 9.50
3
0928517001
ref: 3
SEAL,OIL(17X24X3)
0928517001
€ 3.50
4
0926317038
ref: 4
BEARING(17X24X30)
0926317038
€ 21.00
5
6121102B40
ref: 5
SHAFT,RR SWINGINGARM PIVOT
6121102B40
€ 10.00
6
6125102B40
ref: 6
SPACER,RR SWGARM PIVOT
6125102B40
€ 14.00
7
0821112282
ref: 7
WASHER
0821112282
€ 2.00
8
6126203B00
ref: 8
COVER,SWGARM PIVOT
6126203B00
€ 5.00
9
0832201123
ref: 9
08322-0112B
WASHER
€ 2.00
10
0831921128
ref: 10
08319-2112A
NUT 12MM
0831921128
€ 4.00
11
6127302B20
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
6127302B20
€ 24.50
12
0910306234
ref: 12
BOLT(6X16)
0910306234
€ 2.50
13
0916906057
ref: 13
WASHER
0916906057
€ 4.00
14
6134202B40
ref: 14
PLATE,GUIDE CHAIN OUTER
6134202B40
€ 15.00
15
6134302B40
ref: 15
GUIDE,CHAIN
6134302B40
€ 19.00
16
6134802B20
ref: 16
DEFENSE,CHAIN GUIDE
6134802B20
€ 11.00
17
0910306251
ref: 17
BOLT(6X30)
0910306251
€ 2.50
18
0910306241
ref: 18
BOLT(6X40)
0910306241
€ 2.50
19
0910306234
ref: 19
BOLT(6X16)
0910306234
€ 2.50
