REAR MASTER CYLINDER (MODEL K2/K3/K4)
RM85L 2002 (K2) USA (E03)

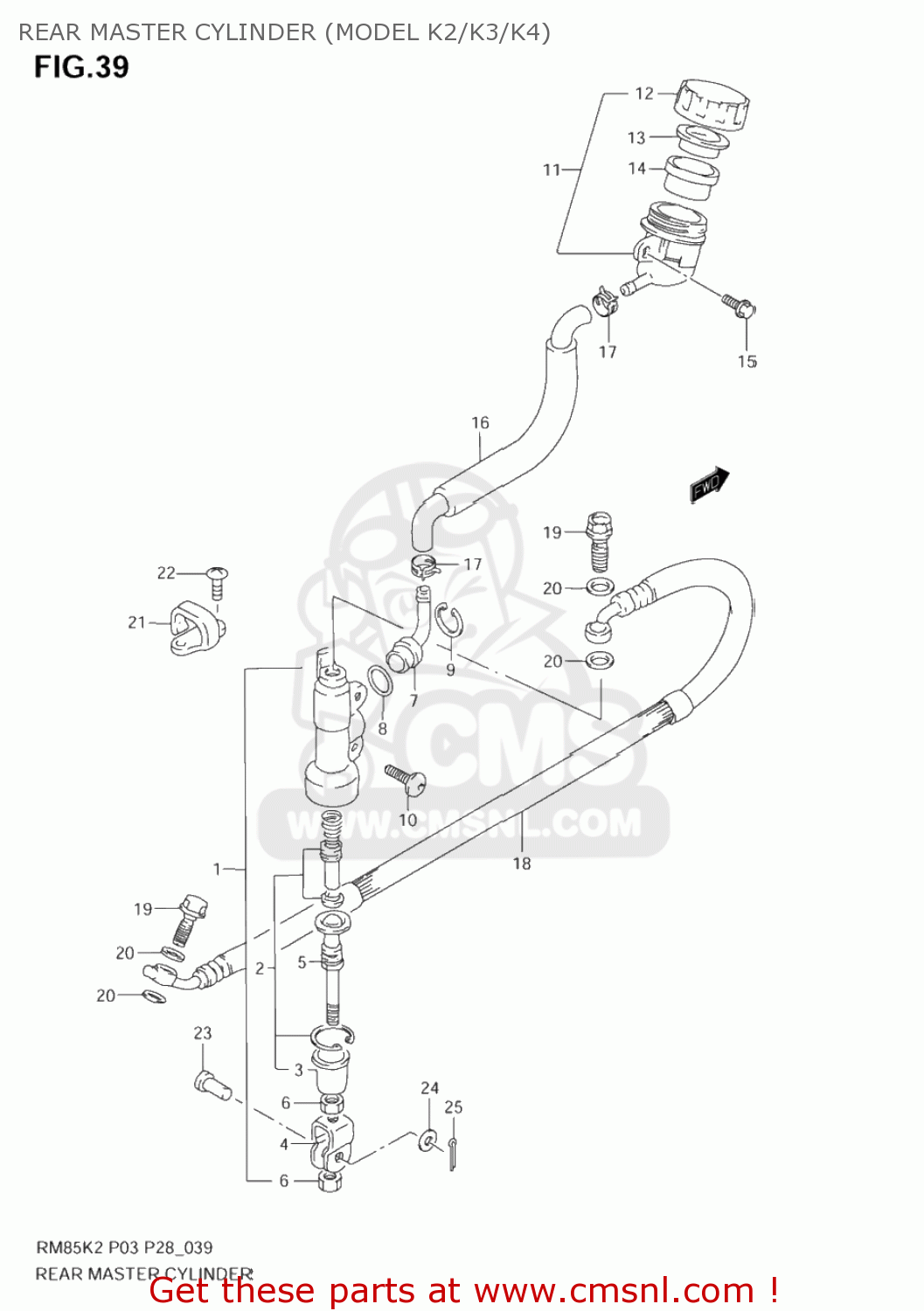

Rear master cylinder (model k2/k3/k4) diagram RM85L 2002 (K2) USA (E03)
REAR MASTER CYLINDER (MODEL K2/K3/K4) RM85L 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960002B40
ref: 1
CYLINDER ASSY,RR MASTER
€ 198.00
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969200B21
ref: 4
YOKE
€ 13.50
5
6967027A30
ref: 5
ROD,PUSH
€ 13.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10
0913906030
ref: 10
SCREW(6X16)
€ 3.50
11
6974003D10
ref: 11
TANK ASSY,RR BRAKE RESERVOIR
€ 72.50
12
6966903D10
ref: 12
CAP
€ 11.00
13
6966800B20
ref: 13
PLATE
€ 4.00
14
6966700B20
ref: 14
DIAPHRAGM
€ 9.50
15
0910306233
ref: 15
BOLT(6X12)
€ 2.00
16
6973102B50
ref: 16
HOSE,RESERVOIR TANK
€ 17.00
17
6973500B20
ref: 17
CLAMP,RESERVOIR HOSE
€ 3.00
18-1
6948002B41
ref: 18-1
HOSE,RR BRAKE
€ 70.00
18-2
6948003B50
ref: 18-2
HOSE,RR BRAKE
€ 70.00
19
0936010039
ref: 19
09360-10061
BOLT UNION
€ 6.50
20
0916110009
ref: 20
WASHER(10X15X1.5)
€ 2.00
21
6119600B21
ref: 21
GUIDE,RR BRAKE HOSE
€ 6.00
22
0214205103
ref: 22
02142-0510B
SCREW
€ 2.50
23
0920008048
ref: 23
PIN(8X20)
€ 3.00
24
0916008119
ref: 24
09160-08090
WASHER (8.5X14X1.6)
€ 2.50
25
0411120158
ref: 25
04111-2015A
PIN
€ 1.50
