REAR WHEEL (RM85LK5/LK6)
RM85L 2002 (K2) USA (E03)

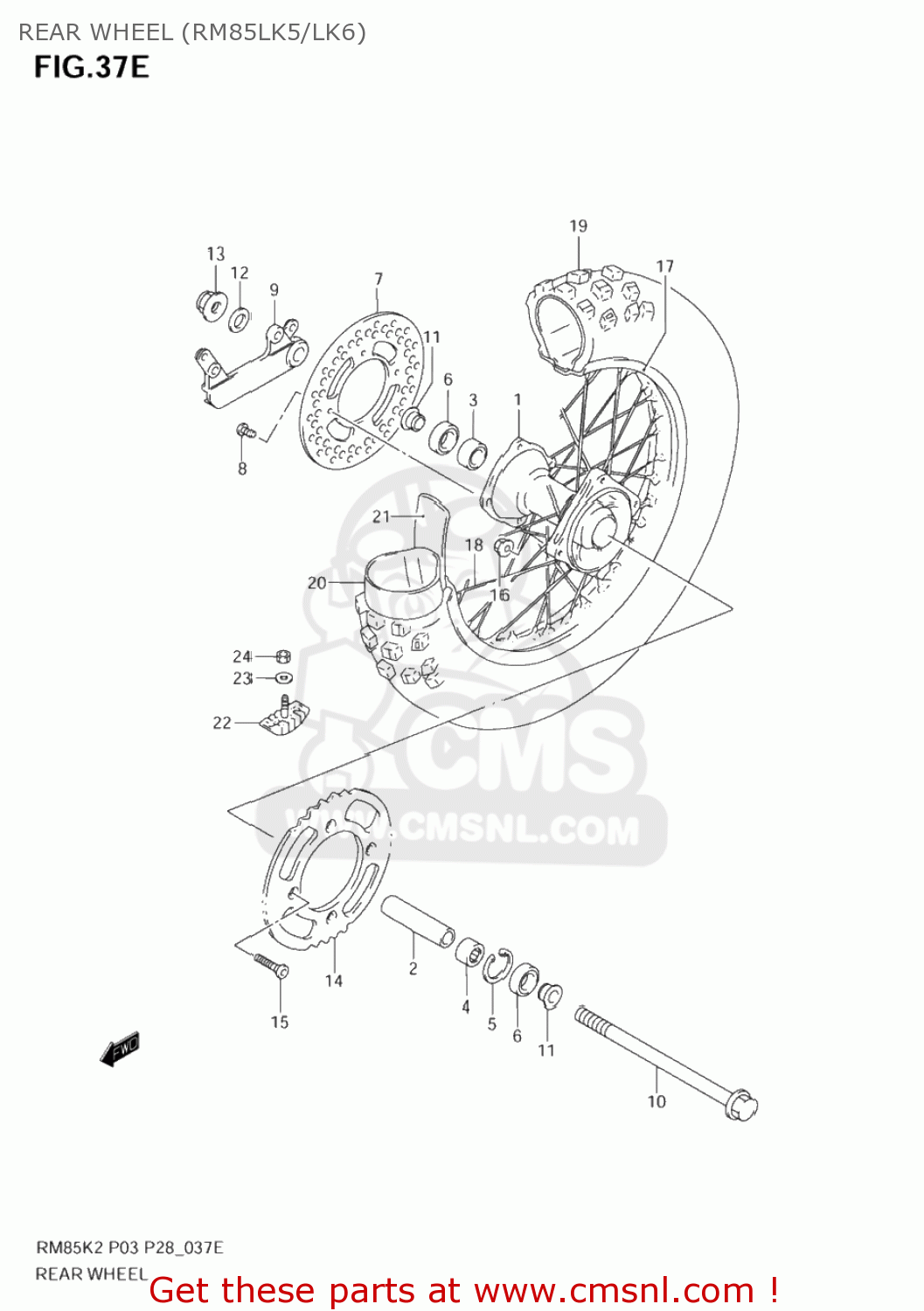

Rear wheel (rm85lk5/lk6) diagram RM85L 2002 (K2) USA (E03)
REAR WHEEL (RM85LK5/LK6) RM85L 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411102B43
ref: 1
HUB,RR WHEEL
€ 175.00
2
6473102B40
ref: 2
SPACER,RR HUB BEARING
€ 10.50
3
0812360027
ref: 3
BEARING
€ 16.00
4
0926215021
ref: 4
BEARING(15X35X11)
€ 14.00
5
0833141356
ref: 5
08331-41359
CIRCLIP
€ 2.00
6
0928320024
ref: 6
SEAL,OIL(20X35X7)
€ 5.50
7
6921103B00
ref: 7
DISC,RR BRAKE
€ 88.50
8
0212206123
ref: 8
02122-0612A
SCREW
€ 3.00
9
6972103B10
ref: 9
BRACKET,RR CALIPER
€ 141.00
10
6471103B70
ref: 10
AXLE,RR
€ 22.50
11
6474103B80
ref: 11
SPACER,RR AXLE
€ 12.00
12
0916014033
ref: 12
09160-14062
WASHER
€ 3.00
13
0831931148
ref: 13
08319-3114A
NUT
€ 9.00
14-1
6451103B00
ref: 14-1
SPROCKET,RR(47T)
€ 82.00
14-2
6451103B10
ref: 14-2
SPROCKET,RR(46T)
€ 82.00
14-3
6451103B20
ref: 14-3
SPROCKET,RR(48T)
€ 82.00
14-4
6451103B30
ref: 14-4
SPROCKET,RR(49T)
€ 82.00
15
0912008010
ref: 15
BOLT(8X30.5)
€ 2.50
16
0915908067
ref: 16
NUT
€ 5.50
17
6531103B60
ref: 17
RIM,RR WHEEL(1.60X16 AL)
€ 197.50
18
6532003B60
ref: 18
SPOKE SET,RR WHEEL
€ 37.00
19
6511003BA0
ref: 19
TIRE,RR(90/100 16 52M D737)
€ 119.00
19
6511003BA0
ref: 19
TIRE,RR(90/100 16 52M D737)
€ 119.00
20
6520003B90
ref: 20
TUBE ASSY,WHEEL INNER
€ 27.50
21
6526103B80
ref: 21
65261-03B50
PROTECTOR, INNER TUBE
€ 5.50
22
6527043D00
ref: 22
STOPPER,BEAD(1.85)
€ 30.50
23
0832201083
ref: 23
08322-0108A
WASHER
€ 1.50
24
0831000083
ref: 24
08310-0008A
NUT
€ 1.50
