FRAME (MODEL K/L/M/N)
RMX250 1990 (L) USA (E03)

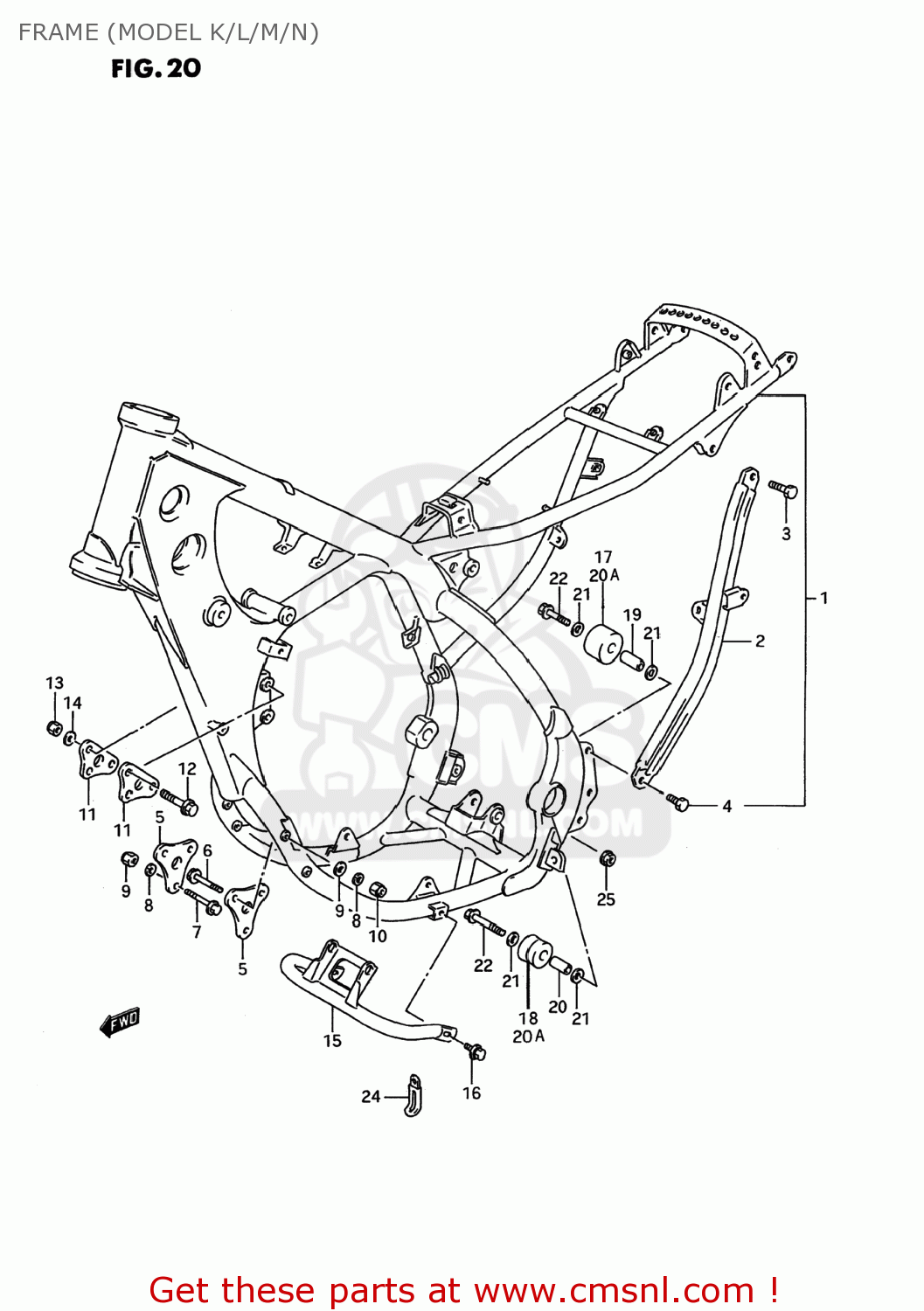

Frame (model k/l/m/n) diagram RMX250 1990 (L) USA (E03)
FRAME (MODEL K/L/M/N) RMX250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
411000586019F
ref: 1-1
FRAME SET
€ 10.00
1-2
411000587019F
ref: 1-2
FRAME SET
€ 10.00
1-3
411000588019F
ref: 1-3
FRAME
€ 827.00
1-4
411000589019F
ref: 1-4
FRAME SET
€ 10.00
2-1
4167027C10
ref: 2-1
41670-43D00
TUBE,FRAME SIDE,LEFT
€ 138.00
2-2
4167043D00
ref: 2-2
TUBE,FRAME SIDE,L
€ 138.00
3-1
0910008274
ref: 3-1
BOLT(8X22)
€ 3.00
3-2
0150008257
ref: 3-2
BOLT
€ 2.50
4-1
0910008284
ref: 4-1
BOLT(8X16)
€ 4.00
4-2
0910008267
ref: 4-2
09100-08284
BOLT
€ 4.00
4-3
0110708167
ref: 4-3
01500-0816B
BOLT,8X16
€ 2.00
5
4199128C00
ref: 5
PLATE,ENG MTG FR
€ 35.00
6
0910308027
ref: 6
09103-08339
BOLT 8X55
€ 3.50
7
0910308265
ref: 7
BOLT M8X65
€ 3.00
8
0832101087
ref: 8
WASHER,LOCK
€ 2.00
9
0832201087
ref: 9
WASHER
€ 2.00
10-1
0831921088
ref: 10-1
08319-2108A
NUT
€ 1.50
10-2
0915908034
ref: 10-2
NUT
€ 2.00
11
4199328C00
ref: 11
PLATE,ENGINE MOUNT UPR
€ 20.00
12-1
0155008507
ref: 12-1
BOLT
€ 3.50
12-2
0910308043
ref: 12-2
BOLT(8X45)
€ 4.50
13-1
0831921088
ref: 13-1
08319-2108A
NUT
€ 1.50
13-2
0915908034
ref: 13-2
NUT
€ 2.00
14
0832201087
ref: 14
WASHER
€ 2.00
15-1
4251005D0019F
ref: 15-1
42510-05D40-19F
PROTECTOR,ENGINE
€ 47.50
15-2
4251005D1019F
ref: 15-2
42510-05D40-19F
PROTECTOR,ENGINE
€ 47.50
15-3
4251005D3019F
ref: 15-3
42510-05D40-19F
PROTECTOR,ENGINE
€ 47.50
16-1
0158006127
ref: 16-1
BOLT
€ 1.50
16-2
0910308253
ref: 16-2
BOLT(8X14)
€ 4.00
17
4391101B10
ref: 17
ROLLER,CHAIN CONTROL
€ 14.50
18
4391135B00
ref: 18
ROLLER,CHAIN CONTROL
€ 14.50
19
0918008136
ref: 19
09180-08206
SPACER (8.6X13.8X28)
€ 9.00
20
0918008119
ref: 20
09180-08156
SPACER(8.6X12X25.5)
€ 6.50
20A-1
4391027C10
ref: 20A-1
43910-27C11
ROLLER,CHAIN
€ 36.50
20A-2
4391027C11
ref: 20A-2
ROLLER,CHAIN
€ 36.50
21-1
0821108221
ref: 21-1
WASHER
€ 2.50
21-2
0821108121
ref: 21-2
WASHER
€ 2.00
22
0910308083
ref: 22
BOLT(8X41)
€ 3.50
23
0910308043
ref: 23
BOLT(8X45)
€ 4.50
24
0940408402
ref: 24
09404-08420
CLAMP
€ 3.50
25
0831931087
ref: 25
NUT
€ 2.50
