MAGNETO

RMX250 1990 (L) USA (E03)

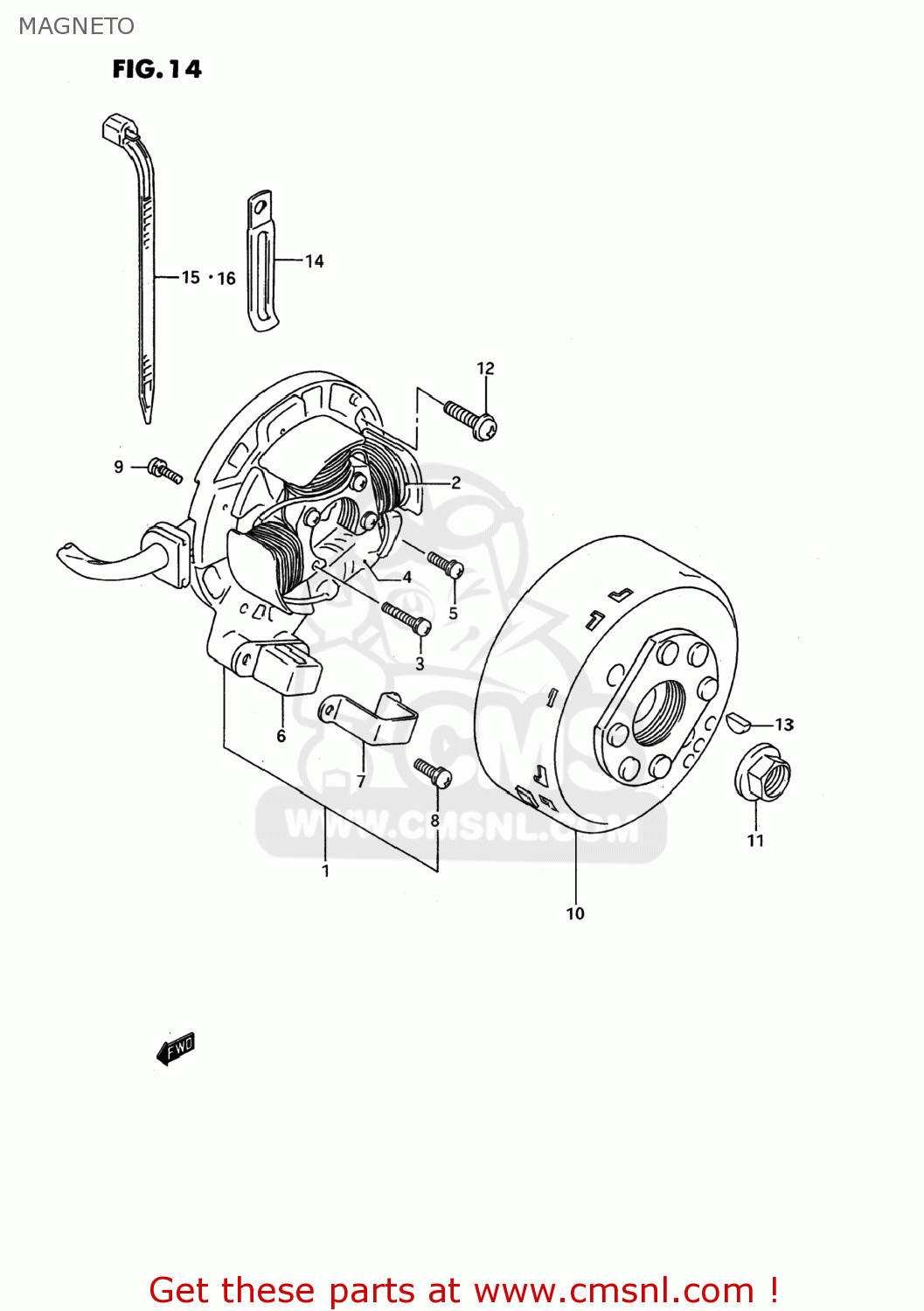

Magneto diagram RMX250 1990 (L) USA (E03)

MAGNETO RMX250 1990 (L) USA (E03)

MAGNETO RMX250 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3210105D00
ref: 1-1
32101-05D01

STATOR ASSEMBLY

€ 476.50

1-2

3210105D01
ref: 1-2

STARTER ASSY

€ 476.50

2

3212005D00
ref: 2

COIL,LIGHTING

€ 92.00

3-1

0211234256
ref: 3-1
02112-3425B

SCREW

€ 2.00

3-2

0211234253
ref: 3-2
02112-3425B

SCREW

€ 2.00

4

3214005D00
ref: 4

COIL,PRIMARY

€ 71.50

5-1

0211234166
ref: 5-1
02112-3416B

SCREW

€ 3.00

5-2

0211234163
ref: 5-2
02112-3416B

SCREW

€ 3.00

6

3215005D00
ref: 6

COIL,PULSER

€ 51.50

7-1

3215605D00
ref: 7-1
32157-27C01

HOLDER,P.U.COI

€ 7.50

7-2

3215727C01
ref: 7-2

HOLDER,PICK UP COIL

€ 7.50

8-1

0211235166
ref: 8-1
02112-3516A

SCREW

€ 2.50

8-2

0211235163
ref: 8-2
02112-3516A

SCREW

€ 2.50

9-1

0211234086
ref: 9-1
02112-3408A

SCREW

€ 2.00

9-2

0211234083
ref: 9-2
02112-3408A

SCREW

€ 2.00

10

3210205D00
ref: 10

ROTOR ASSY

€ 262.00

11-1

0831616128
ref: 11-1
08316-10127

NUT

€ 2.50

11-2

0831610123
ref: 11-2
08316-1012A

NUT

€ 2.50

12-1

0211216208
ref: 12-1
02142-06207

SCREW

€ 2.00

12-2

0211216203
ref: 12-2
02112-1620B

SCREW

€ 2.50

13

0834131039
ref: 13

KEY

€ 2.00

14-1

0940405404
ref: 14-1
09404-06432

CLAMP

€ 2.50

14-2

0940406431
ref: 14-2
09404-06432

CLAMP(L:65)

€ 2.50

15

0940714403
ref: 15

CLAMP(L:125)

€ 2.50

16

0940725401
ref: 16

CLAMP(L:235)

€ 4.00
