SHOCK ABSORBER (MODEL P/R/S/T)

RMX250 1990 (L) USA (E03)

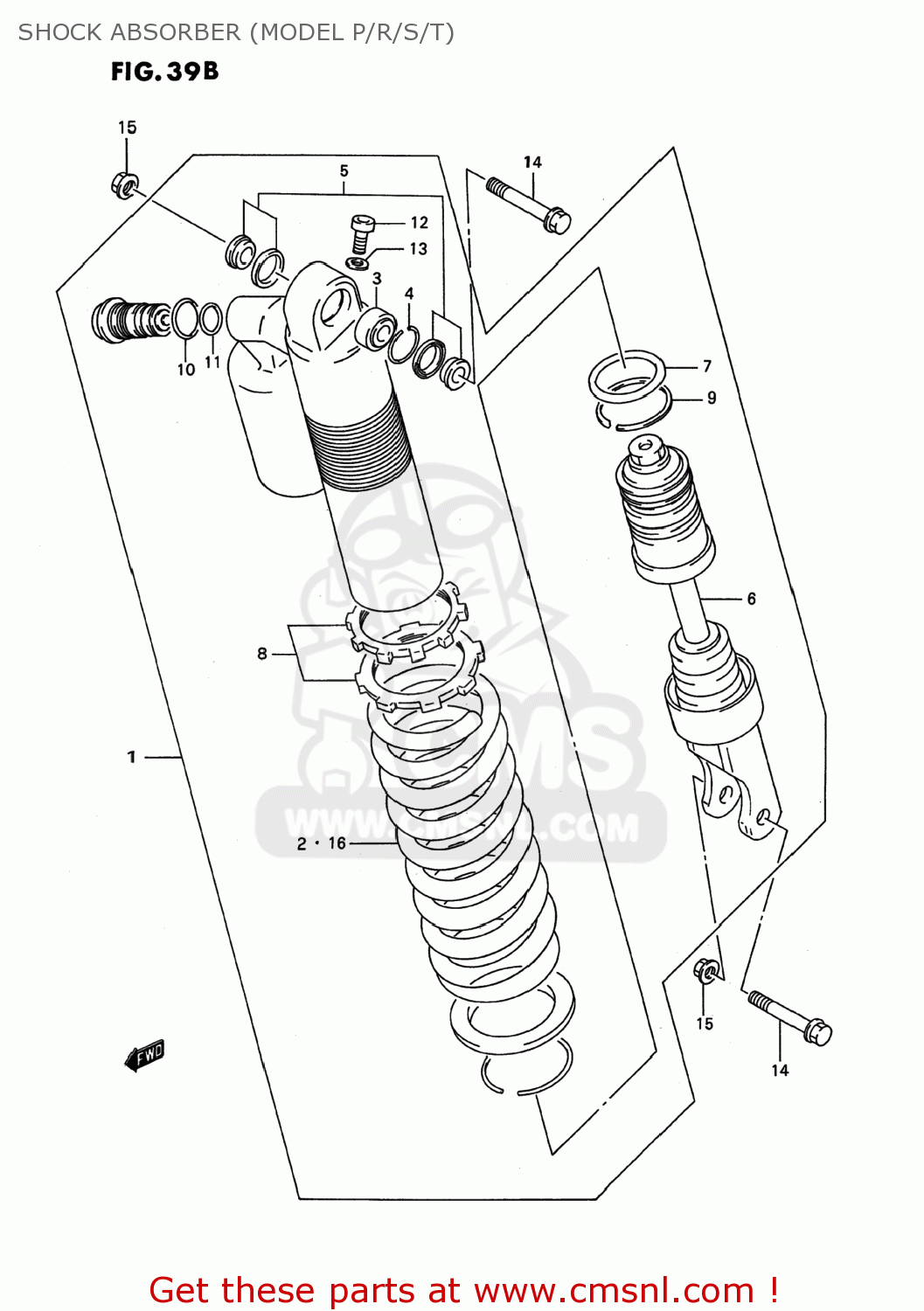

Shock absorber (model p/r/s/t) diagram RMX250 1990 (L) USA (E03)

SHOCK ABSORBER (MODEL P/R/S/T) RMX250 1990 (L) USA (E03)

SHOCK ABSORBER (MODEL P/R/S/T) RMX250 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6210029E51163
ref: 1-1

ABSORBER ASSEMBLY,REAR SHOCK

€ 1,438.00

1-1

6210029E51163
ref: 1-1

ABSORBER ASSEMBLY,REAR SHOCK

€ 1,438.00

1-2

6210029E60Z84
ref: 1-2

ABSORBER ASSEMBLY,REAR SHOCK

€ 970.50

1-2

6210029E60Z84
ref: 1-2

ABSORBER ASSEMBLY,REAR SHOCK

€ 970.50

2-1

6221128C70163
ref: 2-1

SPRING(K:5.2)

€ 166.50

2-2

6221128C80Z84
ref: 2-2

SPRING

€ 0.00

3

6217543D00
ref: 3

BEARING,RR CUSHION LEVER RR

€ 54.00

4

6227727C40
ref: 4

RING,STOPPER

€ 2.00

5

6268028E00
ref: 5

COLLAR SET,RR SHOCK ABSORBER

€ 34.00

6

6212029E50
ref: 6

ROD,PISTON

€ 0.00

7

6215343B00
ref: 7

O RING

€ 0.00

8

6219028E00
ref: 8

ADJUSTER SET,SHOCK ABSORBER

€ 51.00

9

6227927C40
ref: 9

RING,STOPPER

€ 2.50

10

6213127C40
ref: 10

O RING

€ 3.50

11

5117528E30
ref: 11
51175-03B30

O-RING,FORK BOLT,LOWER

€ 3.00

12

6228127C40
ref: 12

BOLT

€ 4.50

13

5118331030
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 4.00

14

6231128C00
ref: 14
62311-28E00

BOLT,REAR SHOCK ABSORBER

€ 4.00

15

0915910058
ref: 15
09159-10115

NUT

€ 4.00

16-1

6221128C80
ref: 16-1
62211-28C80-163

SPRING,REAR (K=5.4)

€ 160.50

16-2

6221127C90
ref: 16-2

SPRING,REAR (K=5.0)

€ 214.00
