FUEL TANK
RMX250 1990 (L) USA (E03)

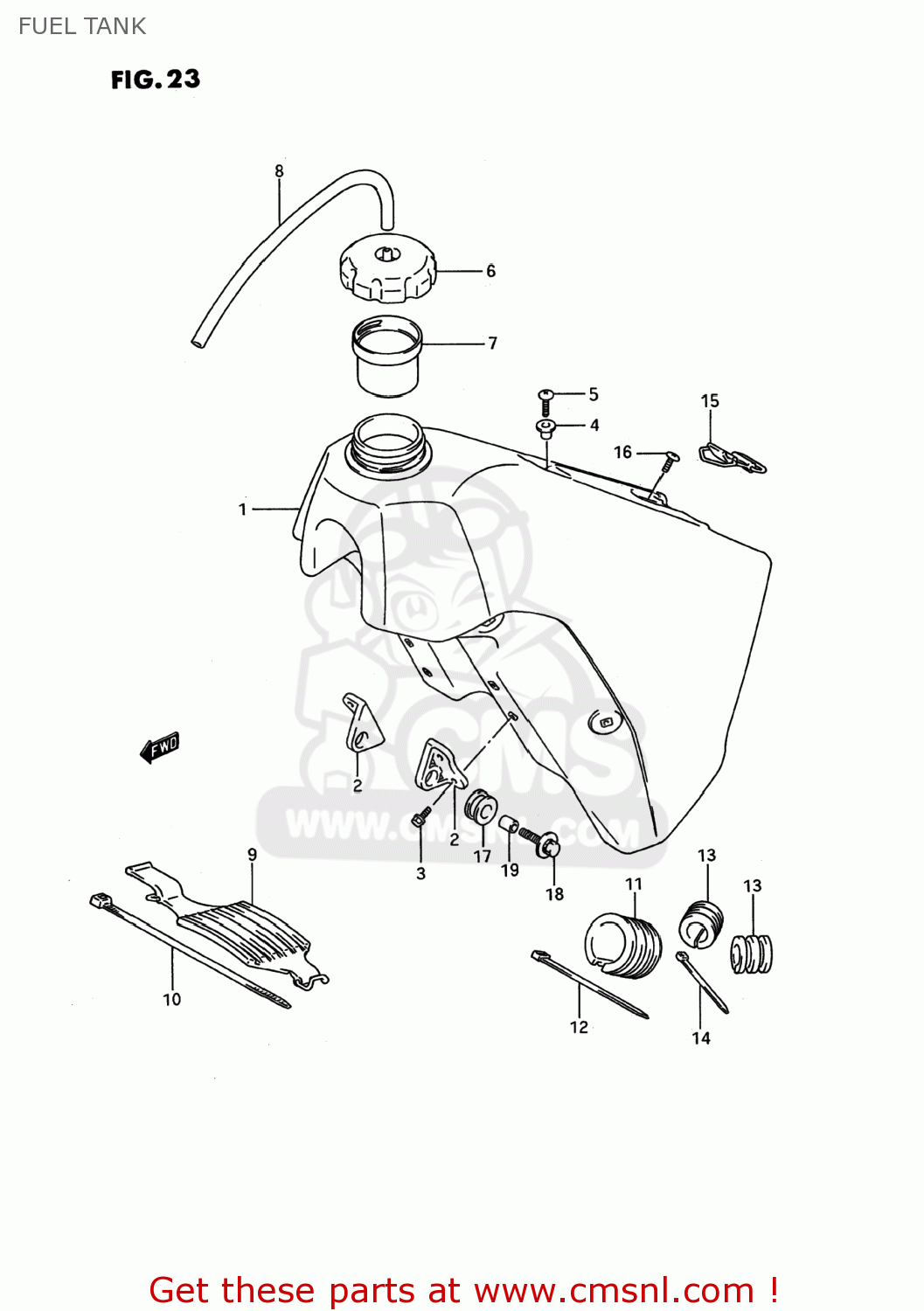

Fuel tank diagram RMX250 1990 (L) USA (E03)
FUEL TANK RMX250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
441000585025Y
ref: 1-1
44100-05853-25Y
TANK ASSEMBLY,FUEL
€ 364.50
1-2
441000585125Y
ref: 1-2
44100-05853-25Y
TANK ASSEMBLY,FUEL
€ 364.50
1-3
441000585225Y
ref: 1-3
44100-05853-25Y
TANK SET,FUEL
€ 364.50
1-4
441000585325Y
ref: 1-4
TANK SET,FUEL(YELLOW)
€ 364.50
2
4413127C01
ref: 2
BRACKET,FUEL TANK FR
€ 6.50
3
0154706127
ref: 3
BOLT
€ 2.00
4-1
4413227C00
ref: 4-1
44132-27C01
HOOK,SEAT,FRONT
€ 39.00
4-2
4413227C01
ref: 4-2
HOOK,SEAT FR
€ 39.00
5
0214206207
ref: 5
SCREW
€ 2.00
6
4420019A01
ref: 6
CAP ASSY,FUEL TANK
€ 40.00
7
4419919A00
ref: 7
TUBE,FILLER INLET
€ 4.00
8
0935250823600
ref: 8
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
9-1
4454127C00
ref: 9-1
CUSHION,FUEL TANK,UPPER
€ 10.00
9-2
4454126C00
ref: 9-2
CUSHION,FUEL TANK NO.1
€ 14.50
10-1
0940730402
ref: 10-1
CLAMP(L:300)
€ 3.50
10-2
0940720405
ref: 10-2
09407-25402
CLAMP
€ 4.50
10-3
0940725402
ref: 10-3
CLAMP(L:250)
€ 4.50
11
4454226C00
ref: 11
CUSHION,FUEL TANK NO.2
€ 8.00
12
0940730402
ref: 12
CLAMP(L:300)
€ 3.50
13
4454126C00
ref: 13
CUSHION,FUEL TANK NO.1
€ 14.50
14
0940714407
ref: 14
CLAMP(L:145)
€ 4.00
15
4456027C00
ref: 15
BAND,FUEL TANK RR
€ 8.50
16-1
0214206164
ref: 16-1
02142-0616A
SCREW
€ 2.50
16-2
0214206163
ref: 16-2
02142-0616A
SCREW
€ 2.50
17
0932012030
ref: 17
CUSHION
€ 3.50
18
0911808132
ref: 18
BOLT(8X30)
€ 4.50
19
0918008003
ref: 19
09180-08191
SPACER (8.8X12X13.5)
€ 5.00
