FRONT DAMPER (MODEL L)
RMX250 1991 (M) USA (E03)

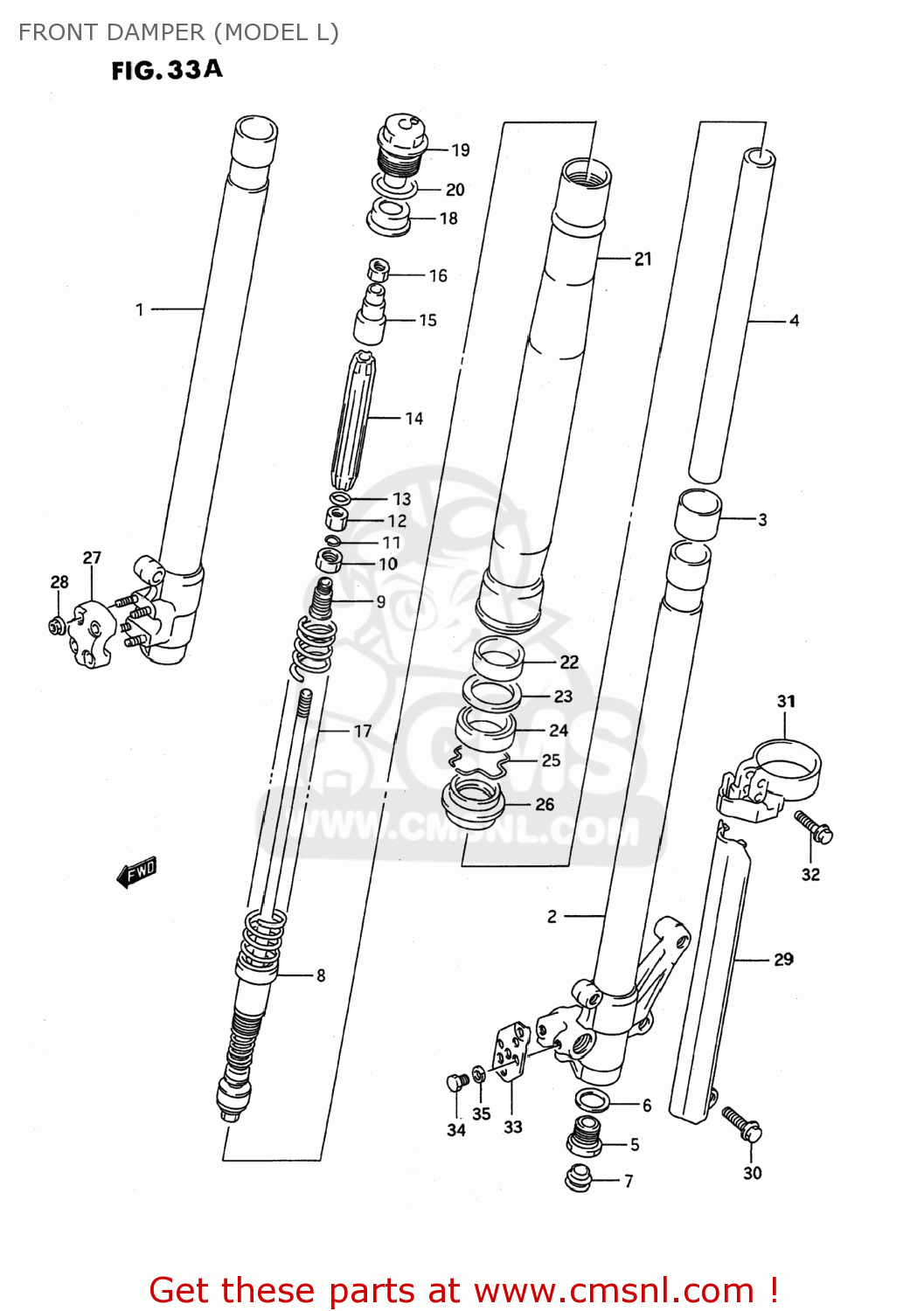

Front damper (model l) diagram RMX250 1991 (M) USA (E03)
FRONT DAMPER (MODEL L) RMX250 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110305D30
ref:
DAMPER ASSEMBLY,RIGHT
€ 0.00
5110405D30
ref:
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5111027C20
ref: 1
TUBE,INNER,RIGHT
€ 289.50
2
5112027C20
ref: 2
TUBE,INNER,LEFT
€ 289.50
3
5112128C00
ref: 3
51121-26E10
PISTON
€ 23.00
4
5114627C20
ref: 4
CYLINDER
€ 175.00
5
5117005D30
ref: 5
BOLT,CENTER
€ 194.50
6
5114801B40
ref: 6
GASKET (NAS)
€ 4.00
7
5118928C00
ref: 7
CAP,RUBBER
€ 5.50
8
5112805D30
ref: 8
ROD ASSEMBLY,PISTON
€ 332.00
9
5181227C20
ref: 9
HOLDER,PIECE
€ 19.00
10
5181127C20
ref: 10
PIECE,OIL LOCK
€ 15.00
11
5181327C20
ref: 11
RING,SNAP
€ 2.50
12
5181427C20
ref: 12
NUT,PIECE
€ 14.00
13
5118728C00
ref: 13
09280-12008
O-RING
€ 3.00
14
5117227C20
ref: 14
GUIDE,SPRING
€ 32.50
15
5112727C20
ref: 15
SPACER,SPRING GUIDE
€ 9.50
16
5112927C20
ref: 16
09140-12039
NUT
€ 2.50
17
5117105D30
ref: 17
SPRING,MAIN
€ 97.00
18
5117527C20
ref: 18
GUIDE,SPRING WASHER
€ 4.50
19
5135127C20
ref: 19
CAP,FORK
€ 123.00
20
5111728C00
ref: 20
O RING
€ 3.00
21
5113005D30
ref: 21
TUBE,OUTER
€ 684.50
22
5116728C00
ref: 22
51167-26E10
METAL,SLIDE
€ 20.50
23
5115805A00
ref: 23
WASHER,FORK OIL SEAL
€ 5.00
24
5115328C00
ref: 24
51153-27C20
OIL SEAL,FRONT FORK
€ 22.00
25
5115649440
ref: 25
RING,OIL SEAL STOPPER
€ 5.50
26
5117327C20
ref: 26
SEAL,DUST
€ 13.50
27
5113228C00
ref: 27
HOLDER,AXLE
€ 23.50
28
0831931067
ref: 28
NUT
€ 2.50
29-1
5120105D00
ref: 29-1
PROTECTOR,R
€ 51.50
29-2
5121128C00
ref: 29-2
PROTECTOR,L
€ 43.00
30
0154706357
ref: 30
BOLT
€ 2.50
31-1
5120127C20
ref: 31-1
GUIDE,PROTECTOR,R
€ 45.00
31-2
5121127C20
ref: 31-2
GUIDE,PROTECTOR,L
€ 45.00
32
0151405358
ref: 32
01550-05353
BOLT, GUIDE
€ 1.00
33
5924805D00
ref: 33
CLAMP,FRONT BRAKE HOSE
€ 14.50
34
0110705108
ref: 34
01500-0510B
BOLT 5X10
€ 1.50
35
0832121057
ref: 35
08321-0105A
LOCK WASHER
€ 2.00
