FRONT MASTER CYLINDER (MODEL T)
RMX250 1991 (M) USA (E03)

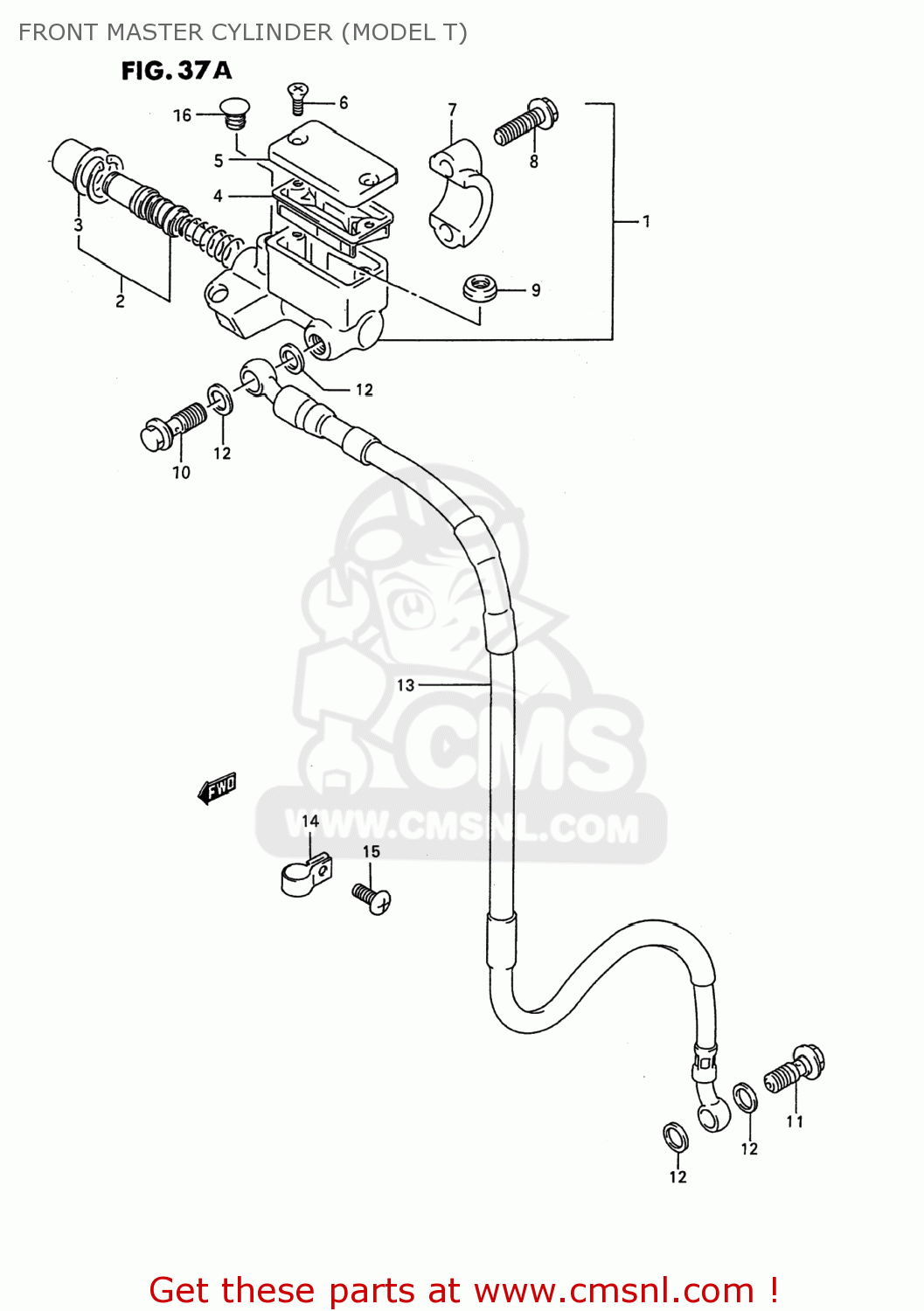

Front master cylinder (model t) diagram RMX250 1991 (M) USA (E03)
FRONT MASTER CYLINDER (MODEL T) RMX250 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960005D00
ref: 1
59600-05D01
CYLINDER ASSEMBLY,FRONT MASTER
€ 150.00
2
5960027820
ref: 2
PISTON & CUP SET
€ 30.00
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966744B00
ref: 4
DIAPHRAGM
€ 8.00
5
5966905D00
ref: 5
CAP
€ 13.50
6
6968949300
ref: 6
SCREW
€ 1.50
7
5967127C00
ref: 7
HOLDER
€ 9.50
8
5967527C00
ref: 8
BOLT
€ 2.50
9
5974814500
ref: 9
SEPARATOR
€ 6.00
10
0936010041
ref: 10
09360-10061
BOLT UNION
€ 6.50
10
0936010041
ref: 10
09360-10061
BOLT UNION
€ 6.50
11
0936010042
ref: 11
09360-10062
BOLT UNION
€ 5.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5948005D20
ref: 13
59480-05D30
HOSE COMP,FRONT BRAKE
€ 193.00
14
5924303B01
ref: 14
CLAMP,FR BRAKE
€ 3.50
15
0214206253
ref: 15
02142-0625A
SCREW
€ 1.50
16
0925009001
ref: 16
CAP(OD:14)
€ 1.00
