RADIATOR (MODEL R/S/T)
RMX250 1991 (M) USA (E03)

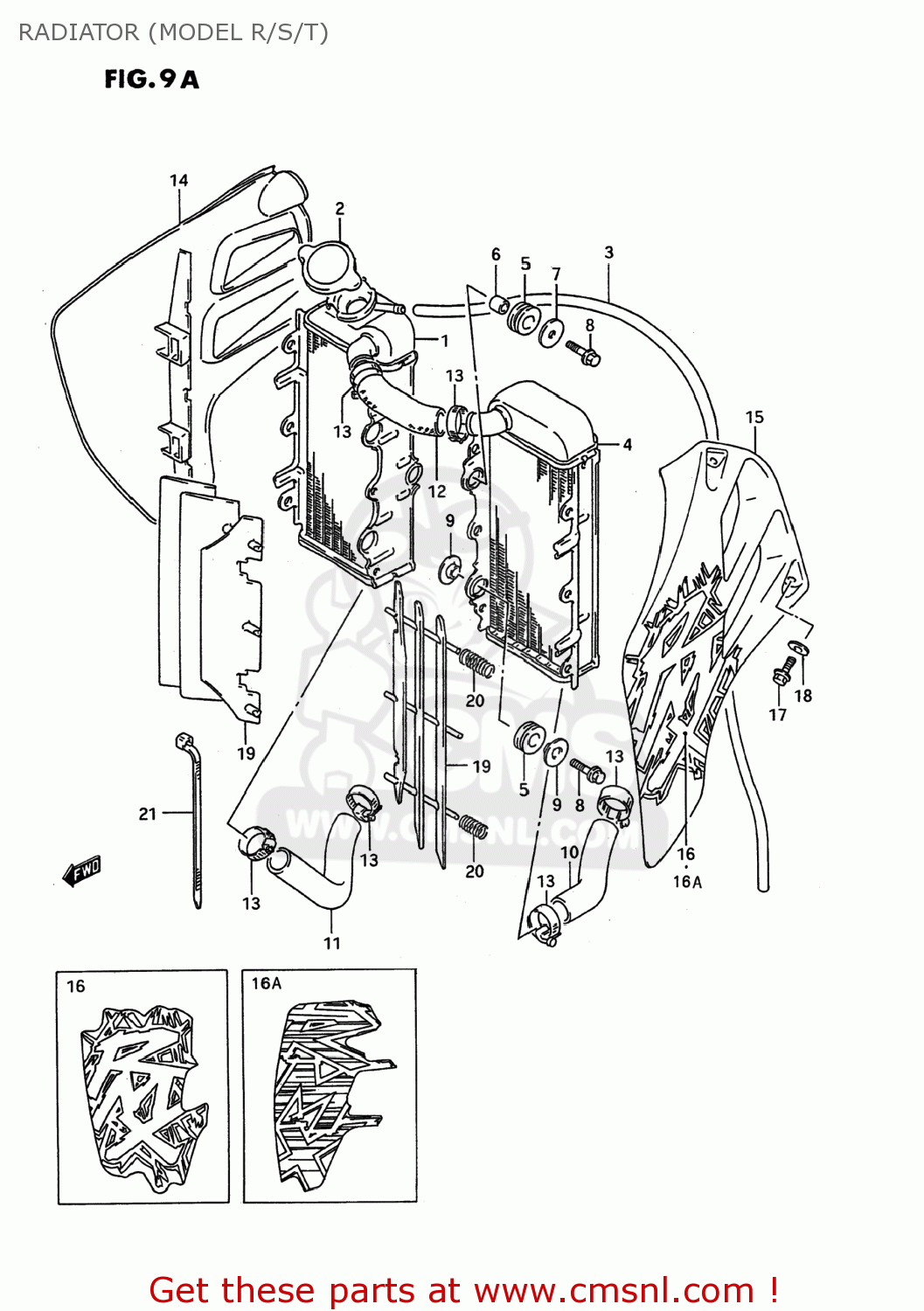

Radiator (model r/s/t) diagram RMX250 1991 (M) USA (E03)
RADIATOR (MODEL R/S/T) RMX250 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771005D00
ref: 1
RADIATOR,WATER,R
€ 268.00
2-1
1773020930
ref: 2-1
17730-08J00
CAP,RADIATOR 1.1
€ 40.00
2-2
1773012C01
ref: 2-2
17730-08J00
CAP,RADIATOR
€ 40.00
3
093515080300B
ref: 3
HOSE(5X8X2000)
€ 10.00
4
1772005D00
ref: 4
RADIATOR COMP,WATER,LEFT
€ 289.50
5
1778719A00
ref: 5
CUSHION,RADIATOR LWR
€ 3.50
6
0918006221
ref: 6
SPACER(6.5X10.5X12)
€ 5.50
7
0916006002
ref: 7
09160-06114
WASHER (6.5X24X1.2)
€ 2.00
8
0154706253
ref: 8
01547-0625B
SCREW
€ 2.50
9
1778126C00
ref: 9
WASHER,RDTR SPRT
€ 2.50
10
1785128C00
ref: 10
HOSE,RADIATOR INLET
€ 14.00
11
1785228C10
ref: 11
HOSE,RADIATOR OUTLET
€ 14.50
12
1785328C20
ref: 12
17851-01A00
HOSE,RADIATOR JOINT NO.1
€ 17.50
13-1
0940225502
ref: 13-1
09402-28511
CLAMP
€ 8.50
13-2
0940228511
ref: 13-2
CLAMP
€ 8.50
14-1
1776128C0025Y
ref: 14-1
COVER,RADIATOR,R
€ 23.00
14-2
1776128C00Z62
ref: 14-2
COVER,RADIATOR,R
€ 29.50
15-1
1776228C0025Y
ref: 15-1
COVER,RADIATOR,L
€ 30.00
15-2
1776228C00Z62
ref: 15-2
COVER,RADIATOR,L
€ 29.50
16-1
6866105D40C2M
ref: 16-1
EMBLEM,RADIATOR COVER
€ 0.00
16A-1
6866505D10E8S
ref: 16A-1
TAPE,RADIATOR COVER,RIGHT
€ 0.00
16-2
6866105D40D0J
ref: 16-2
EMBLEM,RADIATOR COVER
€ 0.00
16A-2
6867505D10E8S
ref: 16A-2
TAPE,RADIATOR COVER,L
€ 0.00
16-3
6867105D40C2M
ref: 16-3
EMBLEM,RADIATOR COVER
€ 40.00
16-4
6867105D40D0J
ref: 16-4
EMBLEM,RADIATOR COVER
€ 0.00
17
0154706123
ref: 17
01547-0612B
BOLT
€ 2.00
18-1
0916006028
ref: 18-1
WASHER(6.5X18X1)
€ 1.50
18-2
0916906054
ref: 18-2
09169-06053
WASHER
€ 2.00
19
1783126C00
ref: 19
LOUVER,RADIATOR
€ 17.00
20
0944011024
ref: 20
09440-11024-XC0
SPRING
€ 5.00
21-1
0940718402
ref: 21-1
CLAMP(L:165)
€ 2.50
21-2
0940718403
ref: 21-2
09407-18402
CLAMP L:165
€ 2.50
