FRONT DAMPER (MODEL M)
RMX250 1991 (M) USA (E03)

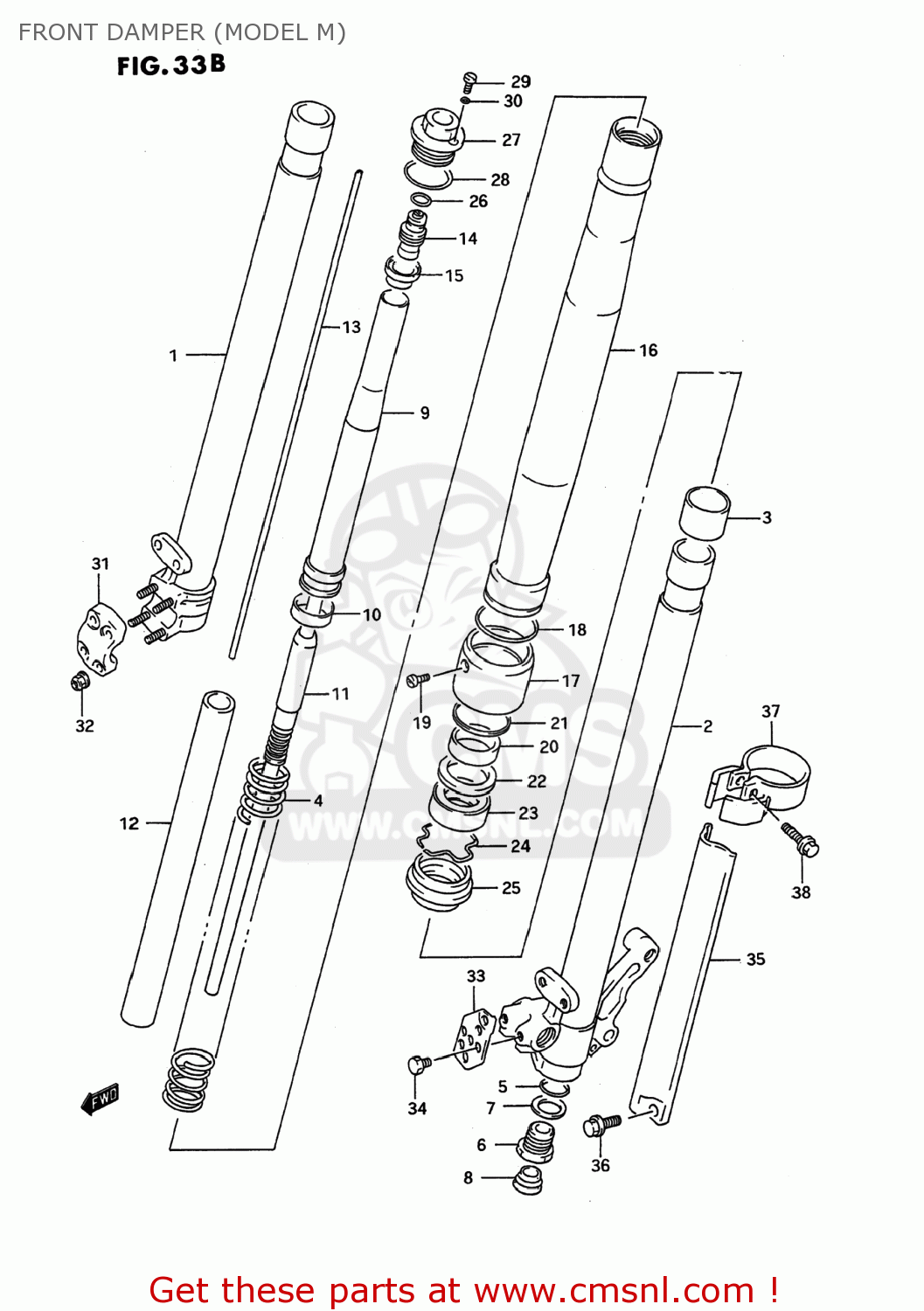

Front damper (model m) diagram RMX250 1991 (M) USA (E03)
FRONT DAMPER (MODEL M) RMX250 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110305D60
ref:
DAMPER ASSEMBLY,RIGHT
€ 0.00
5110405D60
ref:
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5111027C40
ref: 1
TUBE,INNER,RIGHT
€ 312.50
2
5112027C40
ref: 2
51120-27C41
TUBE,INNER,LEFT
€ 327.50
3
5112127C40
ref: 3
BUSH,SLIDE
€ 13.50
4
5117105D60
ref: 4
51171-27C40
SPRING,MAIN
€ 92.00
5
5117427C40
ref: 5
51175-03B30
O-RING
€ 3.00
6
5117005D60
ref: 6
BOLT,CENTER
€ 0.00
7
5114827C40
ref: 7
GASKET (NAS)
€ 3.00
8
5118908D00
ref: 8
CAP
€ 7.50
9
5117527C40
ref: 9
SPACER,SPRING
€ 132.50
10
5117627C40
ref: 10
RING,PISTON
€ 9.00
11
5119005D60
ref: 11
ROD ASSEMBLY,PISTON
€ 249.50
12
5114627C40
ref: 12
CYLINDER
€ 203.50
13
5119127C40
ref: 13
ROD,PUSH
€ 43.50
14
5118027C40
ref: 14
ADJUSTER,SPRING
€ 63.00
15
5135527C41
ref: 15
SEAT,SPRING STOPPER
€ 25.00
16
5113027C40
ref: 16
TUBE,OUTER
€ 498.50
17
5113527C40
ref: 17
CASE,OIL SEAL
€ 50.50
18
5113127C40
ref: 18
O RING,CASE
€ 4.50
19
5113427C40
ref: 19
SCREW
€ 2.50
20
5116727C40
ref: 20
BUSH,GUIDE
€ 18.50
21
5113327C40
ref: 21
RING,STOPPER,UPPER
€ 3.00
22
5115827C40
ref: 22
SPACER,SEAL
€ 6.00
23
5115327C41
ref: 23
51153-28E30
OIL SEAL,FRONT FORK
€ 19.00
24
5115627C40
ref: 24
RING,OIL SEAL STOPPER
€ 3.50
25
5117327C41
ref: 25
51173-28E40
SEAL,DUST
€ 22.00
26
5112927C40
ref: 26
09280-12012
NUT
€ 5.00
27
5135127C40
ref: 27
BOLT,FORK
€ 75.00
28
5111727C40
ref: 28
O RING
€ 3.50
29
5135727C40
ref: 29
BOLT,PLUG
€ 5.50
30
5135827C40
ref: 30
51117-19C10
O RING, PLUG
€ 2.00
31
5113227C40
ref: 31
HOLDER,AXLE,R
€ 34.00
32
0831931067
ref: 32
NUT
€ 2.50
33
5924805D60
ref: 33
CLAMP,FRONT BRAKE HOSE
€ 0.00
34
5924927C40
ref: 34
01500-05087
BOLT, HOSE GUIDE
€ 2.00
35-1
5150105D60
ref: 35-1
PROTECTOR,FORK,RIGHT
€ 62.50
35-2
5151127C40
ref: 35-2
PROTECTOR,FORK,L
€ 48.50
36
5862727C40
ref: 36
BOLT,PROTECTOR(6X10)
€ 2.50
37-1
5120127C40
ref: 37-1
GUIDE,FORK PROTECTOR,R
€ 46.00
37-2
5121127C40
ref: 37-2
GUIDE,FORK PROTECTOR,LEFT
€ 46.00
38
5862827C40
ref: 38
BOLT,PROTECTOR GUIDE
€ 5.00
