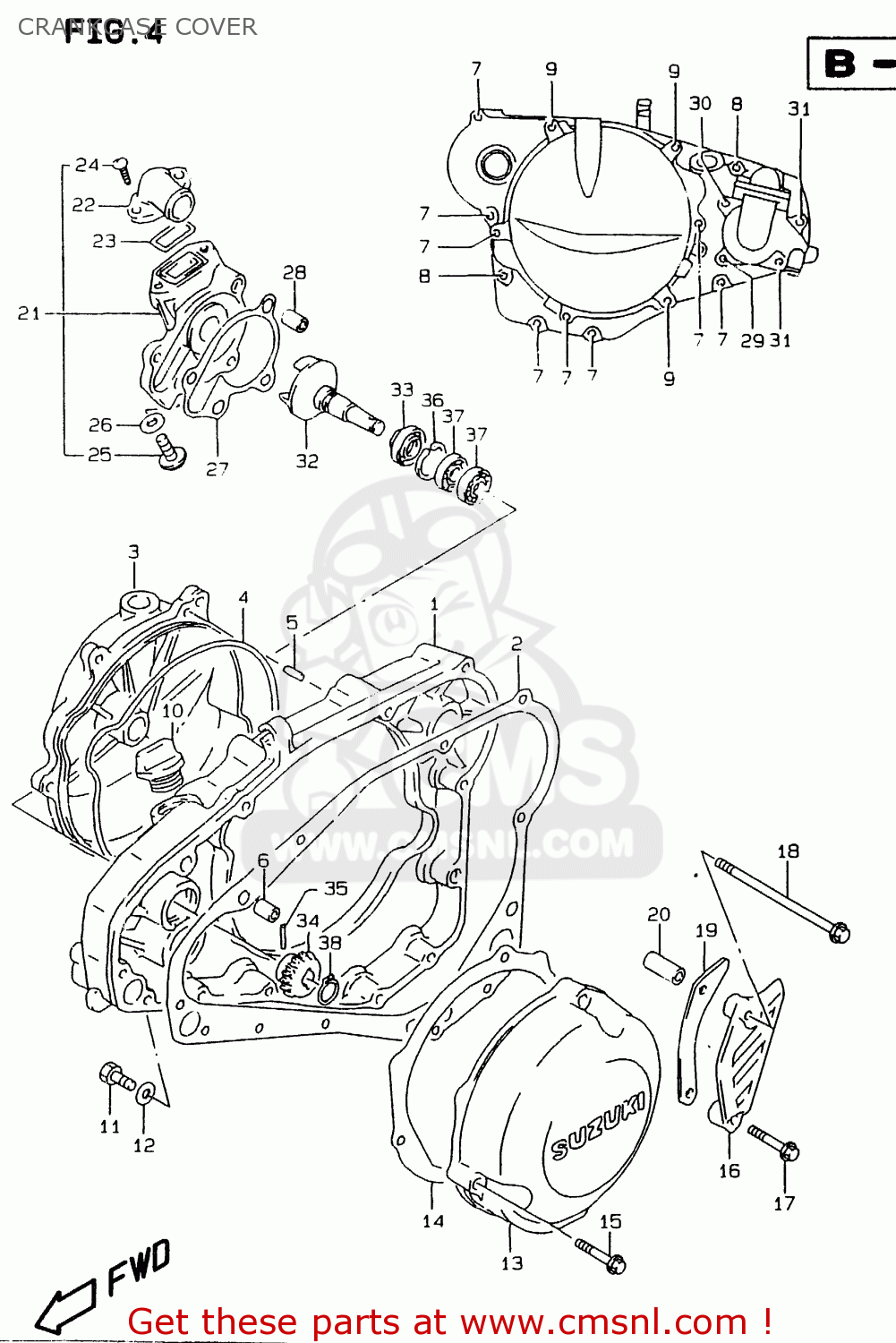

CRANKCASE COVER

ref

part #

description

quantity

1

1134028811
ref: 1

COVER,CLUTCH

€ 175.50

2

1148228C01
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 15.00

3

1137128E02
ref: 3

COVER,CLUTCH OUTER

€ 339.50

4

1148428C10
ref: 4

O RING,CLUTCH COVER OUTER

€ 18.50

5

0422104089
ref: 5

PIN

€ 1.50

6

0421109129
ref: 6

PIN

€ 2.00

7

0154706253
ref: 7

SCREW

€ 2.50

8

0154706353
ref: 8

BOLT

€ 3.00

9

0154706703
ref: 9

BOLT

€ 3.00

10

0920020810
ref: 10

PLUG SET

€ 8.00

11

0912806004
ref: 11

SCREW(6X10)

€ 1.50

12

0916806004
ref: 12

GASKET(6.2X11X1).2 (NAS)

€ 1.50

13

1135105D12
ref: 13

COVER,MAGNETO

€ 184.50

14

1148328C10
ref: 14

GASKET,MAGNETO COVER (NAS)

€ 6.50

15

0154706253
ref: 15

SCREW

€ 2.50

16

1136028E00
ref: 16

COVER,ENGINE SPROCKET

€ 28.00

17

0154706253
ref: 17

SCREW

€ 2.50

18

0154706953
ref: 18

BOLT

€ 3.50

19-1

2764128C10
ref: 19-1

PLATE,FR CHAIN GUIDE(13T)

€ 8.50

19-2

2764128C20
ref: 19-2
OPT, FOR NT:15

PLATE,FR CHAIN GUIDE(15T)

€ 8.00

20

0918006203
ref: 20

SPACER(6.5X10.5X25)

€ 3.50

21

1741028E00
ref: 21

CASE ASSY,WATER PUMP

€ 93.50

22

1741228E00
ref: 22

CONNECTOR

€ 23.50

23

1741414300
ref: 23

O RING,WATER PUMP CONNECTOR

€ 3.00

24

0211206164
ref: 24

SCREW

€ 2.00

25

1741543D00
ref: 25

BOLT

€ 3.00

26

1741328C10
ref: 26

WASHER

€ 1.50

27

1743128C10
ref: 27

GASKET,WATER PUMP CASE (NAS)

€ 10.00

28

0421109129
ref: 28

PIN

€ 2.00

29

0154706203
ref: 29

SCREW

€ 2.50

30

0154706303
ref: 30

BOLT,G/S SWITC

€ 3.00

31

0154706803
ref: 31

BOLT

€ 3.50

32

1749128C10
ref: 32

IMPELLER,WATER PUMP

€ 39.00

33

1746128C10
ref: 33

SEAL,WATER PUMP OIL

€ 7.00

34

1744128C11
ref: 34
NT:24

GEAR,WATER PUMP DRIVEN(NT:24)

€ 25.00

35

0926103010
ref: 35

PIN(3X13.8)

€ 3.00

36

0833141246
ref: 36

CIRCLIP

€ 2.50

37

0811369000
ref: 37

BEARING

€ 23.50

38

0833131106
ref: 38

CIRCLIP,10MM

€ 2.00
