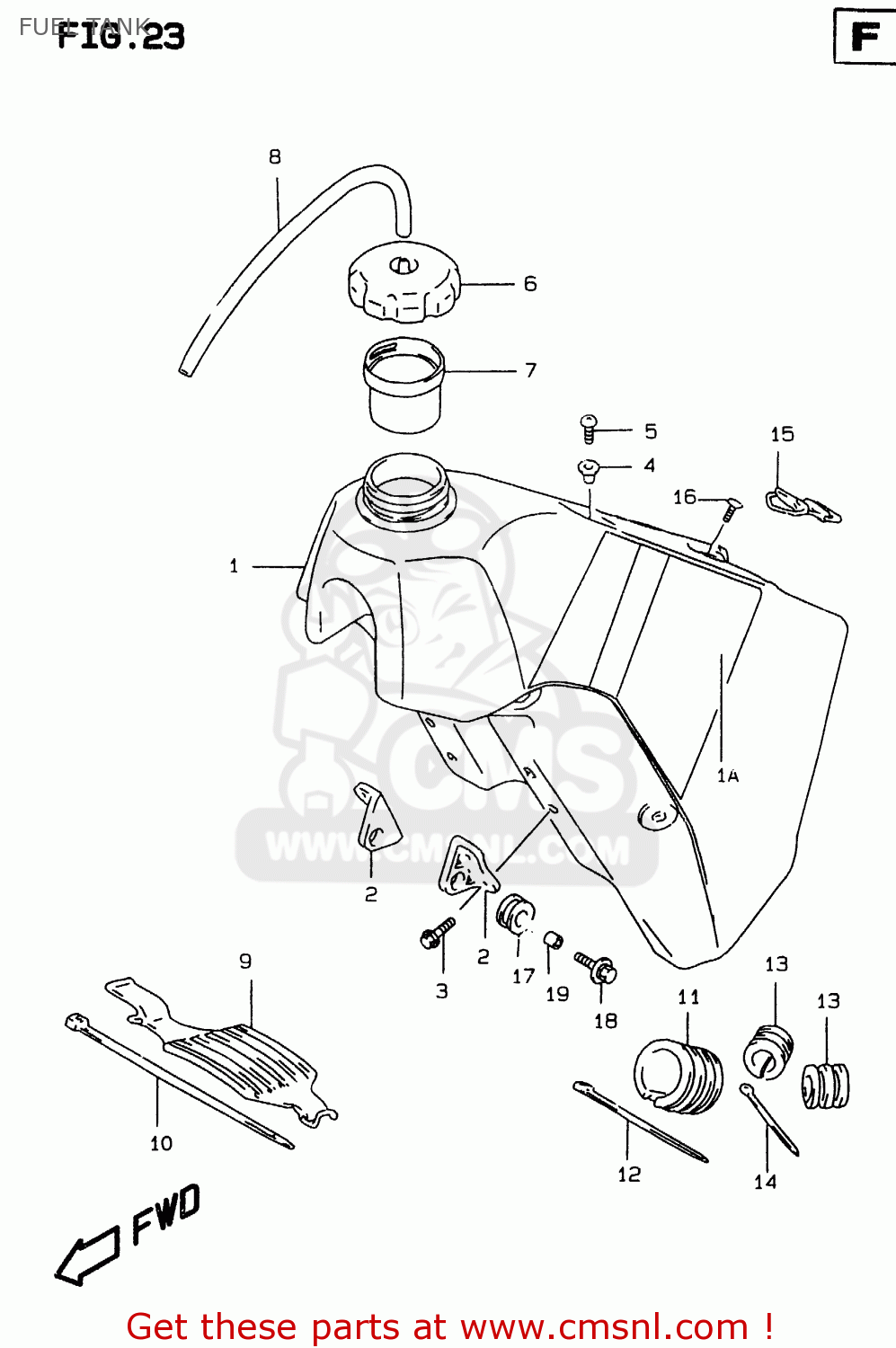

FUEL TANK

ref

part #

description

quantity

1

4111005D0325Y
ref: 1

TANK, FUEL (YELLOW)

€ 0.00

1A

6811005D00J5C
ref: 1A
MODEL W

TAPE SET,FUEL TANK

€ 139.00

2

4413127C01
ref: 2

BRACKET,FUEL TANK FR

€ 6.50

3

0154706127
ref: 3

BOLT

€ 2.00

4-1

4413227C00
ref: 4-1
MODEL V

HOOK,SEAT,FRONT

€ 39.00

4-2

4413227C01
ref: 4-2
MODEL W

HOOK,SEAT FR

€ 39.00

5

0214206207
ref: 5

SCREW

€ 2.00

6

4420019A01
ref: 6

CAP ASSY,FUEL TANK

€ 40.00

7

4419919A00
ref: 7

TUBE,FILLER INLET

€ 4.00

8

0935250823600
ref: 8

HOSE(5X8.2X600)

€ 13.00

9

4454126C00
ref: 9

CUSHION,FUEL TANK NO.1

€ 14.50

10

0940725402
ref: 10

CLAMP(L:250)

€ 4.50

11

4454226C00
ref: 11

CUSHION,FUEL TANK NO.2

€ 8.00

12

0940730402
ref: 12

CLAMP(L:300)

€ 3.50

13

4454126C00
ref: 13

CUSHION,FUEL TANK NO.1

€ 14.50

14

0940714407
ref: 14

CLAMP(L:145)

€ 4.00

15

4456027C00
ref: 15

BAND,FUEL TANK RR

€ 8.50

16

0214206163
ref: 16

SCREW

€ 2.50

17

0932012030
ref: 17

CUSHION

€ 3.50

18

0911808132
ref: 18

BOLT(8X30)

€ 4.50

19

0918008191
ref: 19

SPACER(8.5X12X13.5)

€ 5.00
