REAR BRAKE

RMX250 1999 (X)

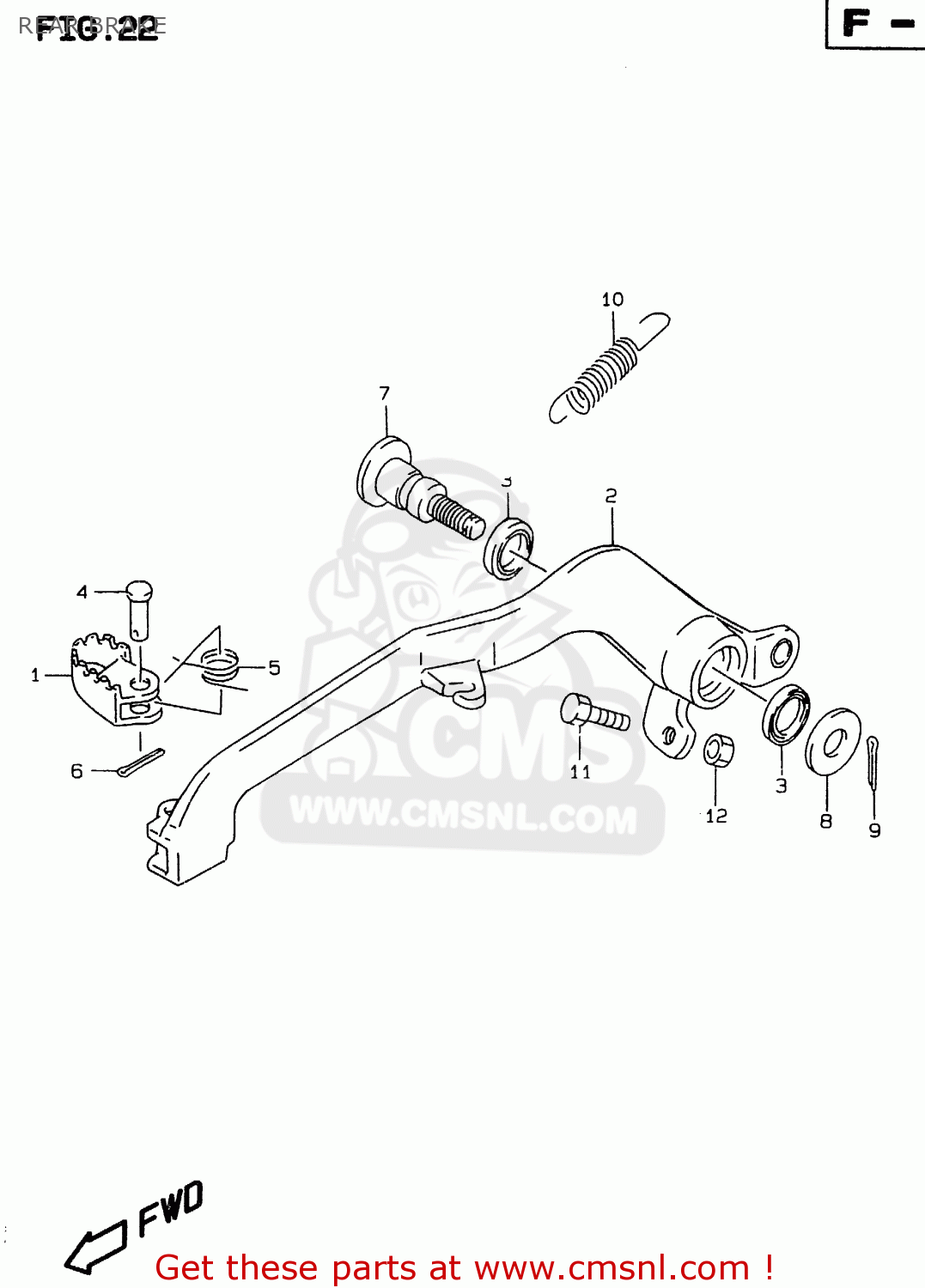

Rear brake diagram RMX250 1999 (X)

REAR BRAKE RMX250 1999 (X)

REAR BRAKE RMX250 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

4311043D00
ref: 1

PEDAL,BRAKE

€ 6.00

2

4312028E10
ref: 2

ARM,BRAKE PEDAL

€ 136.00

3

0928415006
ref: 3

SEAL,OIL(15X21X3)

€ 3.50

4

0920006062
ref: 4

PIN(6X23.5)

€ 2.50

5

0944411006
ref: 5

SPRING

€ 3.50

6

0411120158
ref: 6

PIN

€ 1.50

7

4314227C00
ref: 7

SHAFT,BRAKE PEDAL

€ 15.00

8

0821110261
ref: 8

WASHER

€ 2.50

9

0411120208
ref: 9

PIN 20X20

€ 1.50

10

0944311039
ref: 10

SPRING

€ 21.50

11

0910006009
ref: 11

BOLT(6X23)

€ 1.50

12

0831000063
ref: 12

NUT 6MM

€ 2.00
