ELECTRICAL

RMX250 1999 (X)

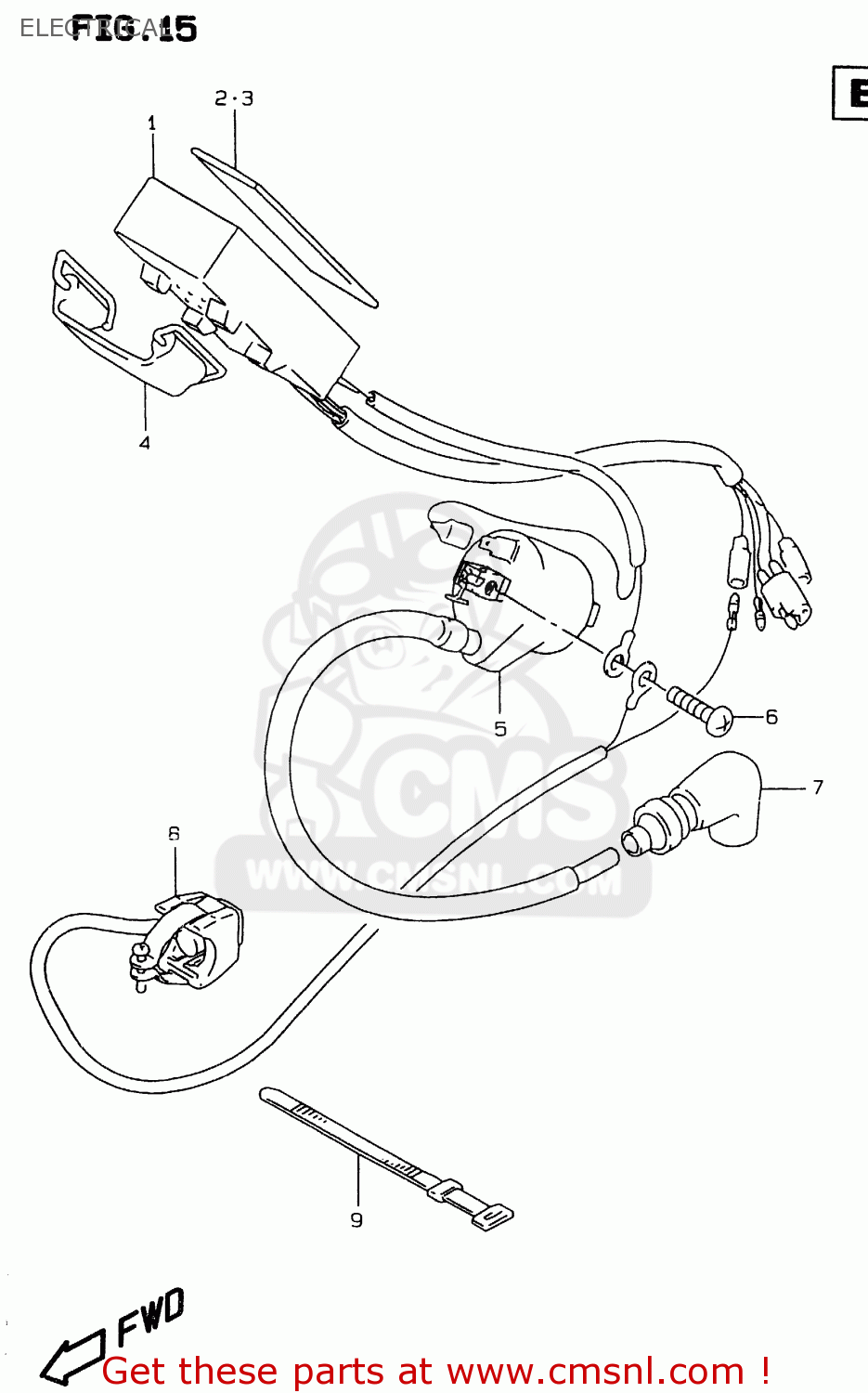

Electrical diagram RMX250 1999 (X)

prices are in EUR

ref

part #

description

quantity

3290005D01
ref: 1

CDI UNIT

€ 447.50

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3294214111
ref: 4

BAND(L:65)

€ 8.00

3341012000
ref: 5

COIL ASSY, IGNITION

€ 0.00

0211206203
ref: 6

SCREW, 6X20

€ 2.00

3351020A01
ref: 7

CAP,SPARK PLUG

€ 23.00

3782014X50
ref: 8

SWITCH ASSY,ENGINE STOP

€ 24.50

0940712402
ref: 9

CLAMP(L:120)

€ 3.00
