Buy Suzuki SV Parts Online


COWLING INSTALLATION PARTS (WITH COWLING)

SV650 2003 (K3) USA (E03)

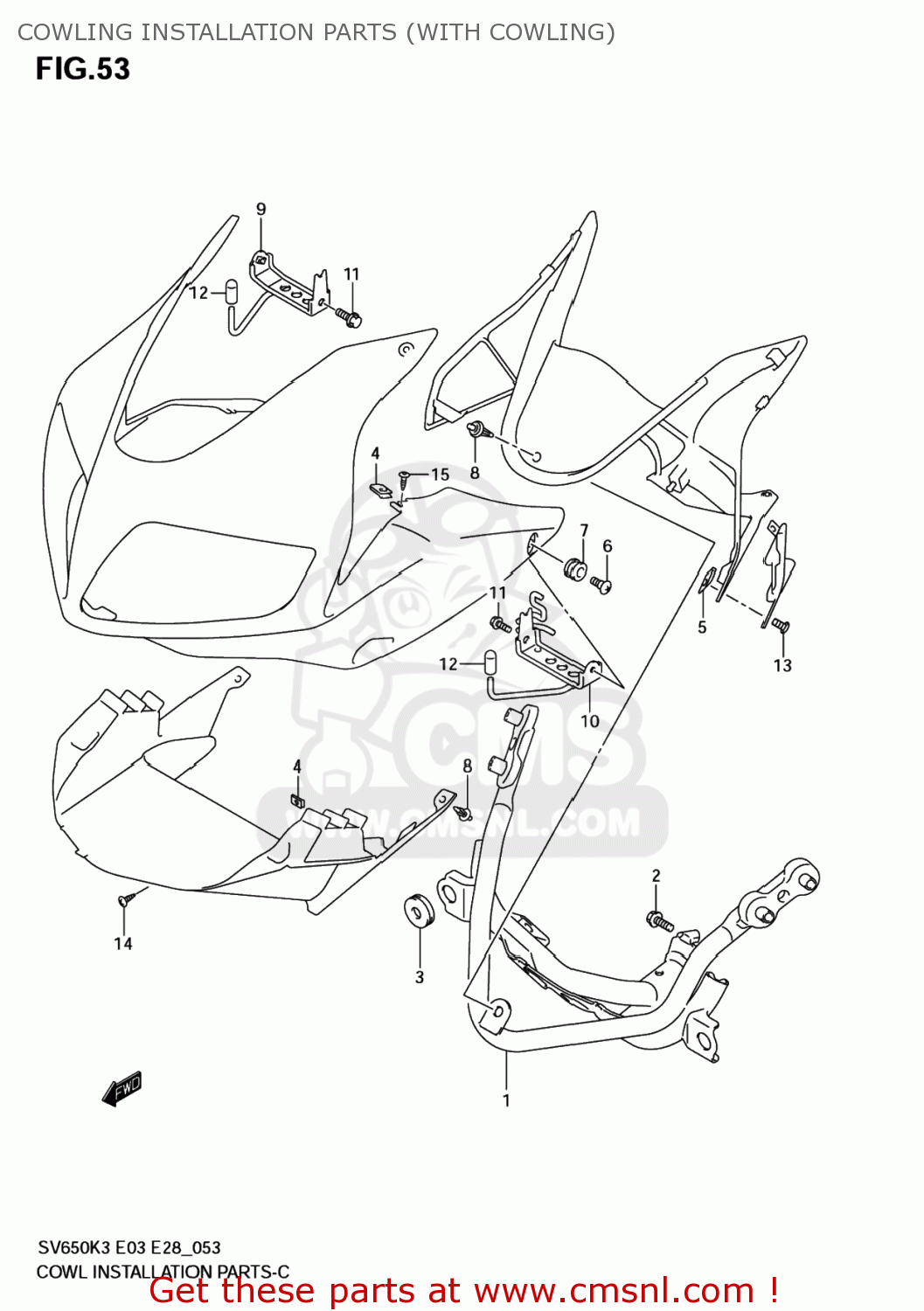

Cowling installation parts (with cowling) diagram SV650 2003 (K3) USA (E03)

COWLING INSTALLATION PARTS (WITH COWLING) SV650 2003 (K3) USA (E03)
COWLING INSTALLATION PARTS (WITH COWLING) SV650 2003 (K3) USA (E03)
COWLING INSTALLATION PARTS (WITH COWLING) SV650 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9451016G00
ref: 1-1
94510-16G01
BRACE COMP,COW
€ 478.00
1-2
9451016G01
ref: 1-2
BRACE,COWLING
9451016G01
€ 478.00
2
0155008203
ref: 2
01550-0820A
BOLT
0155008203
€ 3.00
3
0932008028
ref: 3
CUSHION
0932008028
€ 2.50
4
9448424F00
ref: 4
NUT,COWL
9448424F00
€ 4.00
5
0914805038
ref: 5
NUT
0914805038
€ 2.50
6
0913906126
ref: 6
SCREW(6X20)
0913906126
€ 4.00
7
0932009016
ref: 7
CUSHION
0932009016
€ 2.50
8
09409083085ES
ref: 8
CLIP(BLACK)
09409083085ES
€ 2.00
9
9453016G00
ref: 9
BRACKET,COWLING FITTING,R
9453016G00
€ 16.50
10
9454016G10
ref: 10
BRACKET,COWLING FITTING,L
9454016G10
€ 31.00
11
0155006123
ref: 11
01550-0612A
BOLT
0155006123
€ 2.50
12
0925104003
ref: 12
CAP
€ 2.00
13
0913205053
ref: 13
SCREW(5X16)
0913205053
€ 2.50
14
0324205123
ref: 14
03241-0512A
SCREW
0324205123
€ 1.50
15
0913905064
ref: 15
SCREW(5X13)
0913905064
€ 2.50
