Buy Suzuki SV Parts Online
home
MUFFLER
SV650 2003 (K3) USA (E03)

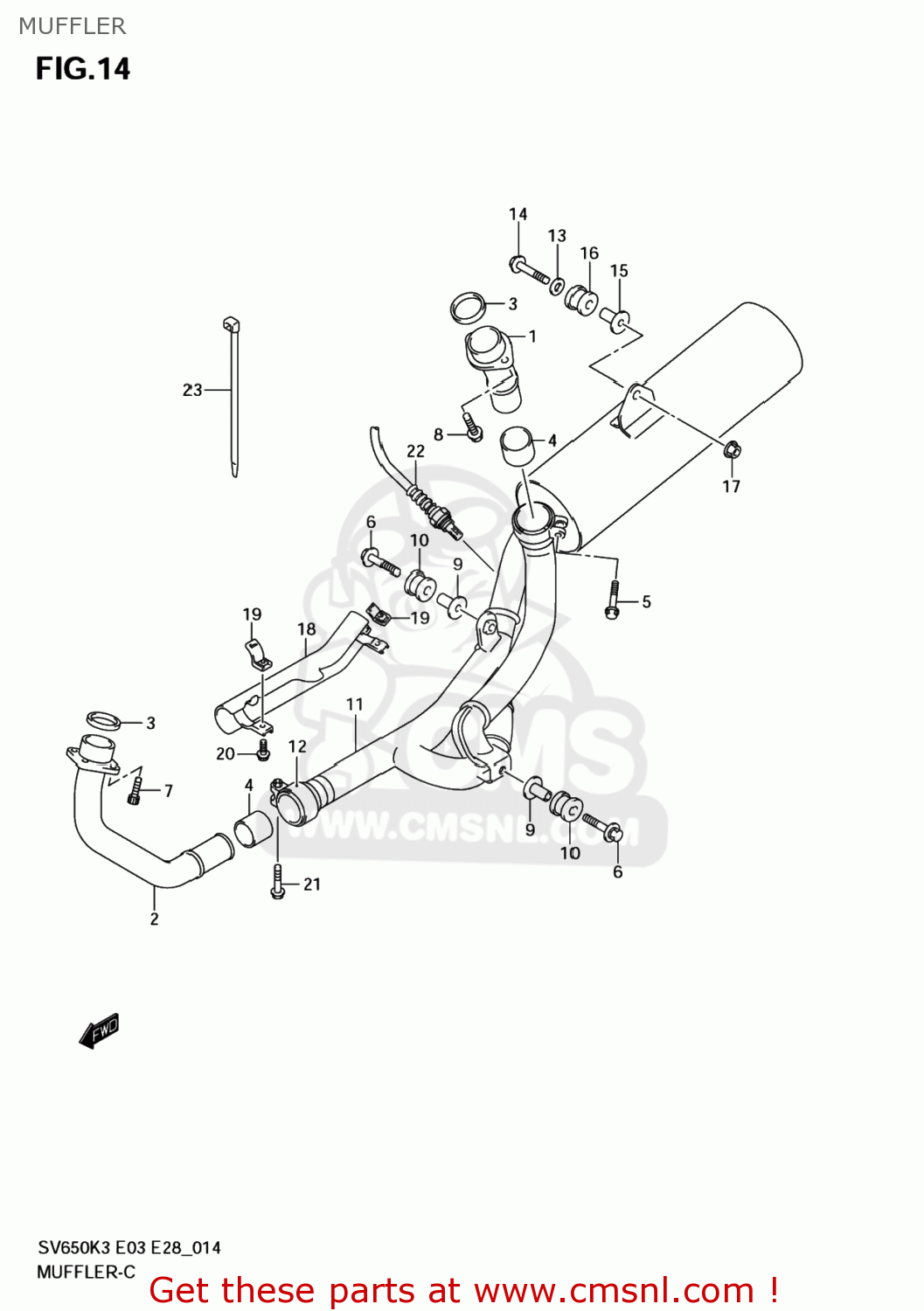

Muffler diagram SV650 2003 (K3) USA (E03)
MUFFLER SV650 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415017G00
ref: 1
PIPE,EXHAUST RR
€ 75.00
2
1416017G00
ref: 2
PIPE,EXHAUST FR
€ 140.50
3
1418122D01
ref: 3
GASKET,EXHAUST PIPE (NAS)
€ 9.00
4
1477132E00
ref: 4
CONNECTOR,MUFFLER
€ 12.50
5
0712008353
ref: 5
07120-0835B
BOLT
€ 4.00
6
0911808152
ref: 6
09118-08152-A05
BOLT 8X45
€ 5.00
7
0910608165
ref: 7
BOLT(8X25)
€ 5.00
8
0713008253
ref: 8
07130-0825B
BOLT
€ 3.50
9
0918008152
ref: 9
SPACER(8.6X12X24.2)
€ 6.00
10
0932012048
ref: 10
CUSHION
€ 5.00
11-1
1430517G13H01
ref: 11-1
MUFFLER
€ 909.50
11-2
1430517G30H01
ref: 11-2
MUFFLER
€ 0.00
11-3
1430517G50H01
ref: 11-3
MUFFLER
€ 0.00
11-4
1430517G40H01
ref: 11-4
MUFFLER
€ 1,527.50
11-4
1430517G40H01
ref: 11-4
MUFFLER
€ 1,527.50
11-5
1430517G70H01
ref: 11-5
MUFFLER
€ 0.00
11-6
1430517G60H01
ref: 11-6
MUFFLER
€ 1,771.00
12
1445919F10
ref: 12
CLAMP,MUFFLER CONNECTOR
€ 10.50
13
0916008142
ref: 13
WASHER(8.5X28X1.5)
€ 2.50
14
0910308358
ref: 14
BOLT(8X45)
€ 3.50
15
0918008152
ref: 15
SPACER(8.6X12X24.2)
€ 6.00
16
0932012048
ref: 16
CUSHION
€ 5.00
17
0836125088
ref: 17
08361-2508A
NUT
€ 2.50
18
1477017G00
ref: 18
COVER,EXHAUST TT
€ 67.50
19
1418517G00
ref: 19
CLAMP,EXHAUST COVER
€ 6.50
20
0712006203
ref: 20
07120-0620B
BOLT
€ 3.50
21
0910308365
ref: 21
BOLT(8X35)
€ 3.50
22
1821317G00
ref: 22
SENSOR,OXYGEN
€ 336.00
23
0940710404
ref: 23
CLAMP(L:100)
€ 4.00
