REAR MASTER CYLINDER (SV650K3)
SV650 2003 (K3) USA (E03)

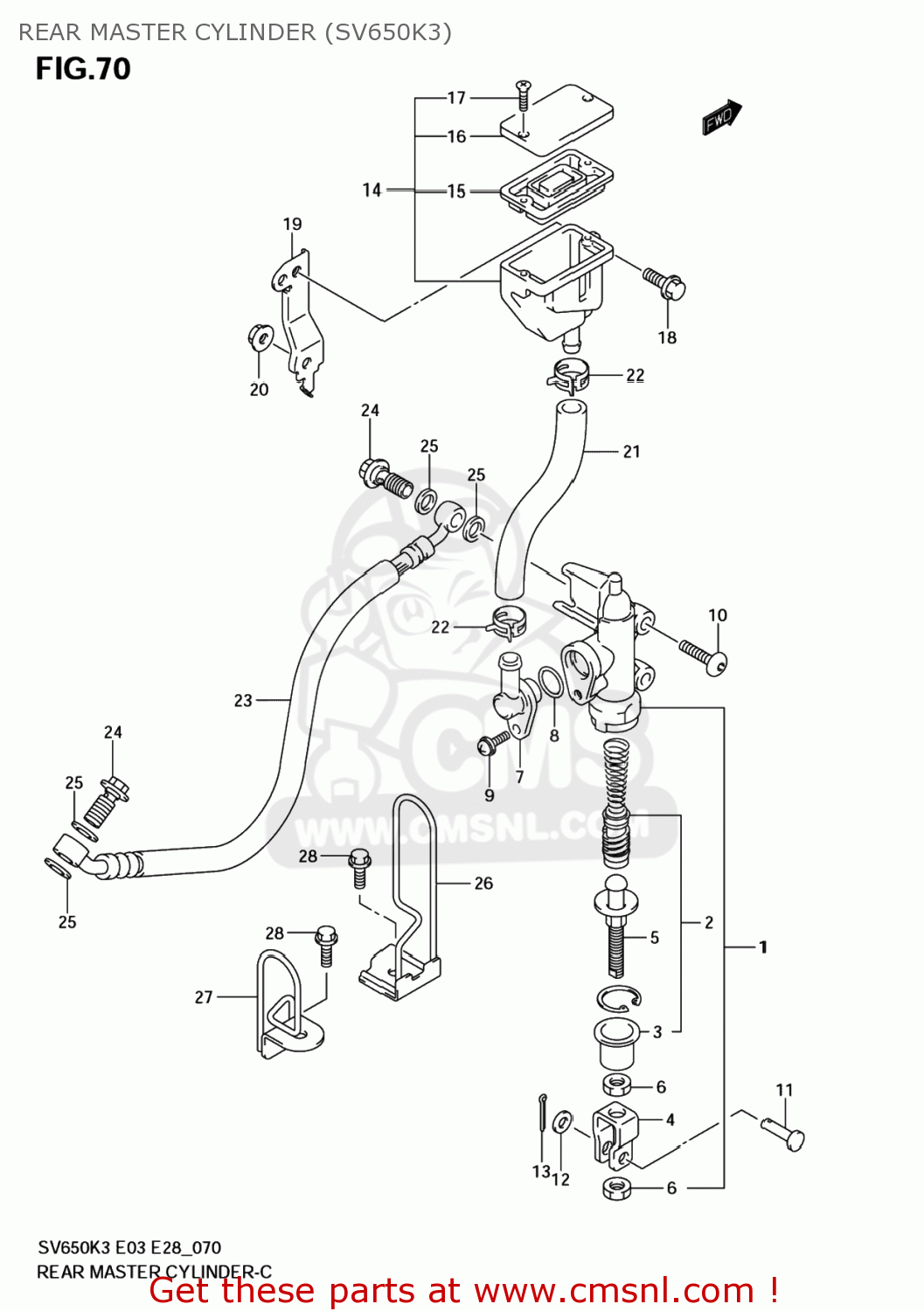

Rear master cylinder (sv650k3) diagram SV650 2003 (K3) USA (E03)
REAR MASTER CYLINDER (SV650K3) SV650 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960016G00
ref: 1
CYLINDER ASSY,RR MASTER
€ 254.50
2
6960034820
ref: 2
PISTON/CUP SET
€ 37.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969227A30
ref: 4
YOKE
€ 12.50
5
6967048B00
ref: 5
ROD,PUSH
€ 20.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
€ 4.50
8
6968634200
ref: 8
O RING
€ 3.50
9
021127412A
ref: 9
SCREW
€ 2.50
10
0913906028
ref: 10
SCREW(6X20)
€ 3.50
11
0920006068
ref: 11
PIN(6X18.2)
€ 5.00
12
083220106A
ref: 12
WASHER
€ 2.00
13
0411120158
ref: 13
04111-2015A
PIN
€ 1.50
14
6974001D02
ref: 14
TANK ASSY,RR RESERVOIR
€ 58.00
15
5966704700
ref: 15
DIAPHRAGM
€ 8.00
16
5966905D00
ref: 16
CAP
€ 13.50
17
6968904A00
ref: 17
SCREW
€ 2.00
18
0910306222
ref: 18
BOLT(6X12)
€ 2.00
19
6975016G00
ref: 19
BRACKET,RR RESERVOIR TANK
€ 13.50
20
0915910111
ref: 20
NUT
€ 3.00
21
6973116G10
ref: 21
HOSE,RR RESERVOIR TANK
€ 11.50
22
0940113417
ref: 22
CLIP
€ 2.50
23
6948016G10
ref: 23
HOSE,RR BRAKE
€ 54.00
24
0936010042
ref: 24
09360-10062
BOLT UNION
€ 5.00
25
0916110009
ref: 25
WASHER(10X15X1.5)
€ 2.00
26
6926016G00
ref: 26
GUIDE,RR BRAKE HOSE NO.1
€ 18.00
27
6927016G00
ref: 27
GUIDE,RR BRAKE HOSE NO.2
€ 13.00
28
0154706163
ref: 28
01547-0616B
BOLT
€ 2.50
